Sub-Zero Wolf M Series

#824974 - Revision C.1 - December, 2019
6-3
Wire Diagrams/Schematics
M Series Wall Oven
M Series Wall Oven
L1
Right Convection Fan
Triac
MDL
Cooling Fan
Oven Lights
Left Convection Fan
Aux DLB
Triac
Triac
Triac
MDL Relay
L2

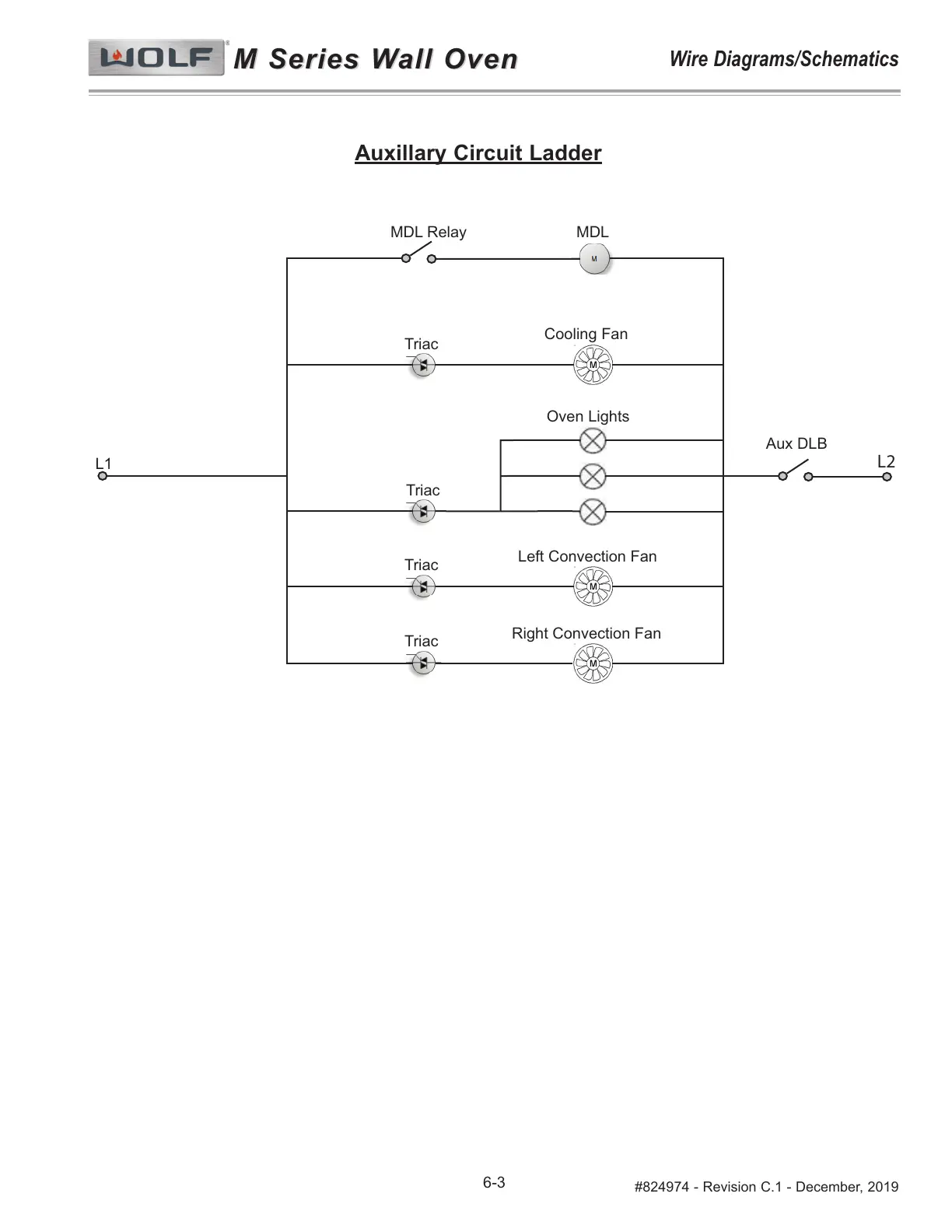

Auxillary Circuit Ladder
