Sub-Zero Wolf M Series - Single Oven Wiring Diagram

Wire Diagrams/Schematics
M Series Wall Oven
M Series Wall Oven
6-4
#824974 - Revision C.1 - December, 2019
 












 







 





















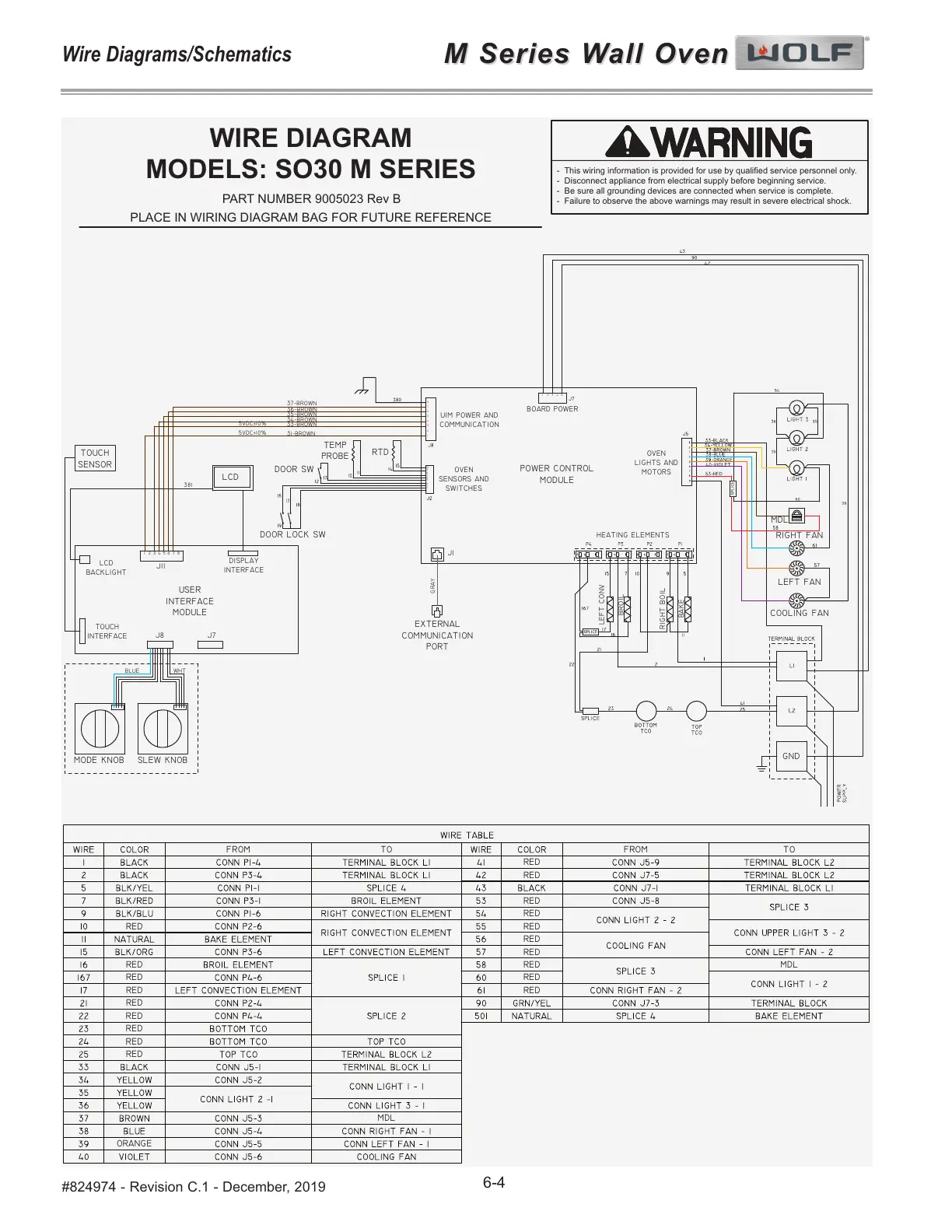

WIRE DIAGRAM
MODELS: SO30 M SERIES
PLACE IN WIRING DIAGRAM BAG FOR FUTURE REFERENCE
PART NUMBER 9005023 Rev B

 

























































- This wiring information is provided for use by qualified service personnel only.
- Disconnect appliance from electrical supply before beginning service.
- Be sure all grounding devices are connected when service is complete.
- Failure to observe the above warnings may result in severe electrical shock.
