Climate control
4-13
– CONTINUED –

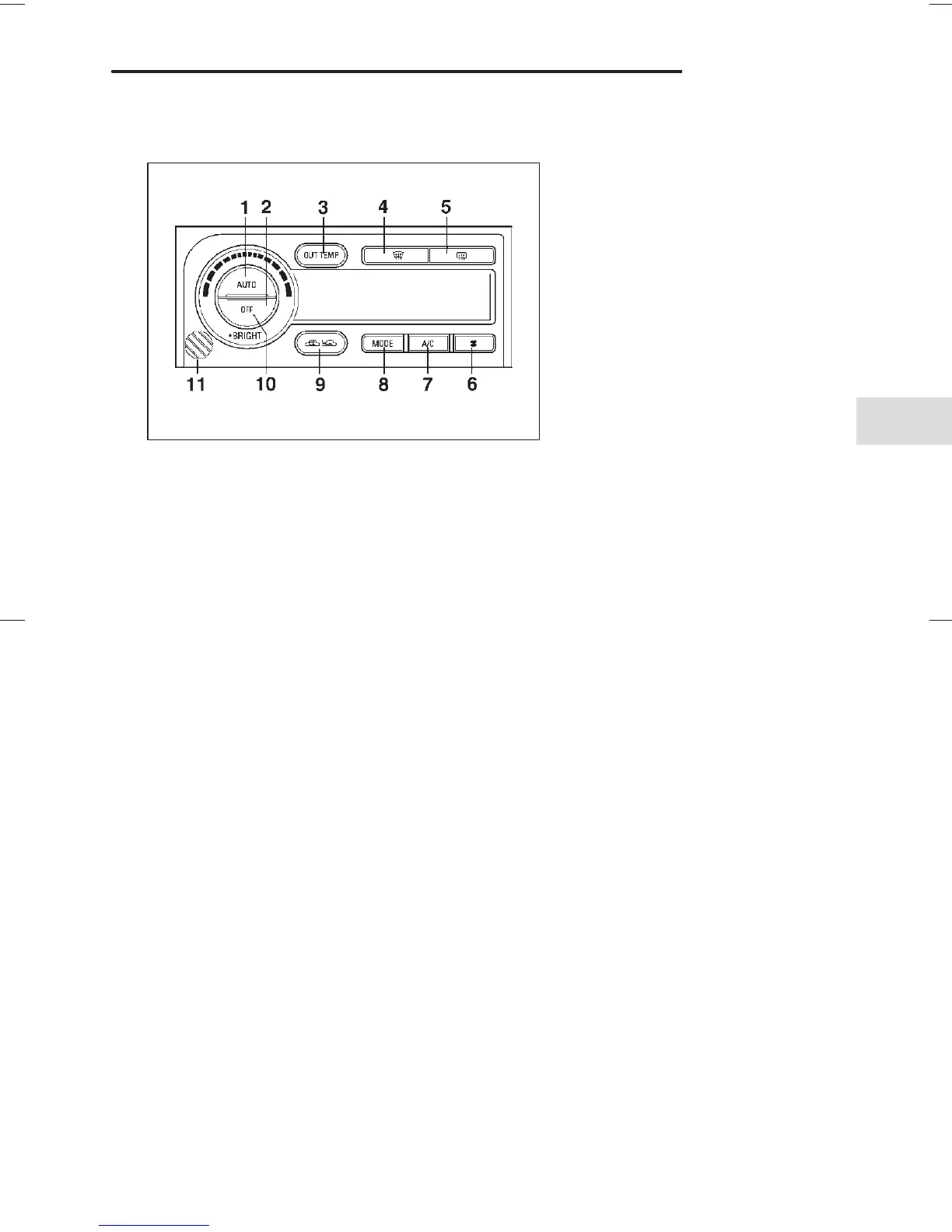

B Control panel
HB4031BB
1. AUTO switch
2. OFF switch/BRIGHT
3. Outside air temperature switch
4. Defroster switch
5. Rear window defogger switch (Refer to the “Rear window defog-
ger” in chapter 3.)
6. Fan speed control switch
7. Air conditioner switch
8. Air flow control switch
9. Air inlet selection switch
10. Temperature control dial
11. In-vehicle temperature sensor.
n AUTO switch
AUTO mode operation:
The Automatic Climate Control system automatically controls the air
temperature of the passenger compartment in the AUTO mode. When
the “AUTO” switch is pressed, the indicator light “AUTO” on the con-
trol panel comes on. In this state, outlet air temperature, fan speed, air
flow distribution, air-inlet control, and air conditioner compressor op-
eration are automatically controlled.
