Subaru 2002 Legacy - Type C Audio Set (if equipped)

Legacy U.S.A..(ENG.)A2290BE–A
5-20
Type C audio set (if equipped)
The radio will operate only when the ignition switch is in the “ACC” or
“ON” position.

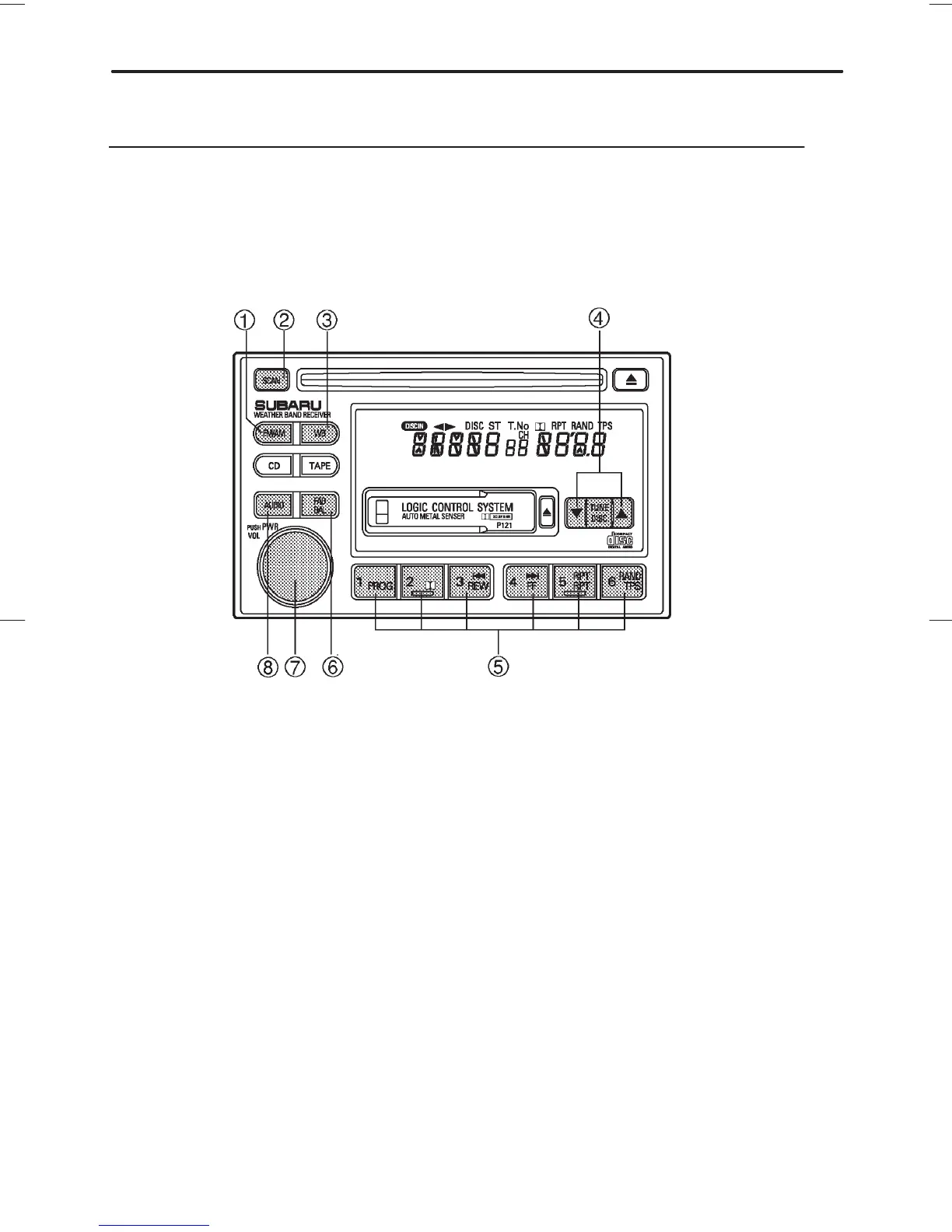

Radio operation
HB5042BB
1 FM/AM selection button
2 SCAN button
3 WB (weather band) button
4 Tuning buttons
5 Preset buttons
6 Fader/Balance selection
button
7 Power switch, Volume control,
Bass/Middle/Treble control and
Fader/Balance control dial
8 AUDIO (audio mode) button
B Power switch and volume/bass/treble/fader/balance control
(PWR/VOL)
The dial
7 is used for both power (ON/OFF) and volume control. The
radio is turned ON and OFF by pushing the dial and the volume is
controlled by turning the dial.
