J Combination meter
B Overview

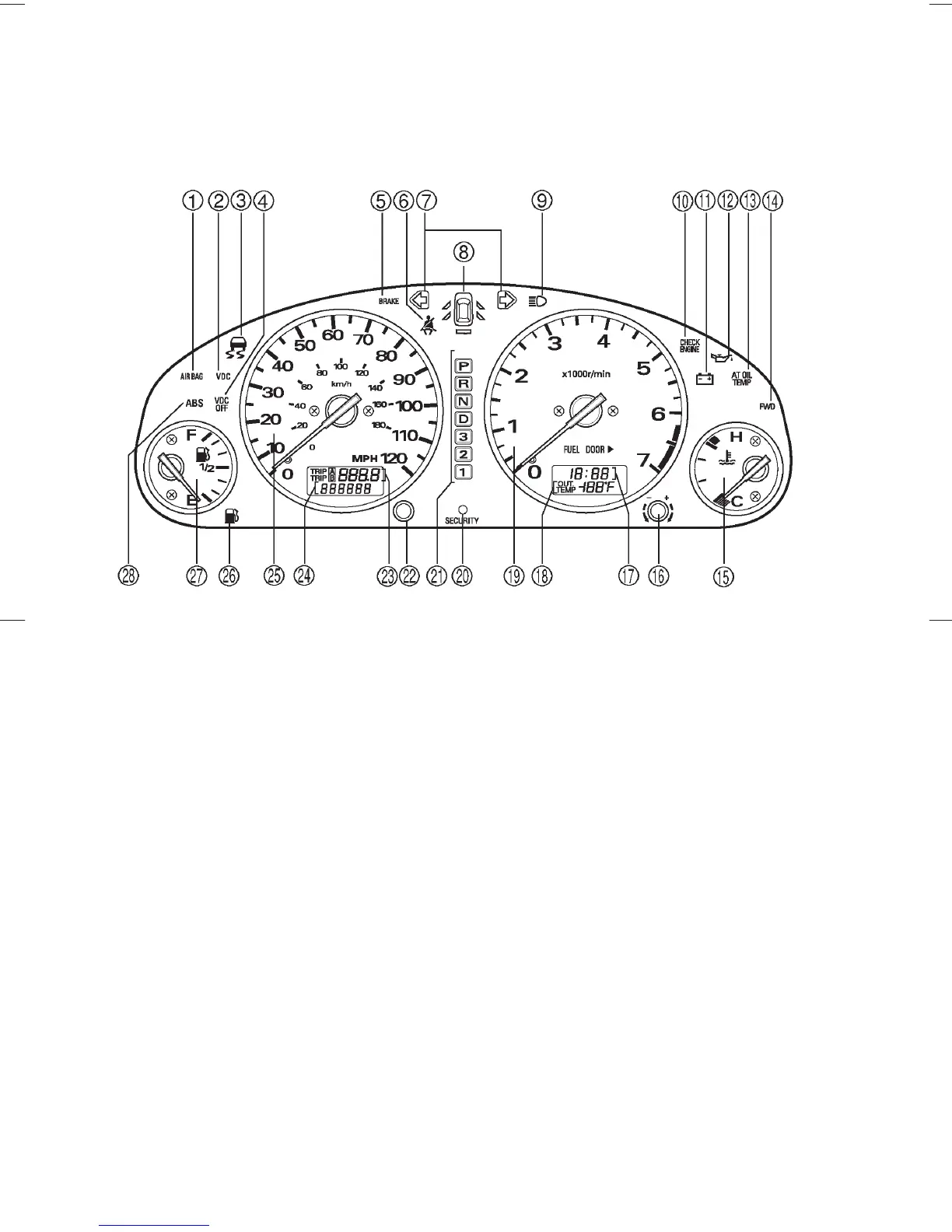

HBF033BB
1 SRS airbag system warning light
(page 3-11)
2 VDC warning light (page 3-15)
3 VDC operation indicator light
(page 3-17)
4 VDC OFF indicator light
(page 3-18)
5 Brake system warning light
(page 3-16)
6 Seatbelt warning light (page 3-11)
7 Turn signal indicator light (page
3-18)
8 Door open warning light
(page 3-17)
9 High beam indicator light
(page 3-19)
Q CHECK ENGINE warning light/
Malfunction indicator lamp
(page 3-12)
W Charge warning light (page 3-13)
E OIL pressure warning light
(page 3-13)
R AT OIL temperature warning light
(page 3-14)
T Front-wheel drive warning light
(page 3-17)
Y Temperature gauge (page 3-10)
U Clock setting knob (page 3-19)
I Clock (page 3-19)
O Outside temperature indicator
(page 3-9)
P Tachometer (page 3-9)
A Security system indicator lamp
(page 3-18)
S Shift position indicator (page 3-18)
D Trip meter A/B selection and trip
meter reset knob (page 3-7)
F Trip meter (page 3-7)
G Odometer (page 3-7)
H Speedometer (page 3-7)
J Low fuel warning light (page 3-17)
K Fuel gauge (page 3-9)
L ABS warning light (page 3-14)
