Subaru 2002 Legacy - Fuse Panel Located in the Engine Compartment; 2.5 Liter Models

Legacy U.S.A..(ENG.)A2290BE–A
12-10

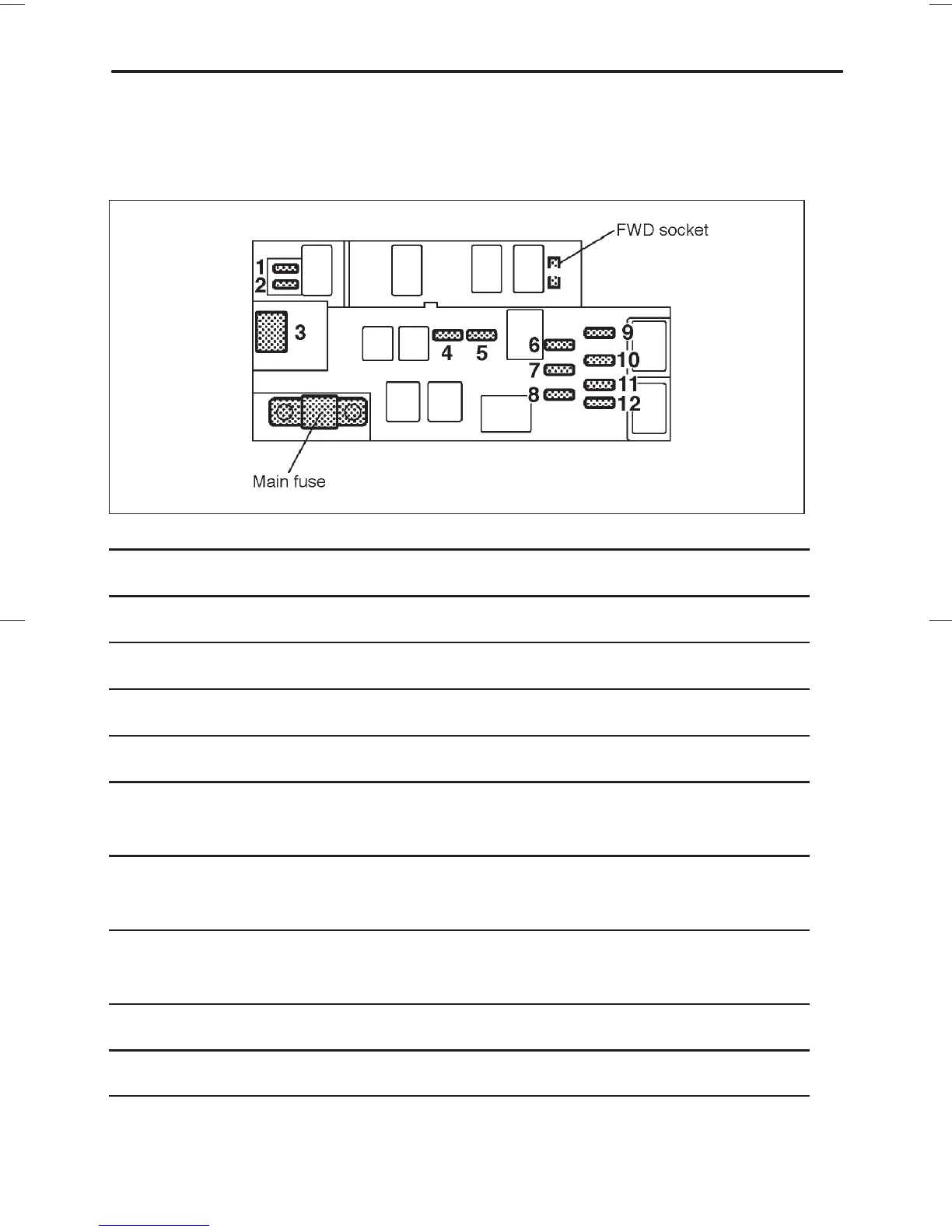

J Fuse panel located in the engine compartment
B 2.5 liter models
HBC003BB
Fuse panel Fuse rating Circuit
1 20A D Radiator cooling fan (Main)
2 20A D Radiator cooling fan (Sub)
3 50A D ABS motor
4 20A D Rear window defogger
5 15A D Hazard warning flasher
D Horn
6 15A D Meter
D SRS airbag system warning light
7 10A D Automatic transmission control unit
D ABS UNIT
8 10A D Alternator
9 15A D Headlight (right side)
