Subaru 2002 Legacy - 3.0 Liter Models

Legacy U.S.A..(ENG.)A2290BE–A
12-12
B 3.0 liter models
HBC004BC

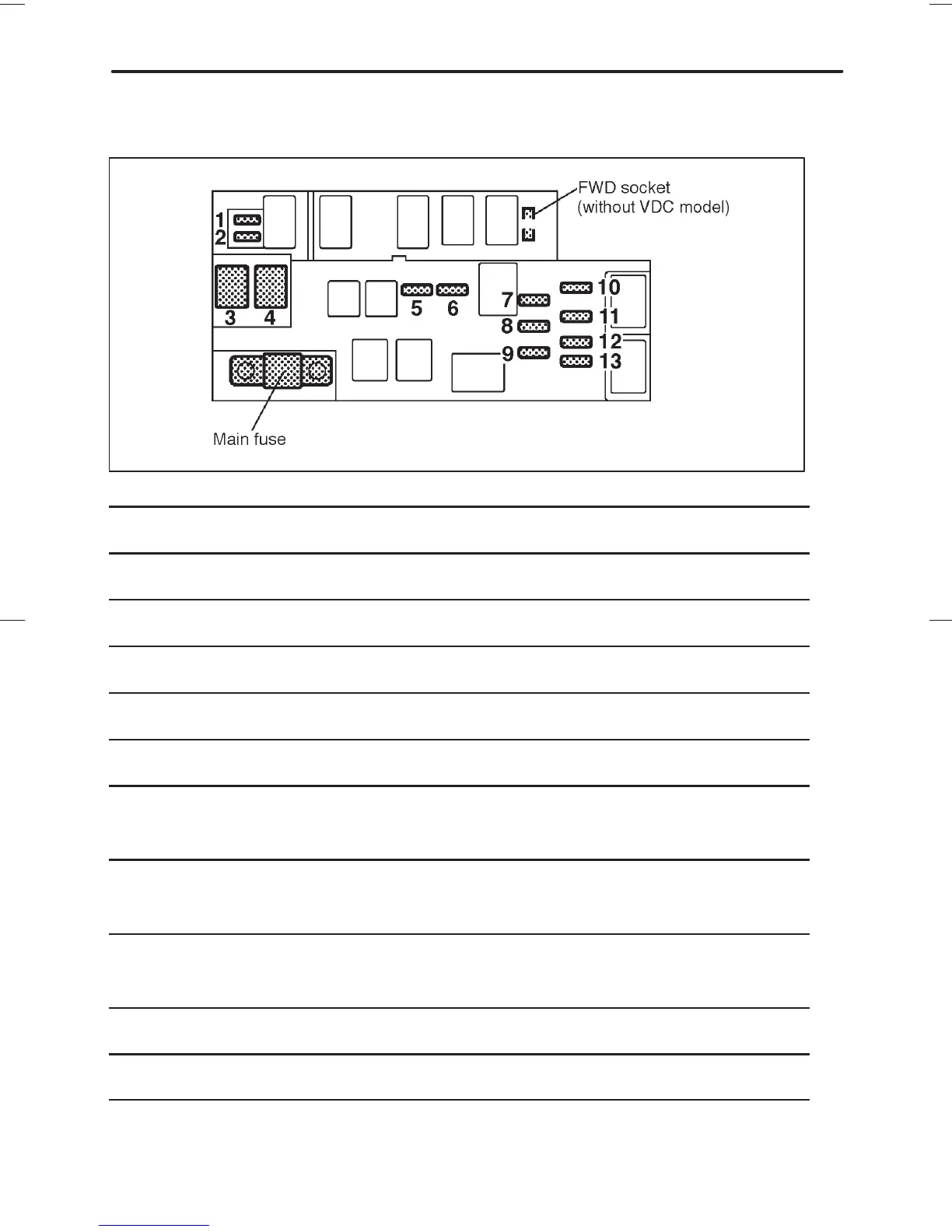

Fuse panel Fuse rating Circuit
1 30A D Radiator cooling fan (Main)
2 30A D Radiator cooling fan (Sub)
3 50A D ABS (VDC) motor
4 30A D McIntosh audio amp (if equipped)
5 20A D Rear window defogger
6 15A D Hazard warning flasher
D Horn
7 15A D Meter
D SRS airbag system warning light
8 10A D Automatic transmission control unit
D ABS UNIT
9 10A D Alternator
10 15A D Headlight (right side)
