– 30 –

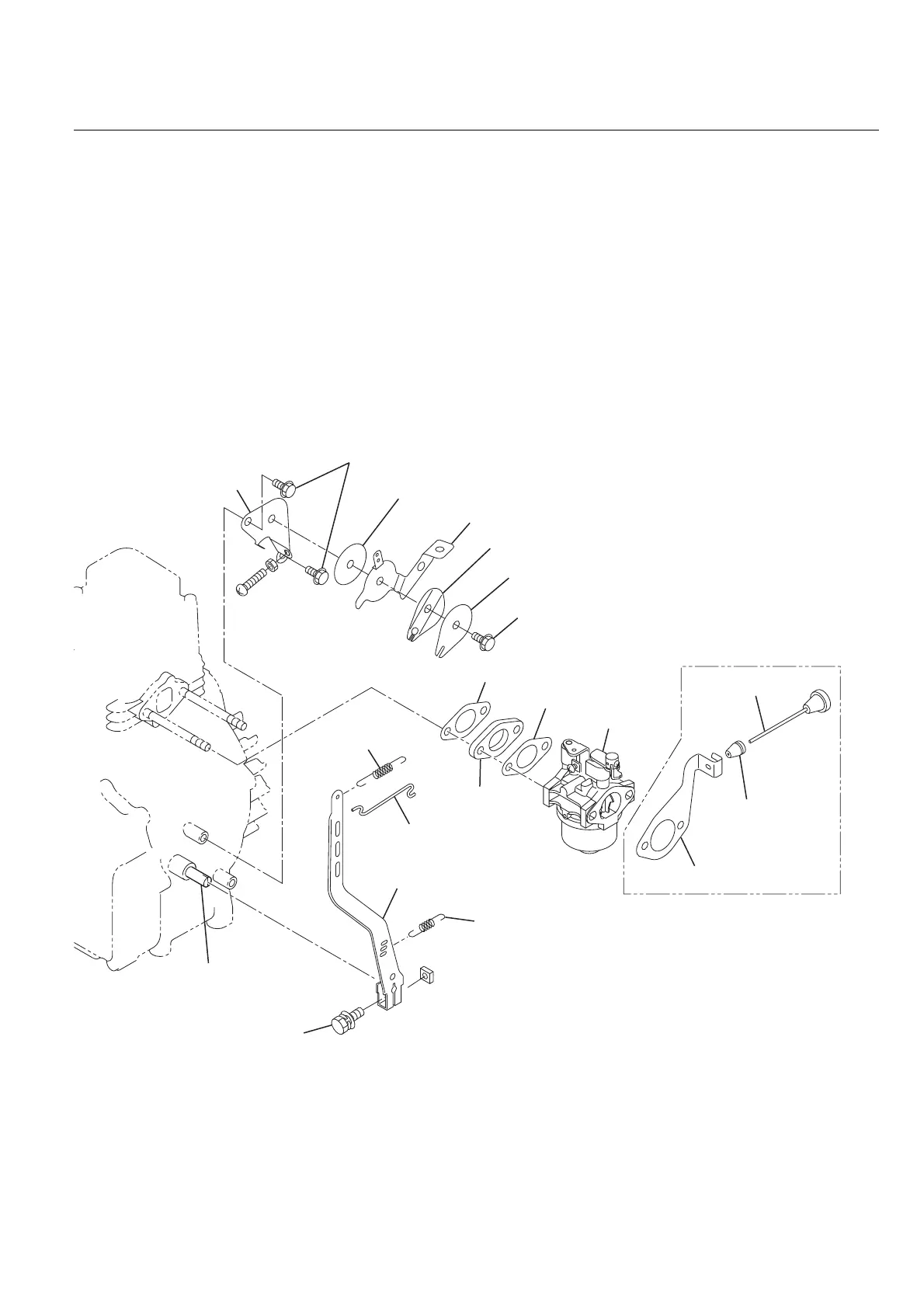

2-3-15 GOVERNOR, SPEED CONTROL SYSTEM AND CARBURETOR
(1) Install governor lever to governor shaft, then tighten the locking bolt temporarily.
(2) Install base plate to crankcase.
(3) Install speed control lever, washer, bolt, etc. to base plate as shown in illustration.
(4) Hook governor spring to proper holes of governor lever and speed control lever.
(5) Install insulator and gaskets for carburetor to cylinder head.
(6) Install carburetor to cylinder head hooking governor rod to governor lever and throttle lever of
carburetor. Hook rod spring over governor rod.
For cyclone air cleaner
GROMMET
M6 x 8 FLANGE BOLT : 2 pcs.
M6 x 14 FLANGE BOLT : 1 pc.
M6 x 25 BOLT AND
WASHER AY : 1 pc.
GOVERNOR ROD
SPEED CONTROL LEVER AY
GOVERNOR SPRING
ROD SPRING
FRICTION WASHER
WASHER
STOP PLATE
CHOKE KNOB
CHOKE BRACKET
GASKET
(
INSULATOR
)
GASKET
(
INTAKE
)
INSULATOR
CARBURETOR
BASE PLATE CP
GOVERNOR LEVER
GOVERNOR SHAFT
