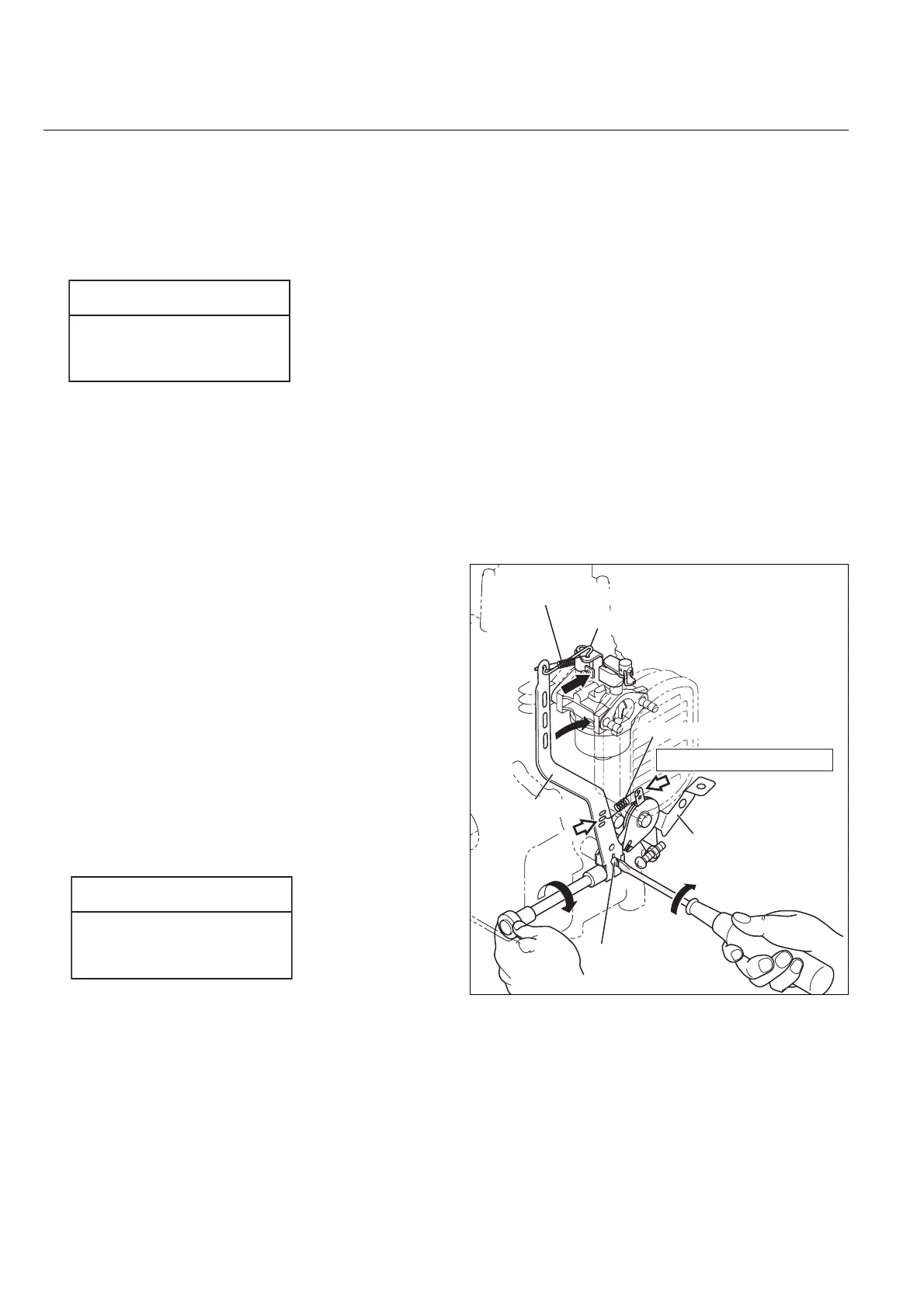

2-3-17 ADJUST GOVERNOR SYSTEM
(1) Turn the speed control lever all the way toward
the high speed position and fix it by tightening
self lock nut.
Check that the governor lever is pulled by the
governor spring and carburetor throttle valve is
fully open.
(2) Turn the governor shaft clockwise all the way
using a screw driver, and tighten lock bolt to
secure the lever on the shaft.
M6 x 25 mm bolt and washer : 1 pc.
2-3-16 AIR CLEANER
(1) Install the air cleaner gasket and the cleaner base
and tighten them.
M6 flange nut : 2 pcs.
(2) Install the element and the cleaner case.
(3) Then connect breather pipe from breather cover to
cleaner base.
