M6 x 16 BOLT AND
WASHER AY : 2 pcs.
(Apply TB#1316)
MUFFLER
M8 x 16 BOLT AND
WASHER AY : 2 pcs.
M8 FLANGE NUT : 1 pc.
CYLINDER
BAFFLE
GASKET
(
MUFFLER
)
M6 x 8 FLANGE
BOLT : 1 pc.
GROMMET

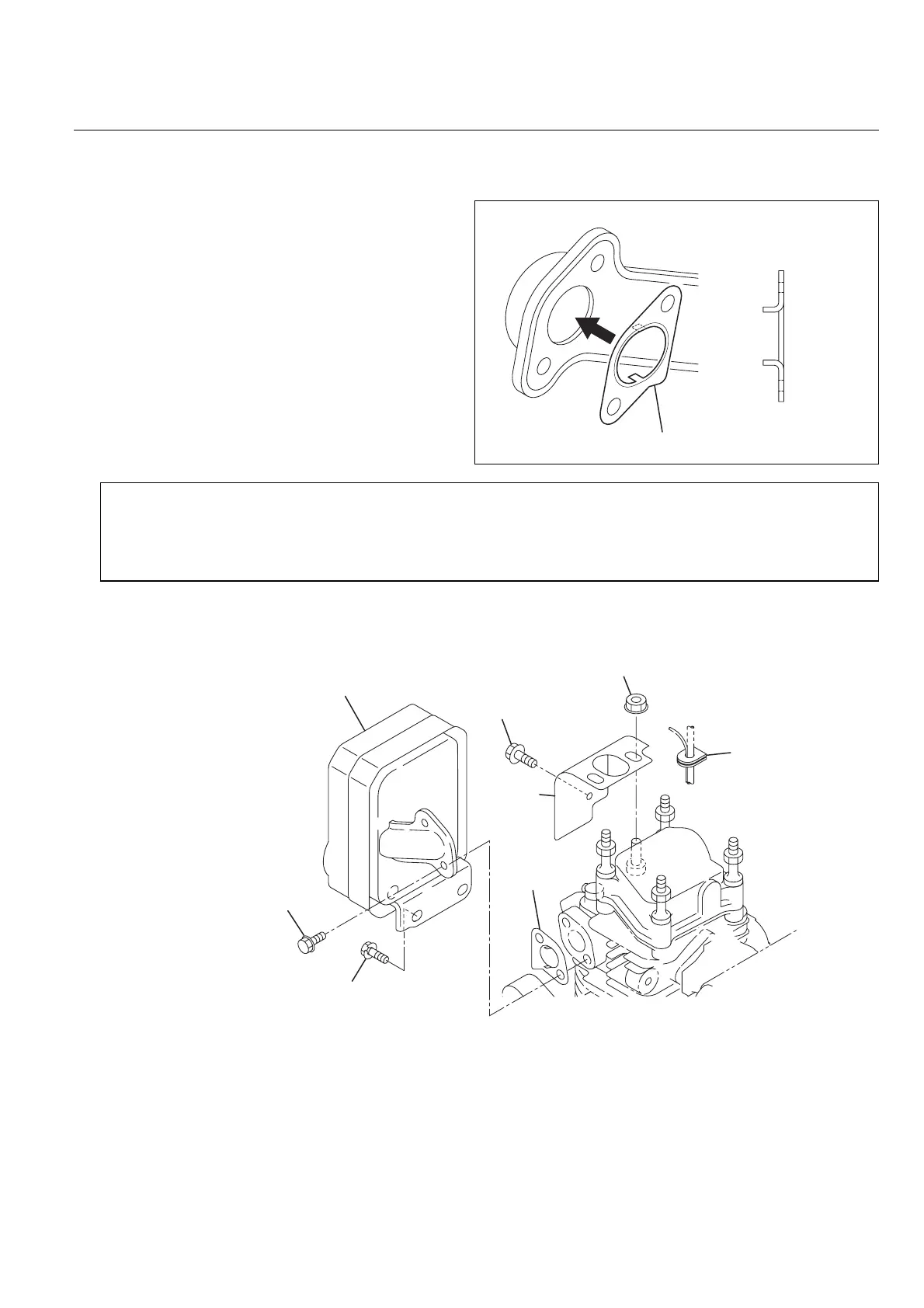

2-3-18 CYLINDER BAFFLE AND MUFFLER (step 1; temporarily fitting)
(1) Attach gasket with the crows faced inside of
muffler.
(2) Temporarily attach cylinder baffle and muffler
onto cylinder head.
(3) Fit grommet, holding ignition code and stop
switch wiring, into the cutting portion of
cylinder baffle.
Note:
In order to install blower housing in position, do not tighten bolts and nuts for cylinder
baffle and muffler securely.
GASKET
MUFFLER
SIDE
CYLINDER
HEAD SIDE
