– 3 –
Step Parts to remove Remarks and procedures Fasteners
4
Fuel tank (1) Close the fuel cock.
(2)
Disconnect fuel pipe between carburetor
and fuel cock from carburetor.
(3) Remove the fuel tank from the fuel tank
bracket.
M6 x 12 : 4 pcs.
10 mm box spanner
5
Fuel tank bracket
Fuel tank bracket 2
(1) Remove the fuel tank bracket from the
cylinder head and fuel tank bracket 2.
(2) Remove the fuel tank bracket 2.
M6 flange nut : 4 pcs.
M6 x 12 : 2 pcs.
M8 flange nut : 1 pc.
M8 washer : 1 pc.
10·12 mm spanner·box wrench

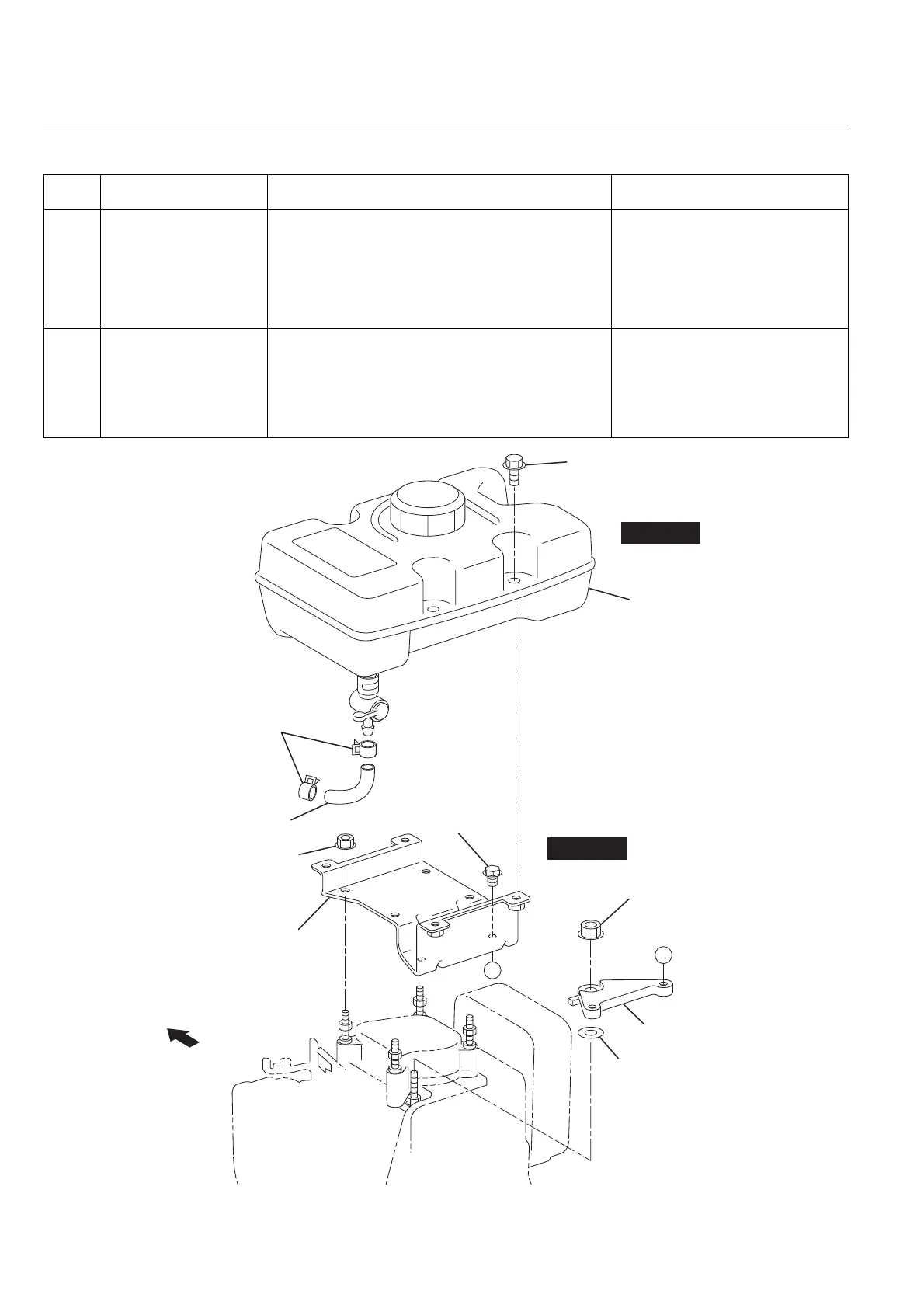

A
A
WASHER : 1 pc.
FUEL PIPE : 1 pc.
CLAMP : 2 pcs.
P.T.O. shaft side
M6 x 12 FLANGE BOLT : 4 pcs.
M6 x 12
FLANGE BOLT : 2 pcs.
M8 FLANGE NUT : 1 pc.
M6 FLANGE NUT : 4 pcs.
FUEL TANK
FUEL TANK BRACKET 2
FUEL TANK BRACKET
STEP 5
STEP 4
