– 4 –
A
A
MUFFLER
M6 x 16 BOLT AND WASHER AY : 2 pcs.
M8 x 16 BOLT AND WASHER AY : 2 pcs.
Do not touch
the flange bolts.
M8 FLANGE NUT : 1 pc.
CYLINDER BAFFLE

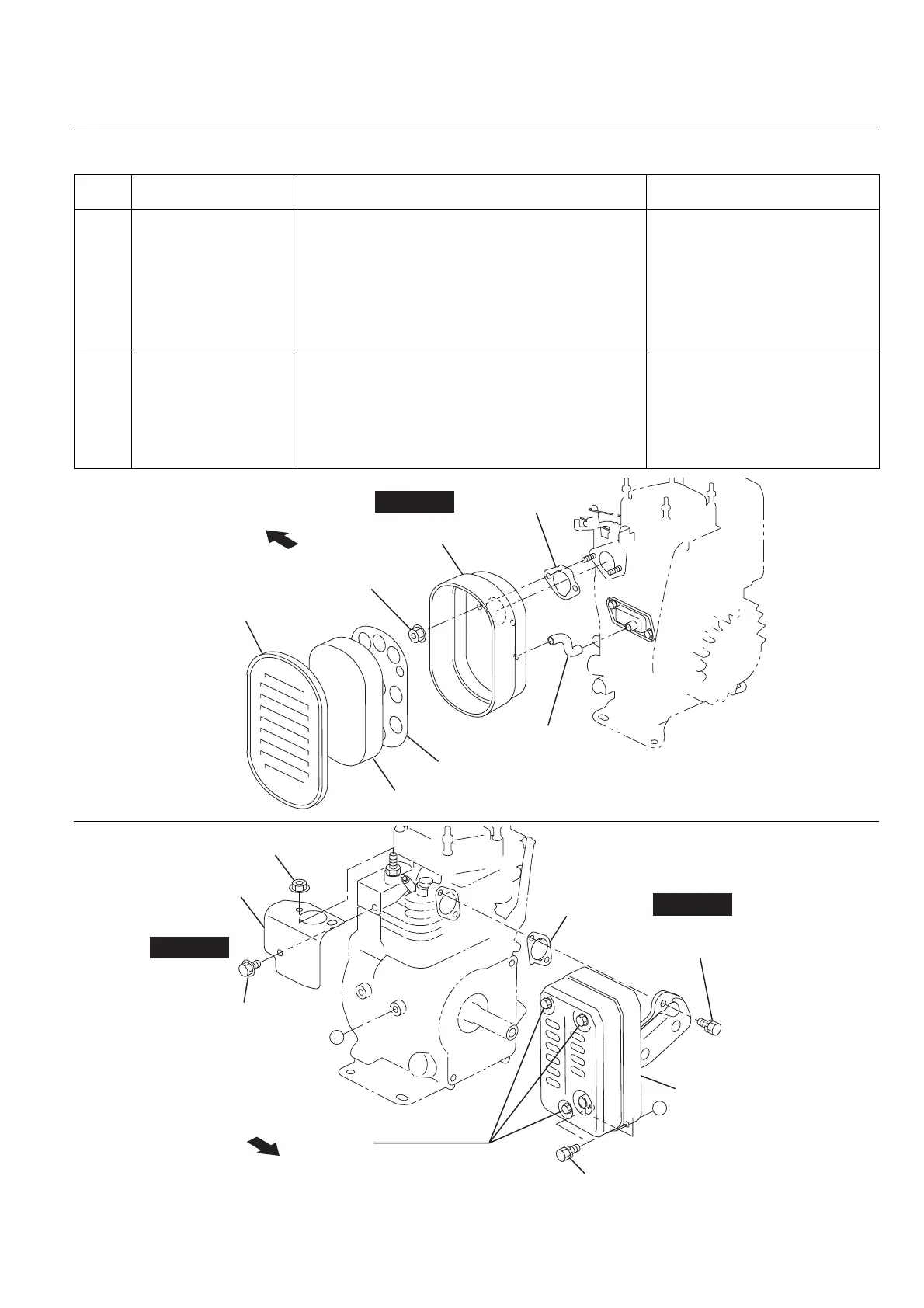

STEP 7
STEP 7
GASKET
(
MUFFLER
)
P.T.O. shaft side
M6 x 8 FLANGE BOLT : 1 pc.
RETAINER
CLEANER COVER
BREATHER PIPE
M6 FLANGE NUT : 2 PCS.
CLEANER CASE
GASKET
ELEMENT
STEP 6
P.T.O. shaft side
Step Parts to remove Remarks and procedures Fasteners
7
Muffler and
cylinder baffle
Remove spark plug cap first from
spark plug, muffler and cylinder baffle.
Be careful not to lose muffler gasket.
M8 bolt and washer : 2 pcs.
M6 x 16 : 2 pcs.
M8 flange nut : 1 pc.
M6 x 8 : 1 pc.
10·12 mm spanner·box wrench
6
Air cleaner (1) Detach cleaner cover, and take out
element and retainer.
(2) Remove breather pipe from cleaner
case and breather cover.
(3) Remove cleaner case.
Be careful not to lose air cleaner gasket.
M6 flange nut : 2 pcs.
10 mm box wrench
