– 6 –
Step Parts to remove Remarks and procedures Fasteners
11
Ignition coil Remove ignition coil from crankcase. M6 x 25 : 2 pcs.
10 mm box spanner
12
Flywheel (1) Remove the starter pulley from flywheel.
Place socket wrench on flywheel fastening
nut and strike tip of the lever with hammer.
(2) Remove the cooling blower.
(3) Tap on flywheel end of crankshaft using
aluminum bar to remove flywheel.
(4) Remove the key from crankshaft.
M14 nut, springwasher : 1 pc.
M6 x 12 : 4 pcs.
19 mm socket wrench
10 mm box spanner
13
Spark plug Remove spark plug from cylinder head.
19 mm plug wrench
SPARK PLUG
SPARK PLUG CAP

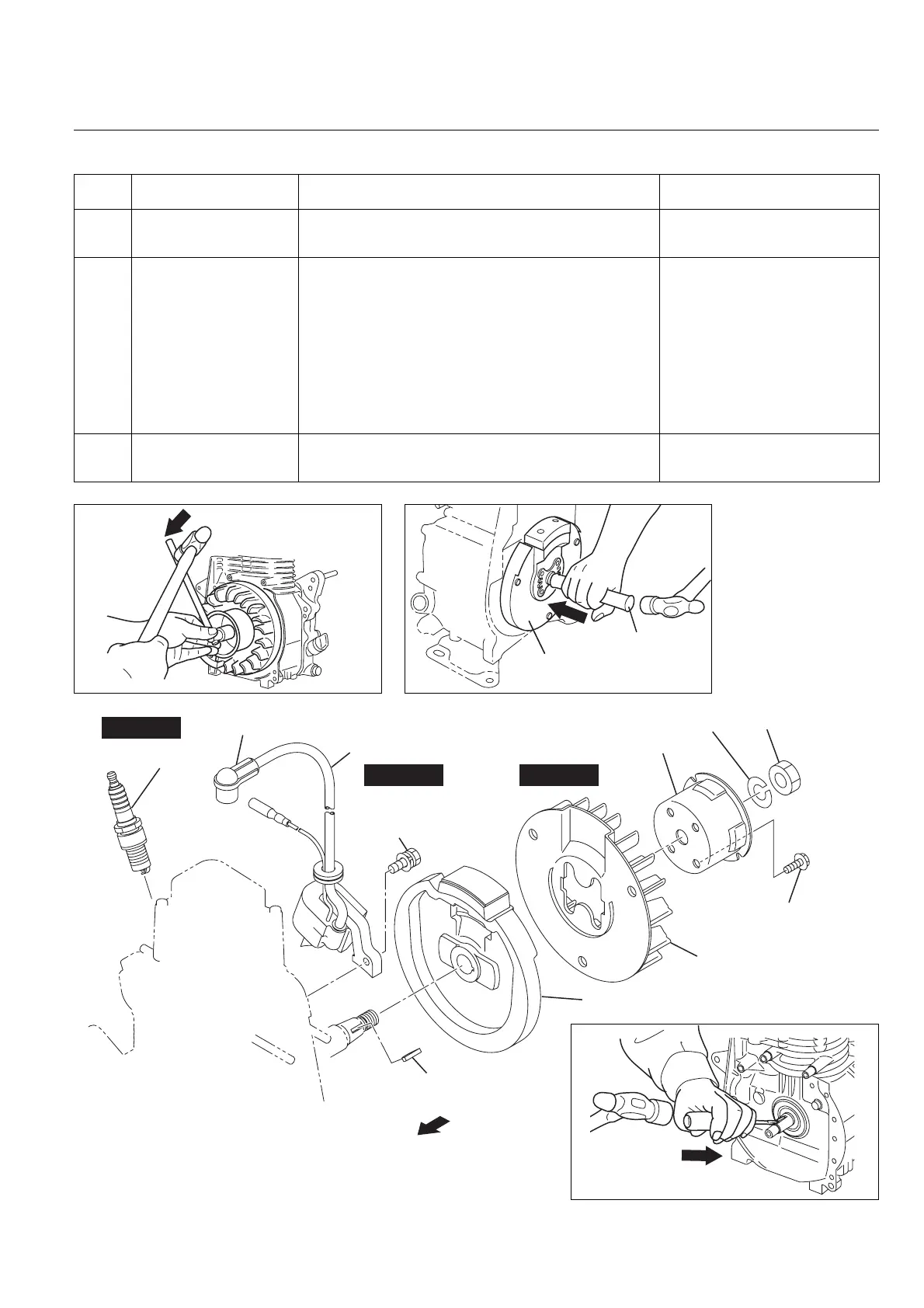

FLYWHEEL CP
COOLING BLOWER
WOODRUFF KEY
STARTING PULLEY
M6 x 12 FLANGE
BOLT : 4 pcs.
M14 SPRING WASHER : 1 pc.
M14 NUT : 1 pc.
M6 x 25 BOLT AND
WASHER AY : 2 pcs.
IGNITION COIL CP
STEP 11
STEP 13
STEP 12
ALUMINUM BAR
FLYWHEEL
P.T.O. shaft side
