5. DISASSEMBLY AND REASSEMBLY
5-1 PREPARATIONS AND PRECAUTIONS
1)
When disassembling the engine, memorize the location of each part so that you can reassemble the engine
correctly If necessary, attach identification tags with the required assembly information to the parts
2) Store groups of parts in separate boxes This will make reassembly easier
3) To prevent parts from being mislaid, keep each group provisionally assembled after removing the parts
from the engine
4) Handle the disassembled parts with the utmost care Clean them with cleaning oil if necessary
5) Use the correct tools in the correct way when disassembling and reassembling the engine
5-2 SPECIAL TOOLS
Tool name Use
Commercially available product Flywheel puller For pulling off the ywheel
Commercially available product Piston ring plier
For removing and
installing piston rings
Commercially available product
Piston ring
compresser
For holding piston rings
Commercially available product Chain wrench For locking the ywheel

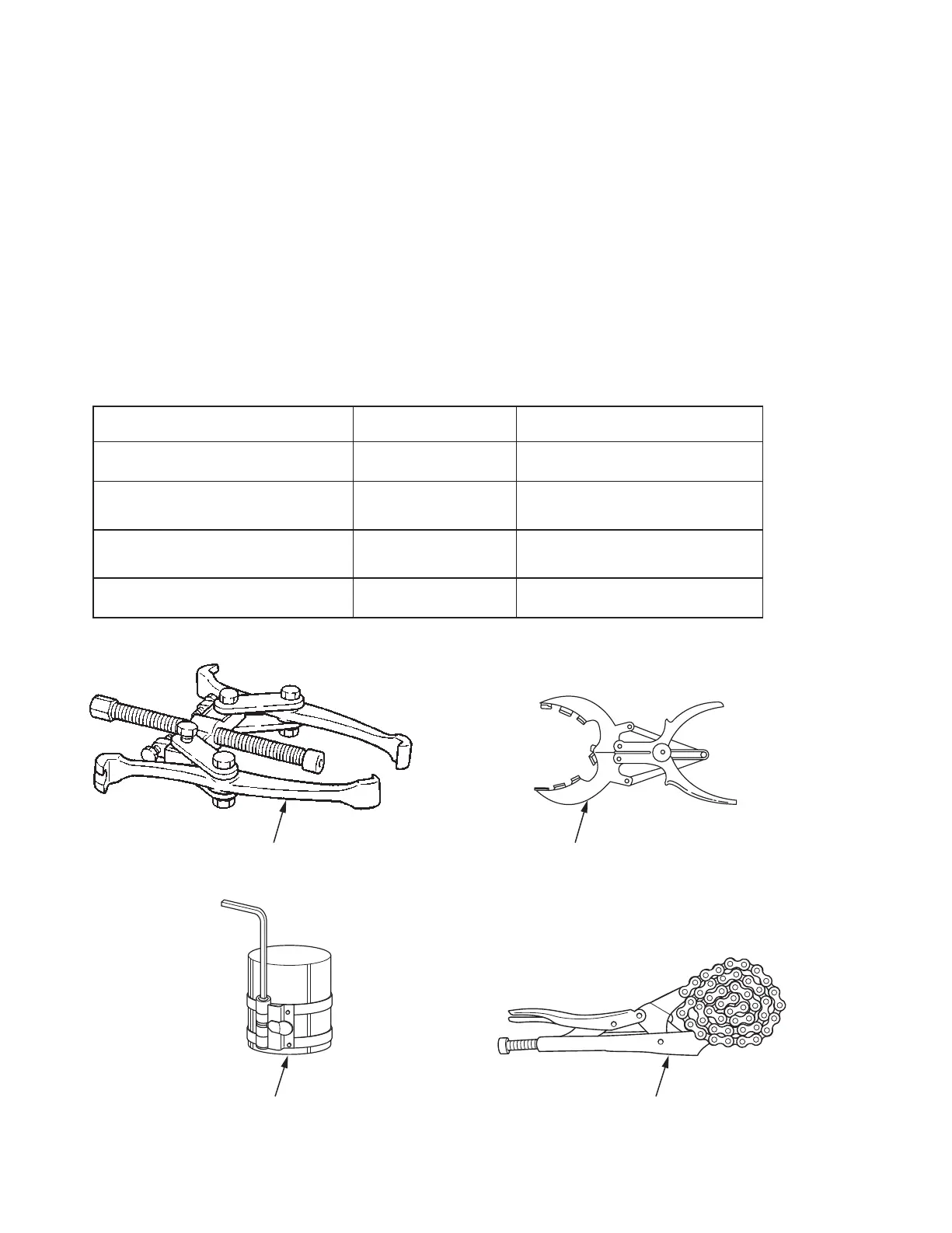

FLYWHEEL PULLER PISTON RING PLIER
CHAIN WRENCHPISTON RING COMPRESSER
