25
-
Step Parts to remove Remarks and procedures Fasteners
21

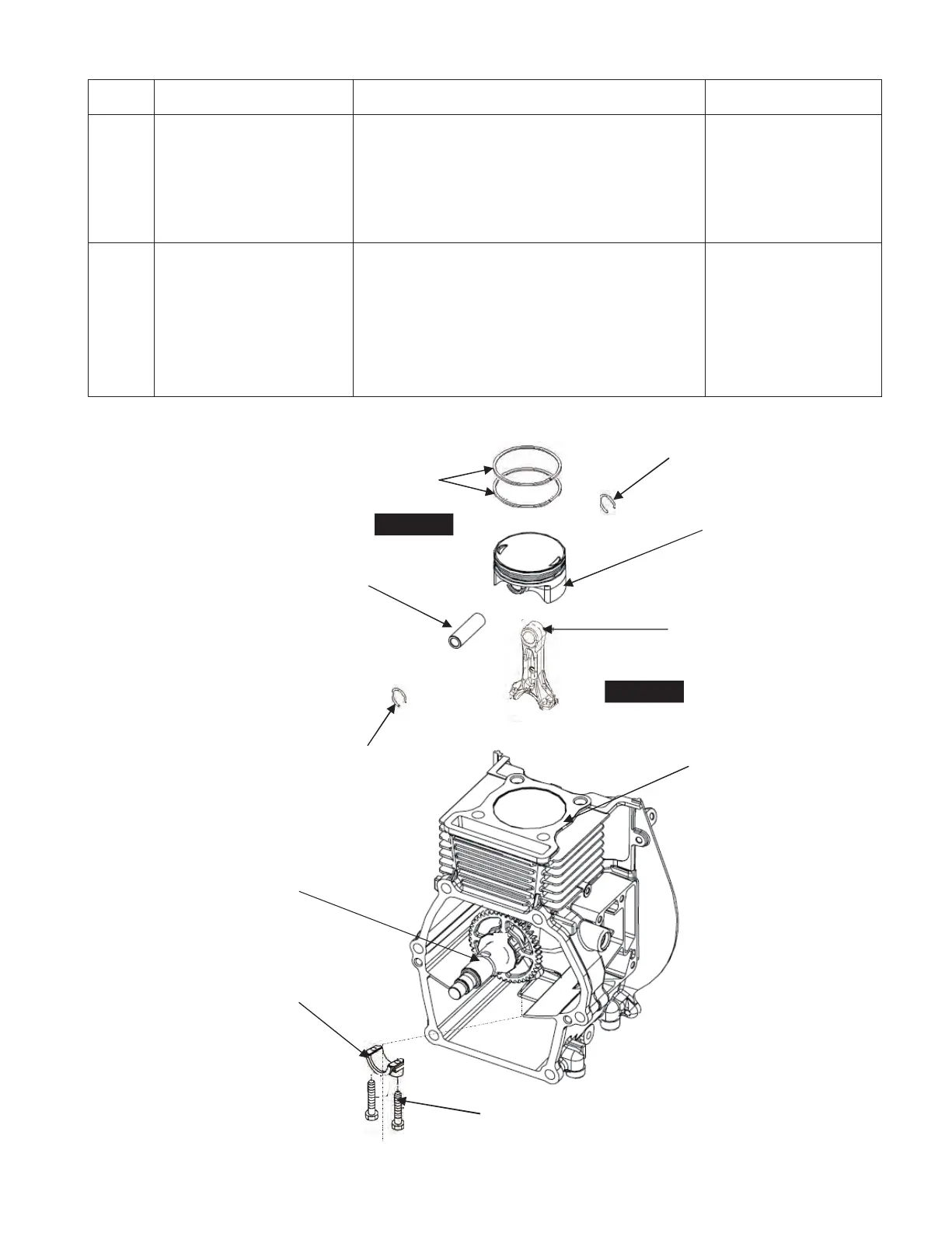

Connecting rod and piston (1) Scrape off any carbon from the cylinder and the
piston head, then remove the connecting rod bolt
(2) Remove the connecting rod cap
(3) Rotate the crankshaft until the piston comes to its
top position Push the connecting rod and remove
the piston from the upper part of the cylinder
8mm box spanner
M5×25mm:2pcs
22
Piston and piston rings (1) Remove the piston clips(2pcs) Take out the
piston pin and then remove the piston from the
connecting rod small end, taking care not to
damage the connecting rod small end
(2) Remove the piston rings from the piston by
spreading them at the gap Take special care not
to damage the rings when doing this
PISTON
PISTON PIN
CLIP
CLIP
CONNECTING ROD BOLT : 2pcs.
CONNECTING
ROD CAP
CRANKSHAFT
CONNECTING ROD
UPPER PART OF
THE CYLINDER
PISTON RING
STEP 22
STEP 21
