13-5 POWER TRANSMISSION TO DRIVE MACHINES

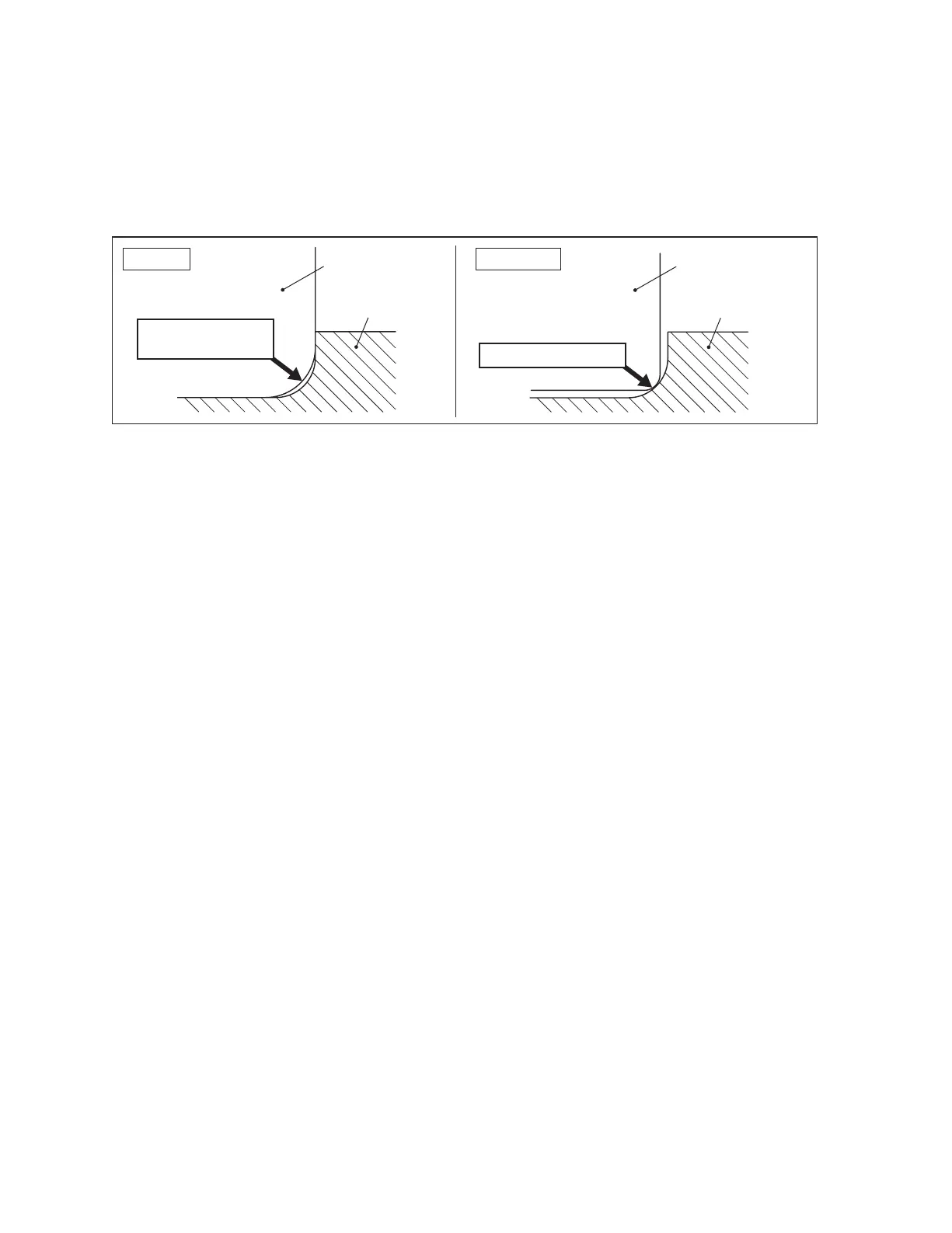

Clutch fitting onto PTO shoulder
For proper clutch fitting onto PTO shoulder, make round chamfer at clutch corner
Sharp edge of clutch corner strikes PTO shoulder In this improper condition, bolt will be loosened,
and PTO damaged finally
Proper
Improper
Clutch
Crankshaft (PTO)
Clutch
Crankshaft (PTO)
Round chamfer for
proper fitting
Sharp edge striking
