北米Model "A2600BE-B" EDITED: 2020/ 10/ 1
9. Tighten the upper and lower screws.
10. Reinstall the side cover.
! Outback
s11be0502

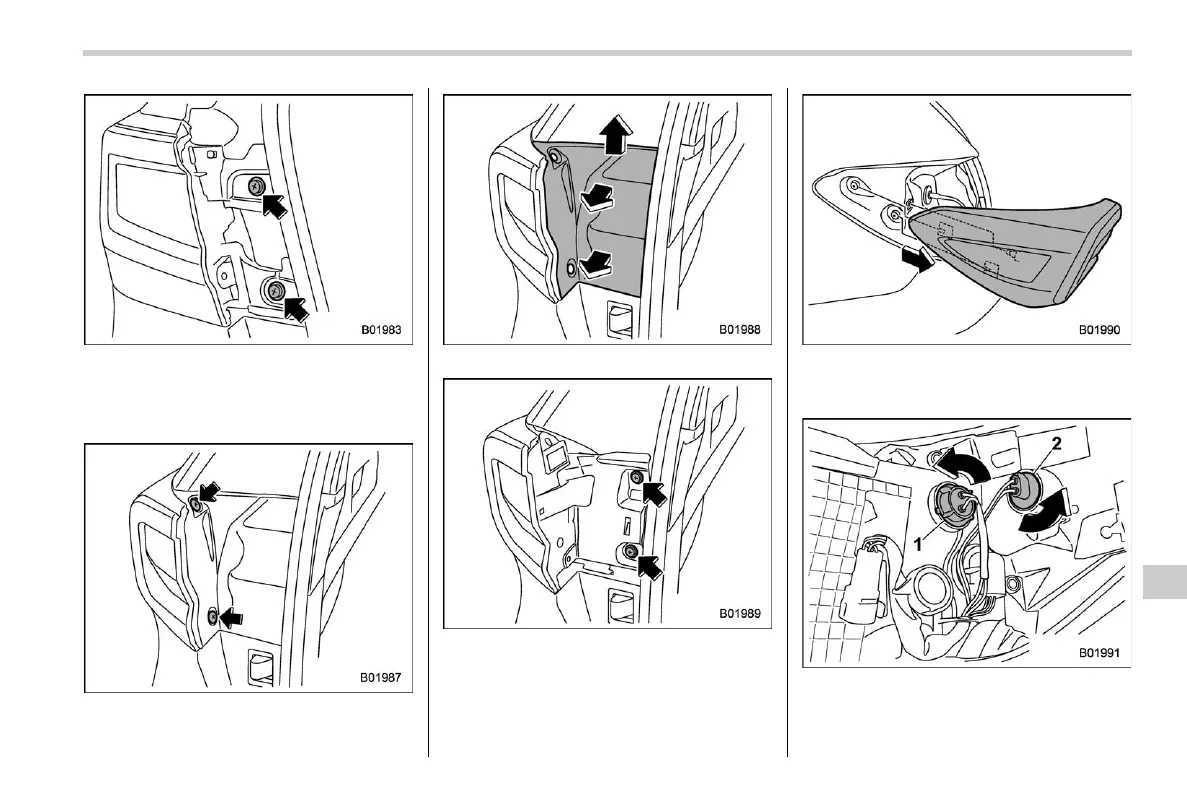

1. Undo the clips. For the method to undo
the clips, refer to “Type C clips” FP486.
2. Remove the side cover.
3. Remove the upper and lower screws.
4. Slide the rear combination light as-
sembly straight rearward and remove it
from the vehicle.
1) Rear turn signal light
2) Rear side marker light
5. Remove the bulb holder from the rear
– CONTINUED –
Replacing Bulbs
521
11
Maintenance and Service
To Next Page
