12-2. Fuses and Circuits
s12ab

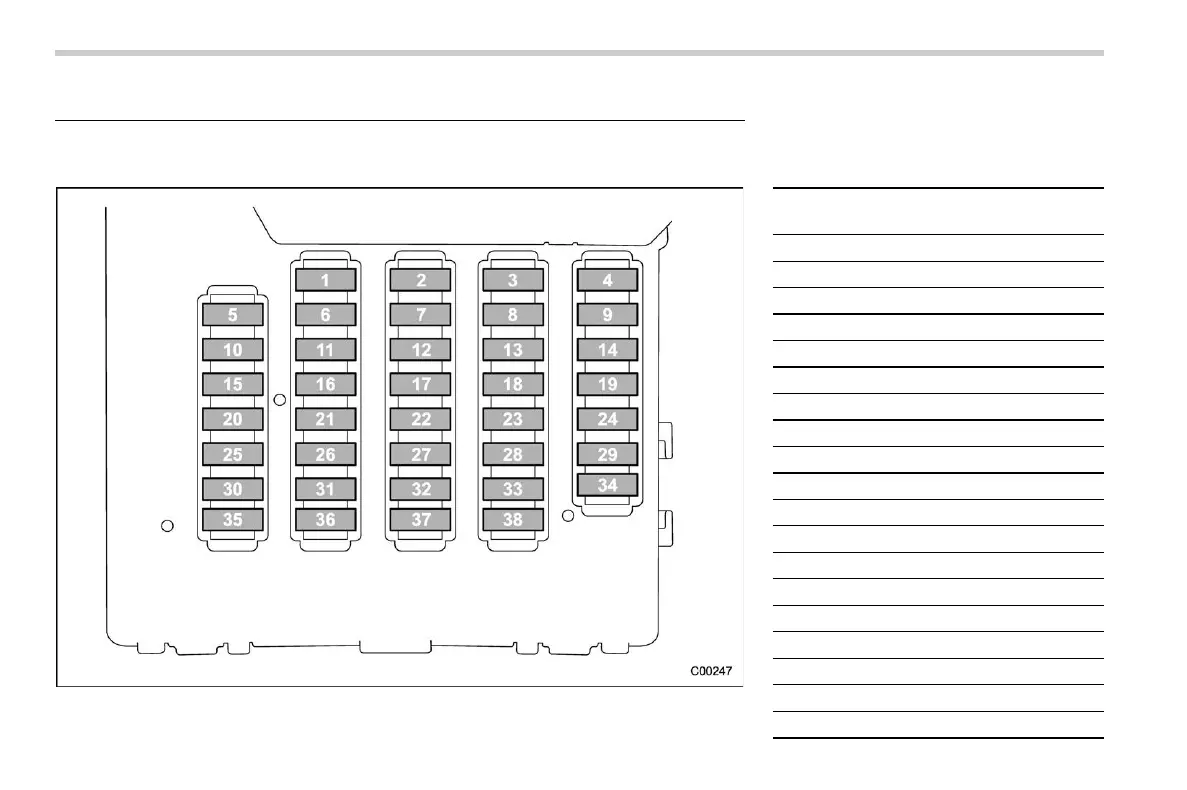

& Fuse Panel Located in the Passenger Compartment
s12ab01
Fuse
panel
Fuse rating Circuit
1 Empty
2 20 A CIGAR
3 7.5 A IG A-1
4 15 A AUDIO NAVI
5 10 A IG B-2
6 7.5 A METER IG (DCDC)
7 20 A 12 V SOCKET
8 10 A A/C IG
9 7.5 A ACC
10 7.5 A IG B-1
11 7.5 A EYE SIGHT (DCDC)
12 Empty
13 7.5 A IG A-3
14 Empty
15 Empty
16 7.5 A UNIT IG (DCDC)
17 7.5 A MIRROR ACC
18 Empty
19 10 A IG A-2
