Suburban DynaPack S Series Architects And Engineers' Manual

Suburban DynaPack A&E Manual 07/2019 Rev.6
13

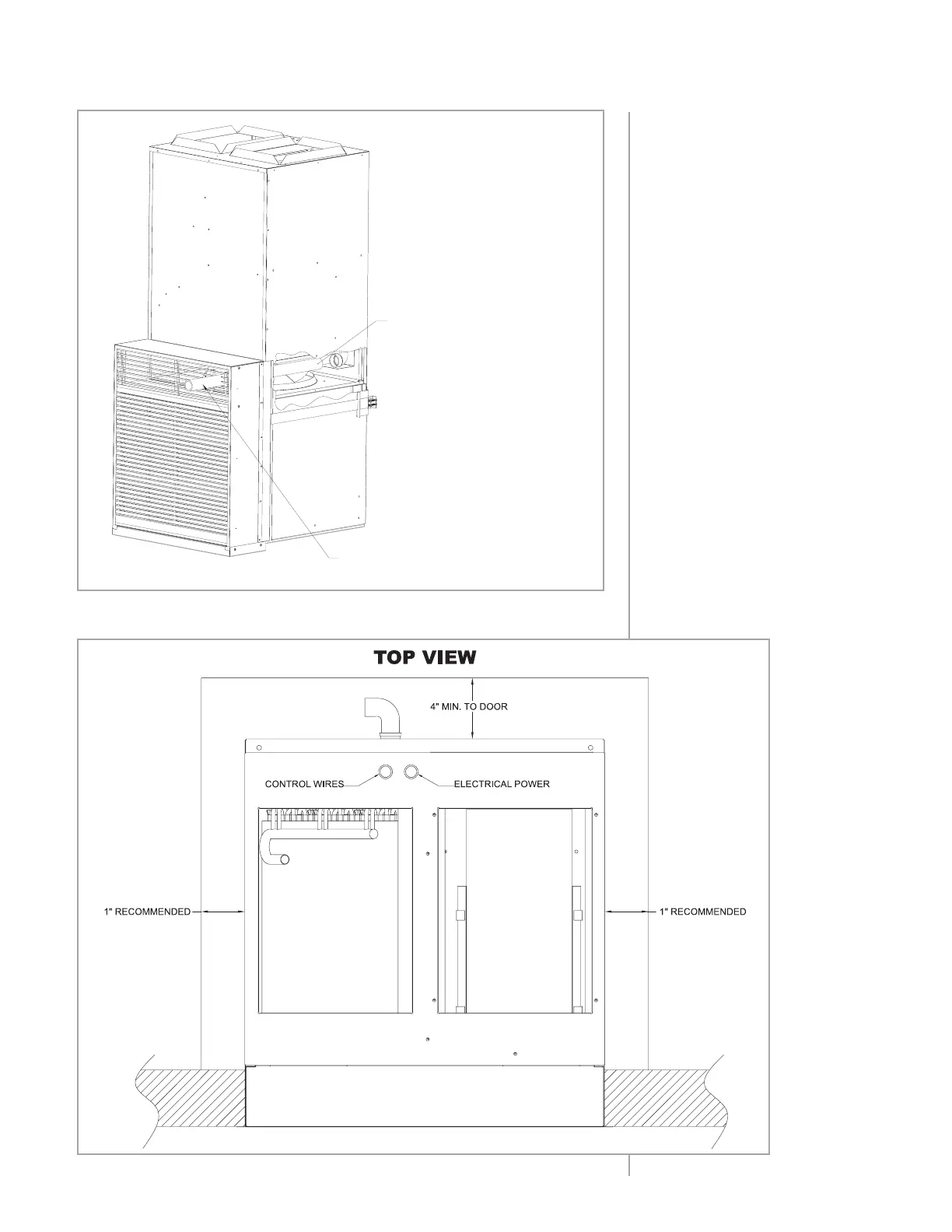

FIGURE 5
VENT PIPE ADJUSTMENT
FOR H SERIES UNITS
The venting system for the
Dynapack H 90% + condensing
furnace must be completed in
the field using 1-1/2" PVC
schedule 40 DWV pipe.
The vent pipe will be straight for
the full unit width wall sleeves.
See Figure 4 for the typical full
unit width vent pipe installation.
The vent pipe must terminate
approximately two inches outside
the exterior grille.
* CURTAIN WALL
1. INSERT STRAIGHT 1 1/2"
SCHEDULE 40 PVC VENT
PIPE THROUGH OPENING
IN GRILLE.
2. APPLY PVC PIPE CEMENT
TO PIPE AND INSERT INTO
ELBOW.
3. SEE TABLE 1 FOR PIPE CUT
LENGTH.
WHEN INSTALLED, PIPE SHOULD
EXTEND PAST GRILLE 2" ± 1/2"
FIGURE 4
