Suburban DynaPack S Series Architects And Engineers' Manual

Suburban DynaPack A&E Manual 07/2019 Rev.6
8

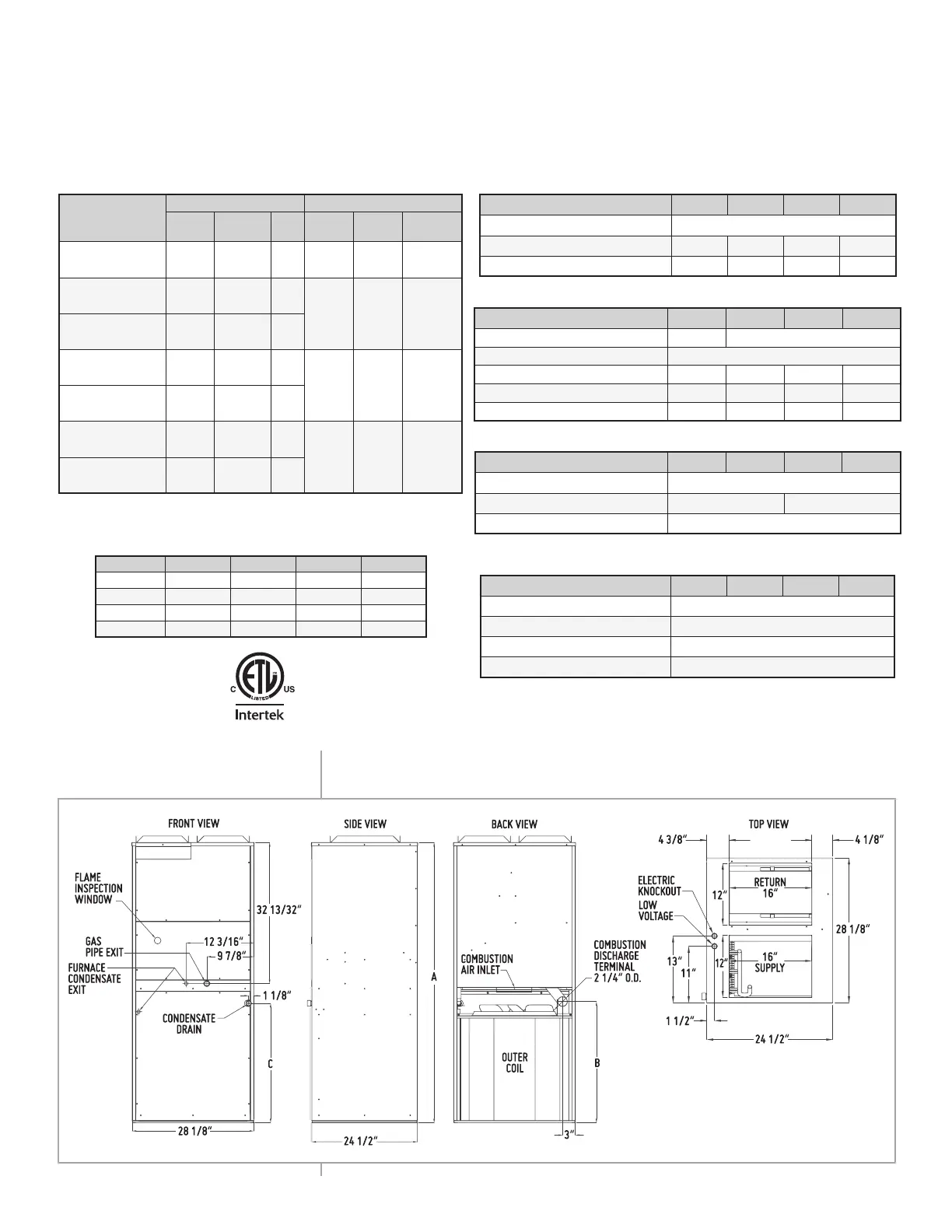

DYNAPACK SPECIFICATIONS
DynaPack
™
H SERIES
Performance Data
H SERIES
MODEL
HEATING COOLING
Input
Btuh
Output
Btuh
TE
1
Btuh EER
2
Refrigerant
DYPA12AC3A039H 39,000 36,000 92% 12,000 11.0 R-410A
DYPA18AC3A039H 39,000 36,000 92%
18,000 11.0 R-410A
DYPA18AC3A052H 52,000 47,300 91%
DYPA24AC3A039H 39,000 36,000 92%
24,000 11.0 R-410A
DYPA24AC3A052H 52,000 47,300 91%
DYPA30AC3A039H 39,000 36,000 92%
30,200 11.0 R-410A
DYPA30AC3A052H 52,000 47,300 91%
1
Thermal Efficiency
2
Unit Tested to ANSI/AHRI Standard 390.
Dimensions In Inches
MODEL Height Width Depth Weight
DYPA12 60-1/2 28-1/8 24-1/2 251
DYPA18 60-1/2 28-1/8 24-1/2 279
DYPA24 60-1/2 28-1/8 24-1/2 279
DYPA30 64-1/2 28-1/8 24-1/2 314
Electrical Data
Model DYPA12 DYPA18 DYPA24 DYPA30
Volts/Phase/Cycle 208/230-1-60
Minimum Circuit Ampacity 13.3 17.0 18.6 22.2
Maximum Fuse/HACR Breaker Size 15 25 30 35
Compressor Data
Model DYPA12 DYPA18 DYPA24 DYPA30
Type Rotary Scroll
Refrigerant Type (HCFC) R410A
Unit Refrigerant Charge 35oz. 55oz. 65oz. 90oz.
Rated Load Amps 5.2 10.0 11.3 13.6
Locked Rotor Amps 25 52 52 79
Motor Data
Model DYPA12 DYPA18 DYPA24 DYPA30
Indoor motor (ECM) FLA/HP/RPM 4.0/.50/1050
Condenser motor FLA/HP/RPM 0.9/0.125/1075 1.3/0.25/1075
Combustion motor FLA 0.9
Gas Controls and Additional Data
Model DYPA12 DYPA18 DYPA24 DYPA30
Gas (specify) Natural
Ignition system: solid state Direct Spark
Gas connection size 1/2 inch NPT
Condensate connection size 3/4 inch NPT
Specifications subject to change without notice. Installation must be in accordance with local codes and regulations.
