Suburban DynaPack A&E Manual 07/2019 Rev.6
16
TABLE 2
1741 5-7/8" 6-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1742 7-7/8" 8-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1743 9-7/8" 10-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1744 11-7/8" 12-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1745 13-7/8" 14-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1769 15-7/8" 16-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1771 17-7/8" 18-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1773 18-7/8" 19-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1821 19-7/8" 20-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1823 21-7/8" 22-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1825 23-7/8" 24-3/4" 28-5/8" 28-9/16" 28-3/4" DYPA12AC3A, DYPA18AC3A and DYPA24AC3A
1736 5-7/8" 6-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1737 7-7/8" 8-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1738 9-7/8" 10-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1739 11-7/8" 12-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1740 13-7/8" 14-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1770 15-7/8" 16-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1772 17-7/8" 18-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1774 18-7/8" 19-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1822 19-7/8" 20-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1824 21-7/8" 22-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A
1826 23-7/8" 24-3/4" 32-5/8" 28-9/16" 32-3/4" DYPA30AC3A

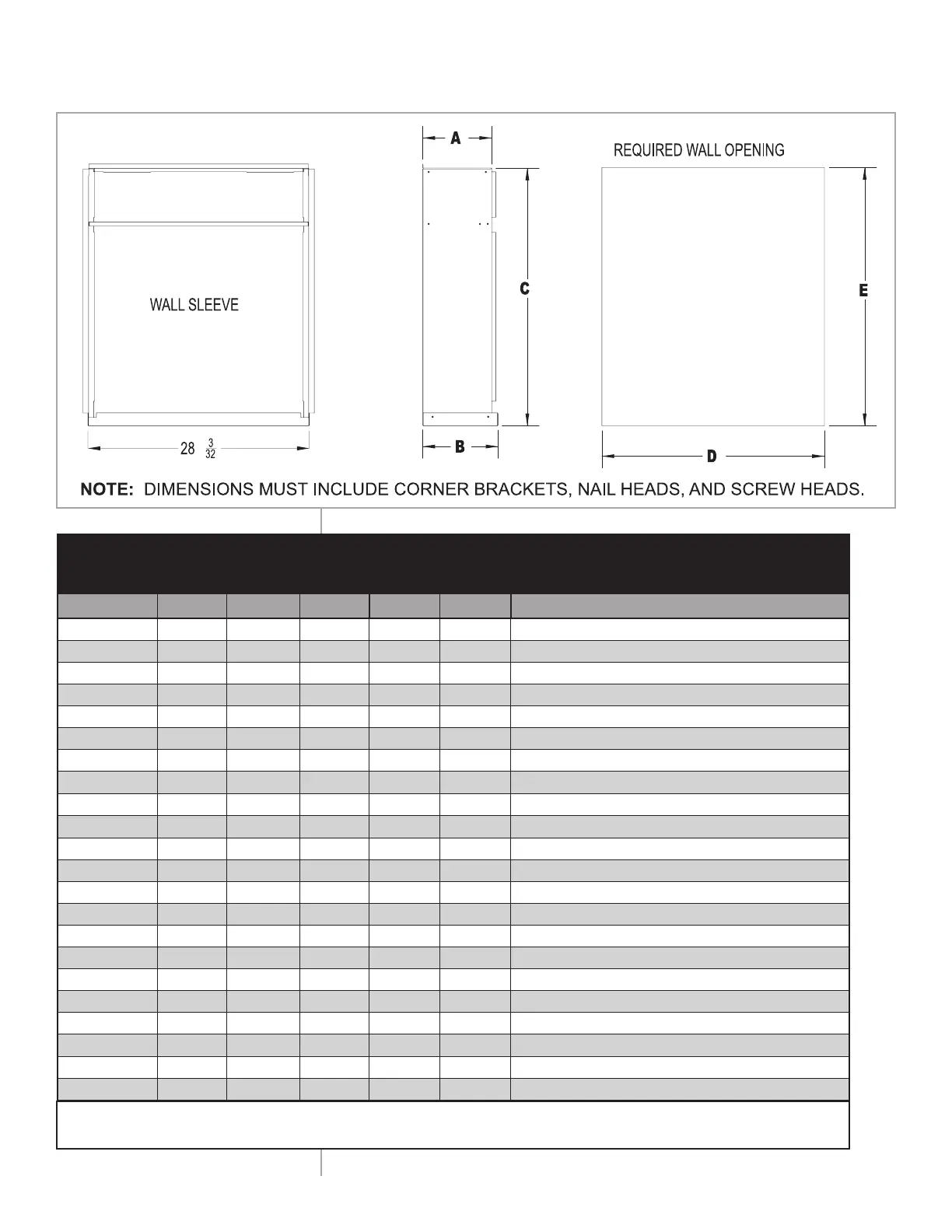

WALL SLEEVE AND GRILLE INSTALLATION
FIGURE 8
PART NUMBER
A B C D E
Unit
WARNING! The unit must be installed with approved wall sleeve and grille accessories for safe operation.
Improper installations could result in personal injury, or death.
WALL SLEEVE DIMENSIONS S and H SERIES
Sleeve dimensions dependent on cooling capacity only.
