Suburban DynaPack S Series Architects And Engineers' Manual

Suburban DynaPack A&E Manual 07/2019 Rev.6
19

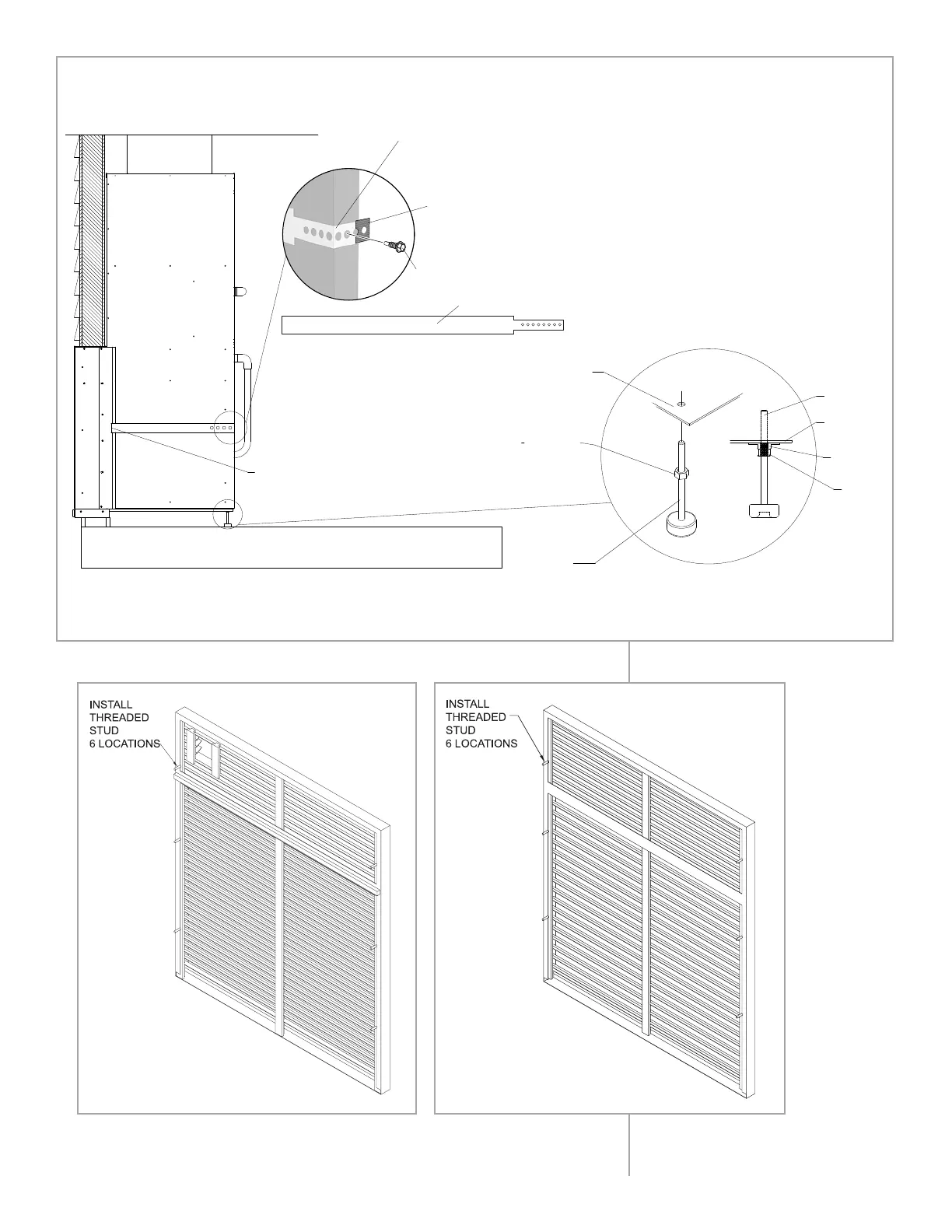

FIGURE 15 - S SERIESFIGURE 15 - H SERIES
FIGURE 13
SELF-DRILLING SCREW
STRAP
LEG LEVELER
3
8
-16 JAM NUT
THE LEG LEVELERS INSTALL INTO
A WELD NUT ATTACHED TO THE
UNDERSIDE OF THE DRAIN PAN.
ONCE THE UNIT IS LEVEL, TIGHTEN
THE JAM NUT TO LOCK THE LEG
LEVELER IN PLACE.
LEG LEVELER
WELD NUT
DRAIN PAN
JAM NUT
TRIM OFF EXCESS
STRAP MATERIAL
BEND STRAP AROUND
FRONT OF UNIT AND
SECURE WITH A SELF-
DRILLING SCREW
ENGAGE FLANGE ON WALL SLEEVE
WITH FLANGE ON STRAP. SECURE
TO UNIT WITH SELF-DRILLING SCREWS.
