Suburban SDN2 - Minimum Installation Clearances; Portable Counter Top Guidelines

A
4"
3 1/8"
18"
E
MIN.
C

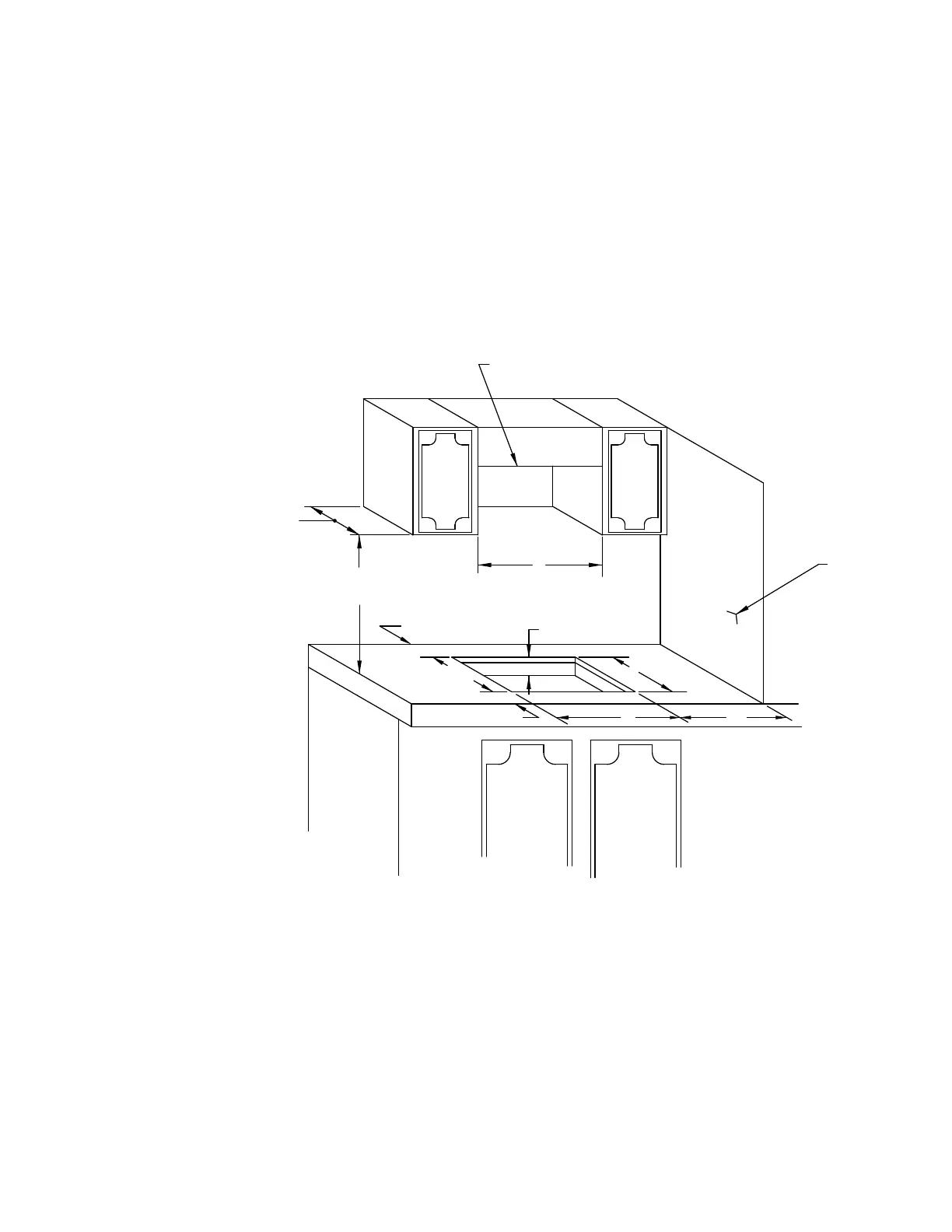

MINIMUM DISTANCE TO COMBUSTIBLE SURFACES
DIRECTLY ABOVE COOK-TOP 24"
*D
WALL
*C-SEE UL LABEL
*
13" MAXIMUM OVERHEAD
CABINET DEPTH
B
REAR
FRONT
Figure 2
20lbs)andweightofcookingunit(20lbs.)from100lbs.Theweight
labelshouldsanomorethan60lbs.canbeputonthecountertop.
c. Thesurfacematerialforthecountertipmustberatedforaminimum
of200°Fcontinouscoperationtemperaturewiththemaximumweight
applied.
d.Minimumclearancesfromcombustiblewallsaboveandbelowthe
countertopmustbeadheredtoduringoperation.
e. TheOEMmustprovideawarninglabelplacedonthecountertop
thatrequirestheunittobecooledaminimumof30minutesafteruse
beforestoring.
f.Duringstorage,aclearanceof1"mustbemaintainedfromthetop
surfaceoftheunit.
g. NOTE:  The gas must be turned "OFF" and disconnected when
stored.
SAFETY INFORMATION
3
