subzero.com | 13
Panel Installation
DOOR PANEL

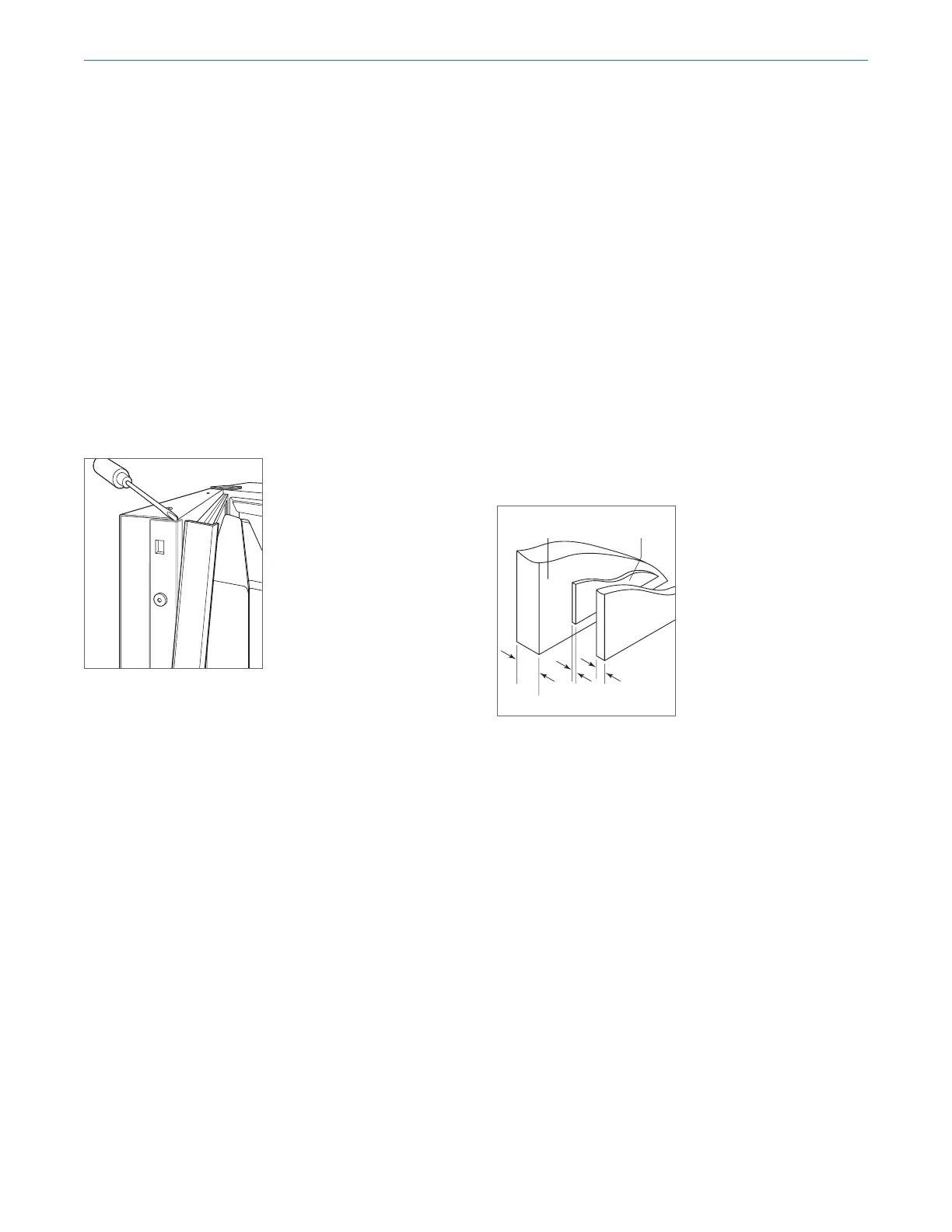

To install the custom door panel, remove the handle side
trim molding. Insert a screwdriver tip into the top corner
slot on the handle side and pop out the trim. Remove the
screws and frame. Refer to the illustration below.
The door has a ⁄"
(6) frame for the custom panel to slide
into. If the panel is thicker than ⁄"
(6), rout an edge around
the panel or mount the panel on a sheet of ⁄"
(6) thick
material, then insert into the frame.
A .10"
(3) space is required between the backer panel
and the custom panel to allow the panel to slide into
the door frame. Refer to the illustration below for critical
dimensions.
Install the handle hardware before inserting the panel.
Large D-style handles are recommend rather than knobs.
The screw heads must be countersunk into the panel.
Slide the panel into the frame.
To reinstall the door trim molding, insert the top of the trim
into the grooves at the top of the door and work down-
ward, snapping the trim into the clips on the door frame.
Door side trim
Panel Installation
1
/4" (6)
.10" (3)
CUSTOM
PANEL
SPACER
PANEL
BACKER
PANEL
3
/4"
(19)
TYPICAL
Panel assembly (rear view)
