subzero.com | 15

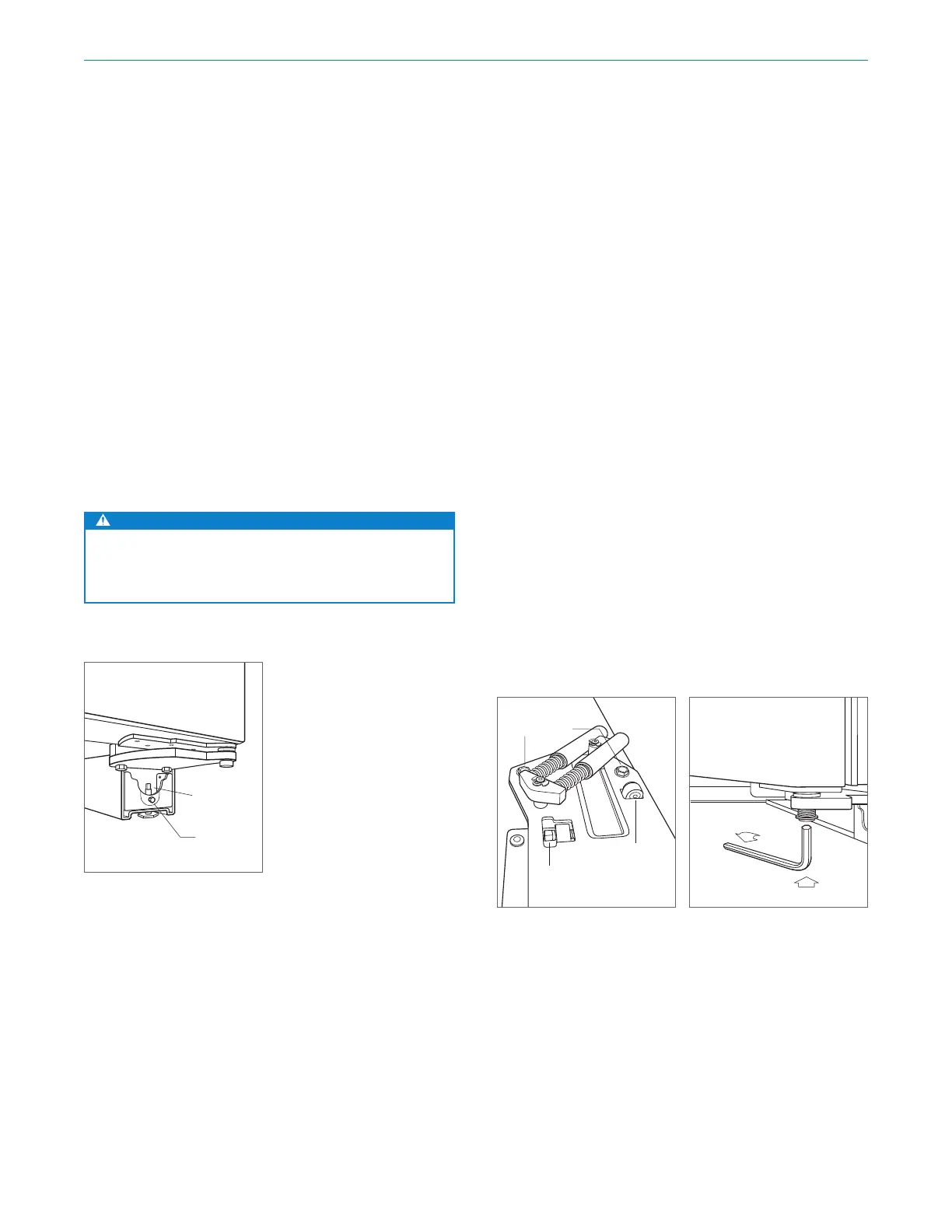

DOOR ADJUSTMENT
The door can be adjusted in and out, side to side tilt, and
up and down.
To make adjustments, slightly loosening the two upper
hinge bolts on the upper hinge plate using a ⁄" wrench.
Refer to the illustration below.
In-and-Out Adjustment: For a left-hinge door, using a
⁄" allen wrench, turn the adjustment bolt clockwise to
bring the handle side of the door inward, and counter-
clockwise to move the handle side outward. Reverse direc-
tions for a right-hinge door.
Side-to-Side Tilt Adjustment: For a left-hinge door, using a
⁄" wrench, turn the adjustment bolt clockwise to raise the
handle side of the door, and counterclockwise to lower the
handle side. Reverse directions for a right-hinge door.
Up-and-Down Adjustment: For a left-hinge door, using
a ⁄" allen wrench, turn the adjustment bolt clockwise to
raise the door and counterclockwise to lower. Refer to
the illustration below. Reverse directions for a right-hinge
door.
Alignment
LEVELING
Once the unit is in position, turn the front leveling legs
clockwise to adjust the height. The rear height adjustment
can be made from the front of the roller base. Using a ⁄"
socket, turn the ⁄" hex bolt clockwise to raise the unit or
counterclockwise to lower. Use the lowest torque setting
when using a power drill. Do not turn the rear leveling legs
by hand. Refer to the illustration below.
When the unit is properly leveled, door adjustments are
less likely to be necessary.
IMPORTANT NOTE: Level the unit to the floor, not the sur-
rounding cabinetry. This could aect the operation of the
unit, such as door closing.
WARNING
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the
floor.
FRONT
LEVELING LEG
REAR
ADJUSTMENT
Leveling
Installation
UPPER
HINGE BOLTS
SIDE-TO-SIDE
TILT ADJUSTMENT
IN-AND-OUT
ADJUSTMENT
Door adjustment bolts
Up-and-down door adjustment
