Opening Dimensions

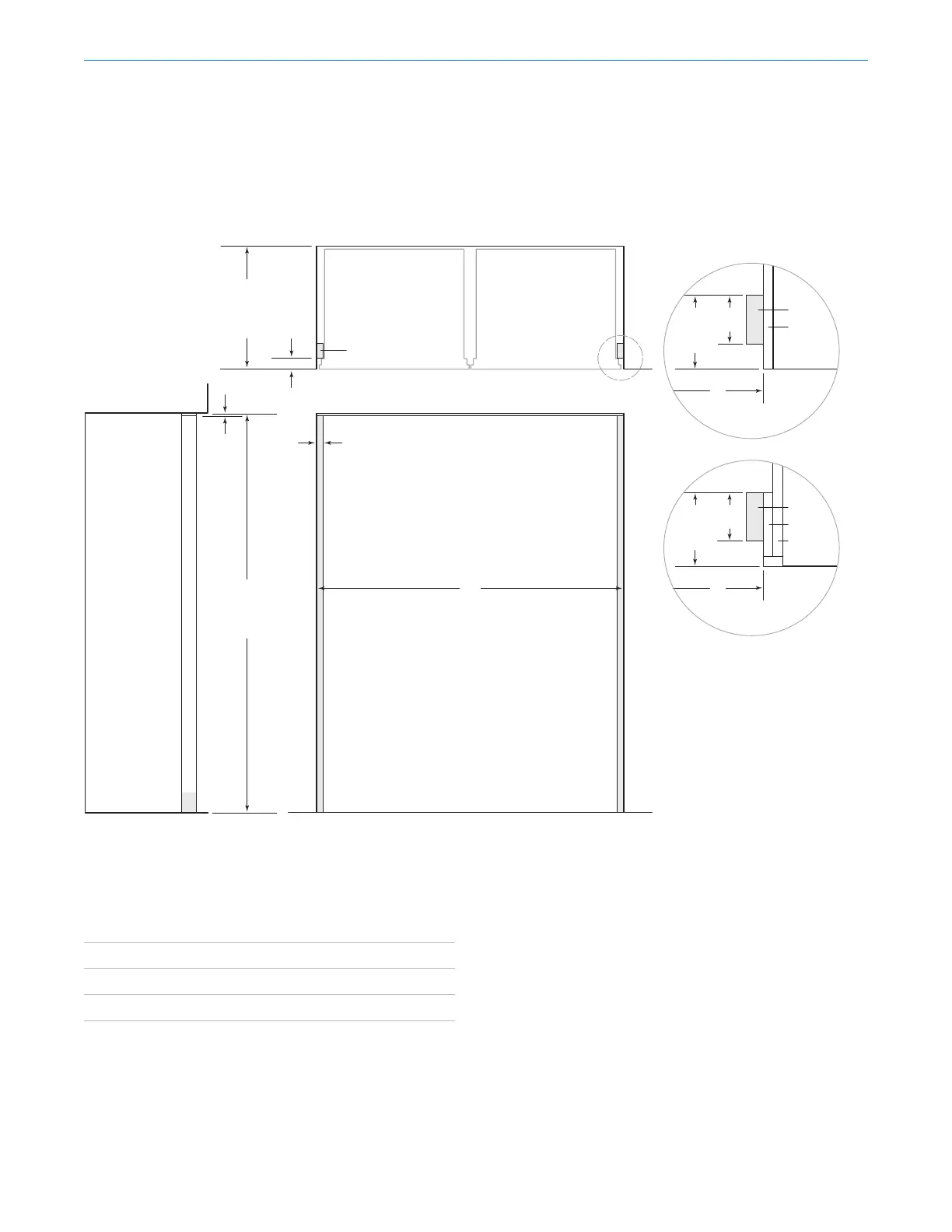

DUAL FLUSH INSET INSTALLATION
84"
(2134)
FLUSH
INSET
HEIGHT
1
/4"
(6)
26
3
/16"
(665)
FLUSH
INSET
DEPTH
2
3
/
16
"
(56)
FRONT VIEW
SIDE VIE
W
TOP VIEW
FINISHED
CLEATS
1
1
/4"
(32)
W
FLUSH INSET WIDTH
NOTE: 3
1
/2" (89) finished returns and shaded areas will be visible and should be finished to match cabinetry.
Shaded line represents profile of unit wit
h
3
/4" (19) panel.
5
11
/16"
(145)
FINISHED
RETURN
FILLER
FRAMED
CABINETRY
W
CLEAT
3
/4" (19)
TYPICAL
3
1
/2"
(89)
5
11
/
16
"
(145)
FINISHED
RETURN
FRAMELESS
CABINETRY
W
3
1
/2"
(89)
CLEAT
3
/
4
"
(19)
TYPICAL
DUAL FLUSH INSET WIDTH W
Two Models CL3050W 62⁄" (1581)
Model CL3050W and 30" Classic Series Model 62⁄" (1581)
Model CL3050W and 36" Classic Series Model 68⁄" (1734)
Dimensions assume a ⁄" (19) panel thickness. A dual instal-
lation kit is required for this installation.
Site Preparation

Subzero Classic Series Specifications

General

Available Widths	24"
Interior Lighting	LED lighting
Temperature Zones	Dual Zone
Energy Efficiency	Energy Star
Finish	Stainless steel
Series	Classic Series
