6-3
#7013455 - Revision A - April, 2009
Component Access/Removal
International W
International W
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Series
Series
Kickplate
To remove a kickplate, extract the screws from the left
and right corners of the kickplate, then pull the kickplate
forward. (See Figure 6-1).
Dual Installation Kickplate
A dual installation kickplate assembly is held in place
with magnets at each end and one screw at top center.
To remove the dual installation kickplate, the screw at
top center must be extracted before pulling the dual
installation kickplate forward (See Figure 6-1A).
Drain Pan
The drain pan slides in from the front of unit on two side
brackets. A locating feature was built into the drain pan
in the form of detentes at the bottom front that drop into
notches at the front of the side brackets.
To remove the drain pan (See Figure 6-2):
1. Remove kickplate.
2. Push front of drain pan up slightly, then pull for-
ward.

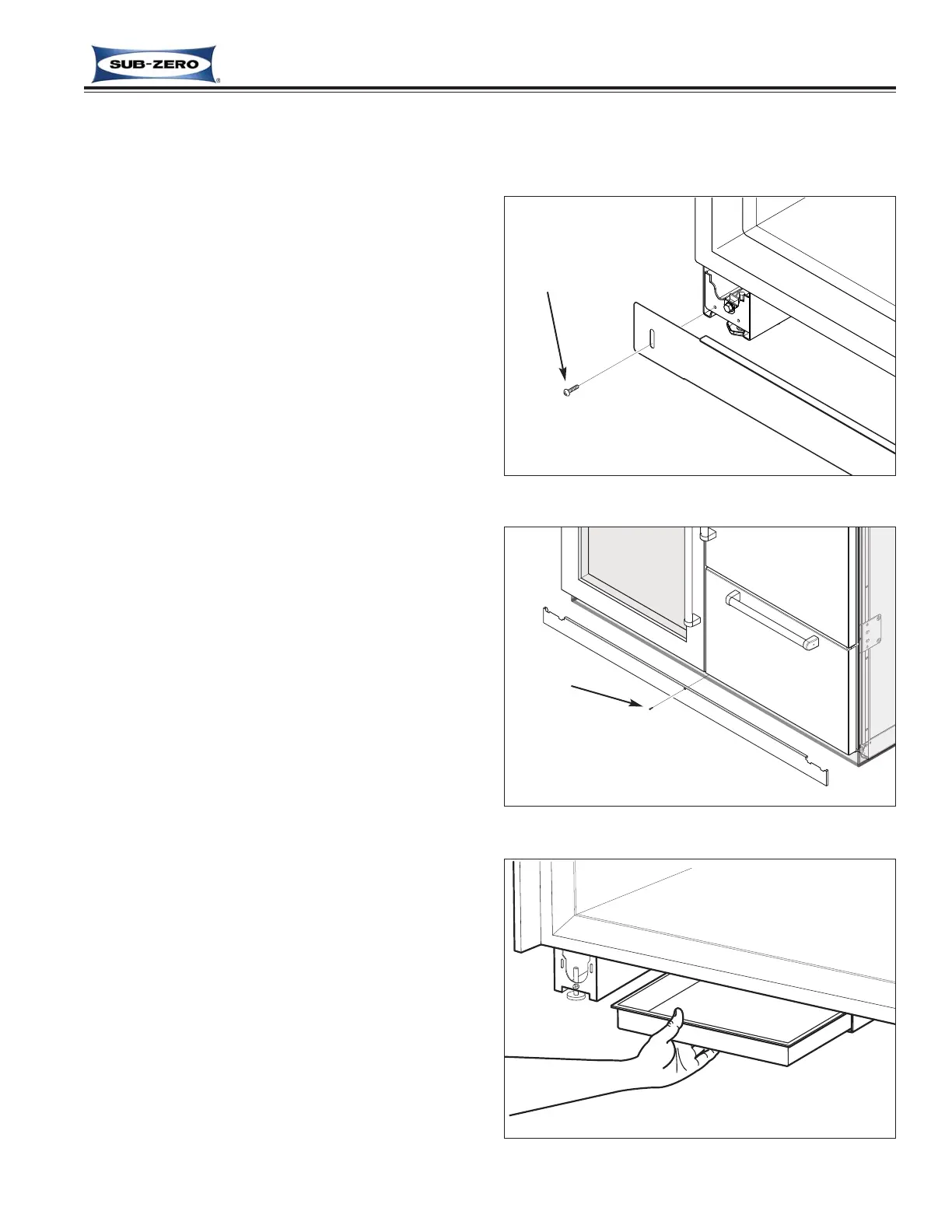

Figure 6-1. Kickplate Removal
Figure 6-2. Drain Pan Removal
Drain Pan
Figure 6-1A. Dual Installation Kickplate
Dual Installation Kickplate
Screw
Kickplate
Screw
Model ICBWS-30 Exterior Cosmetic / Mechanical Components
