6-4
#7013455 - Revision A - April, 2009
Component Access/Removal
International W
International W
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Series
Series

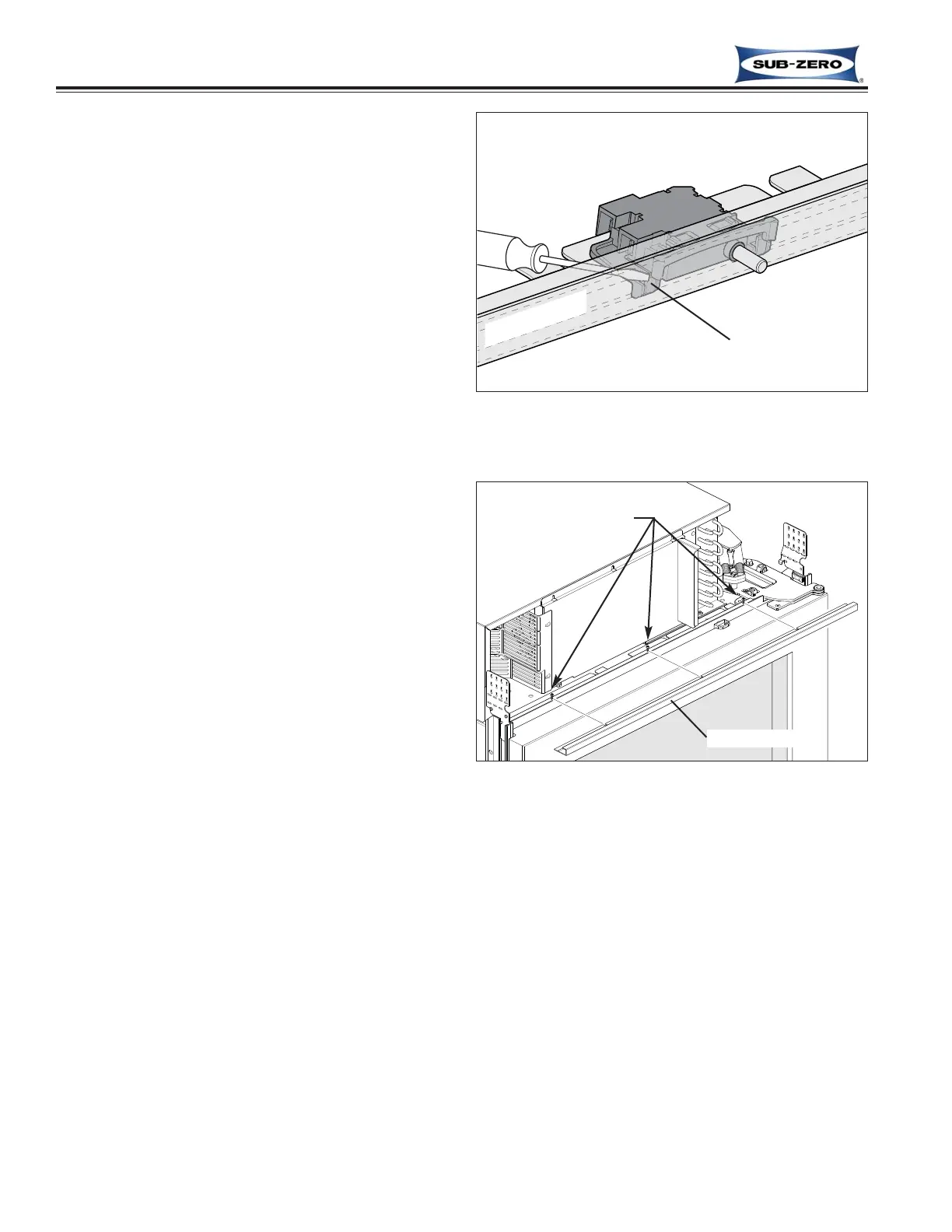

Figure 6-3. Door Switch Removal
Door Switch
The door switch is located at the top rear of the top
cabinet frame, with the switch’s actuator protruding
through a hole in the front of the frame. A series of tabs
and pegs hold the door switch in place.
To remove a door switch, first open the grill, then (See
Figure 6-3):
1. Disconnect the switch electrical leads using a nee-
dle-nose pliers to pull the electrical lead housings
away from the switch.
2. Use a small flat-blade screwdriver to pry the front
retaining tab at each side of the switch back while
lifting that side of the switch up. Repeat this step
on each side of the switch.
3. Pull switch back and lift off of the top cabinet frame
Top Cabinet Trim
The top cabinet trim sits below the grille assembly.
Screws pass through open ended slots in the trim to
secure it to the top cabinet frame.
To remove the top cabinet trim first open the grill then,
(See Figure 6-4):
1. Use a T-15, 6-lobe Torx type bit, to loosen, but not
remove, the trim mounting screws.
2. Pull the trim forward. off of the unit.
Figure 6-4. Top Cabinet Trim Removal
Retaining Tab
Switch
Cabinet Frame
Trim Mounting Screws
Top Cabinet Trim
To Next Page
