Component Access/Removal
International W
International W
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Series
Series
Grille Assembly
The grille assembly is attached at the top of the unit
with screws passing through the grille’s side frames into
grille brackets.

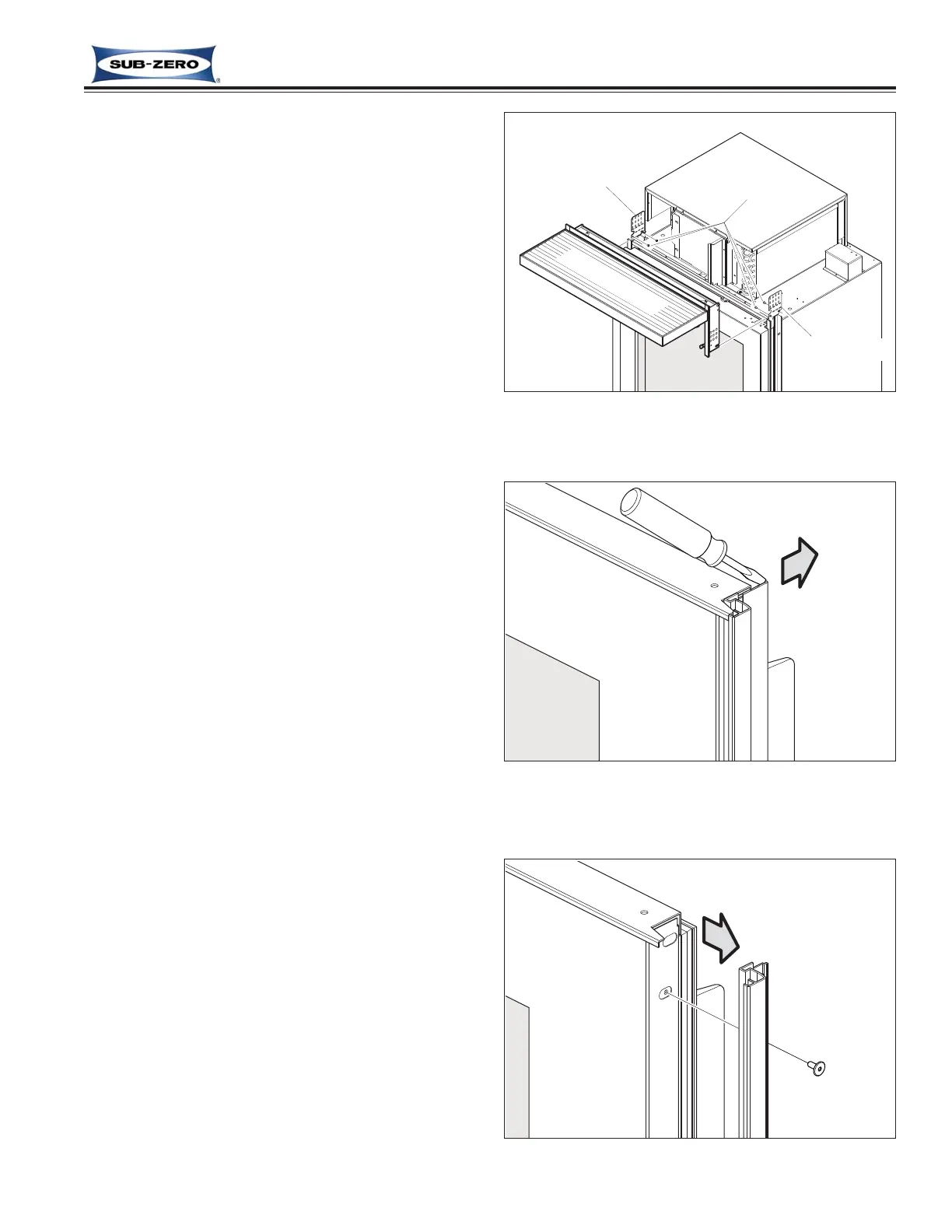

To remove a grille assembly (See Figure 6-5):
1. Lift open the front of the grille assembly to access
the mounting screws.
2. With a T-20, 6-lobe Torx type bit, extract the two
front grille mounting screws, then loosen but do not
remove the two rear mounting screws.
3. pull the grille assembly forward, off of the unit.
NOTE: When reinstalling the grille assembly, line up
the notches at back of grille side frames with the rear
mounting screws, then push the grille assembly back.
Framed / Overlay Refrigerator Door Handle /
Handle-Side Trim
The door handle on framed units and the handle-side
trim on overlay units is attached to the door with
screws. These screws are covered by a screw cover.
To remove a handle of handle-side trim, open the door
then:
1. At the top of the door, insert a flat blade screwdriver
into the channel of the screw cover and push the
cover back, disengaging it from the handle or trim
(See Figure 6-6).
2. With a T-20, 6-lobe Torx type bit, extract the handle-
side trim mounting screws and pull the trim from the
door (See Figure 6-7).
