6-8
#7013455 - Revision A - April, 2009
Component Access/Removal
International W
International W
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Series
Series
Model ICBWS-30 Interior Cosmetic / Mechanical Components
Door Gasket
A dart at the back of the door gasket fits into metal
channels attached to the inside perimeter of the door.
To remove a door gasket, starting at one corner, pull
the gasket dart from the metal channels. (See Figure
6-13).
Wine Rack Assembly
To remove a wine rack assembly (See Figure 6-14):
1. Pull rack forward until it stops.
2. Lift front of rack up while pulling forward.
3. After indentations on the wine rack clear the rollers
on the cabinet slides, lower front of rack while con-
tinuing to pull forward and lifting rear of rack.
Cabinet Slide and Slide Spacer
Cabinet slides are attached to side walls with screws,
and on the handle side there are slide spacers between
the slides and the wall.
To remove a cabinet slide, extract the slide’s mounting
screws and pull the slide from the wall (See Figure 6-
15).

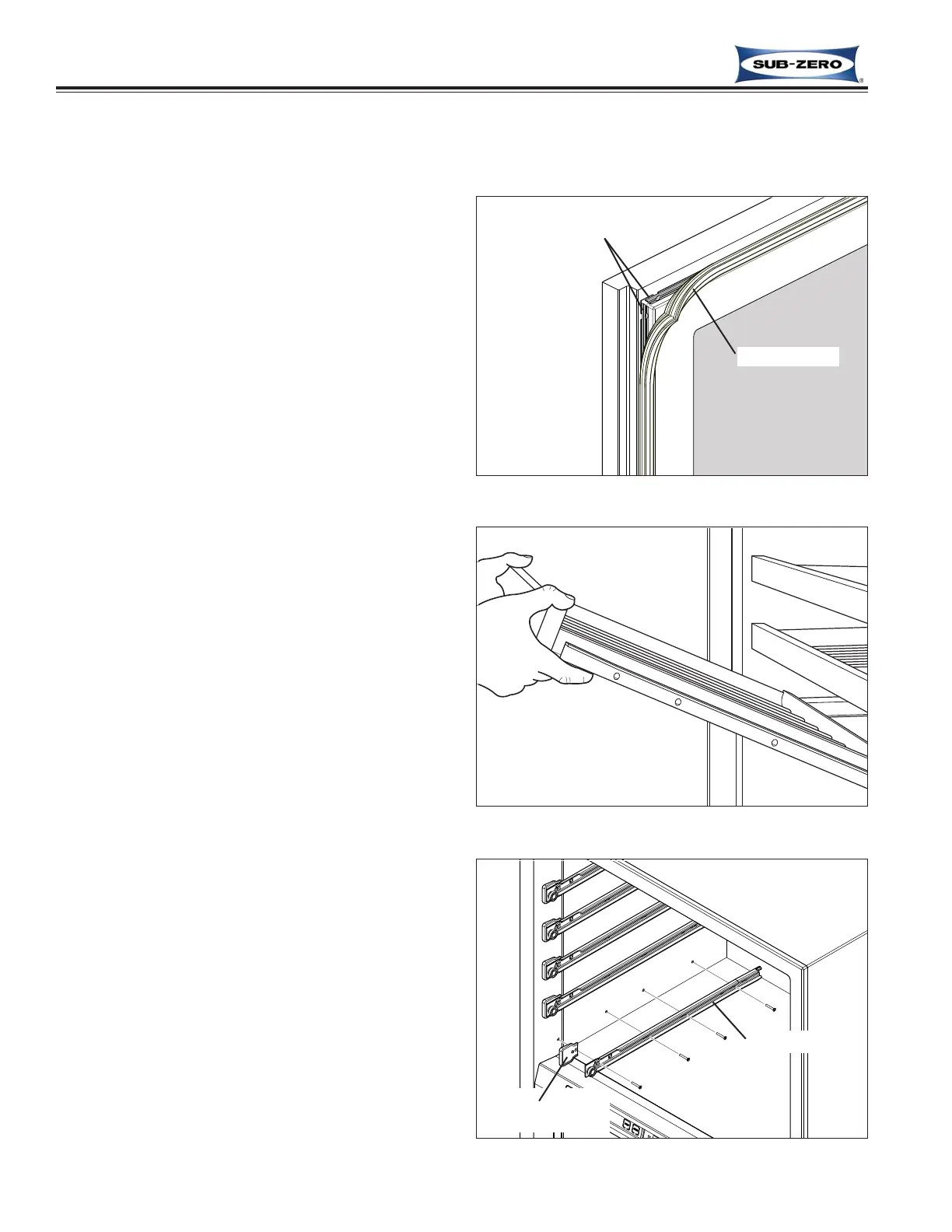

Figure 6-13. Door Gasket Removal
Metal Channels
Gasket
Figure 6-14. Wine Rack Assembly Removal
Figure 6-15. Cabinet Slide Removal
Spacer
(handle side only)
Cabinet Slide
