Upper Light Strip
The upper light strip is captivated in the channel of the
upper light strip housing.
To remove the upper light strip, first remove the upper
wine rack assemblies, then (See Figure 6-16):
1. Extract light strip housing mounting screws.
2. Pull housing forward to expose electrical connec-
tions, then disconnect light strip electrical leads.
3. Extract screw securing ground wire to the housing.
4. Slide light strip out end of channel.
NOTE: When reinstalling the light strip housing, take
care to ensure all wire leads are tucked back behind
the light strip housing before resecuring it to the ceiling.
Upper Fan Cover
There are two access holes in the upper evaporator fan
cover, through which pass screws. These screws also
pass through slots in the back flanges of the fan cover,
and through holes in the evaporator cover, into screw
grommets at the back wall, securing all in place.
To remove an evaporator fan cover, extract the two
mounting screws from the access holes and pull the fan
cover forward. (See Figure 6-17)
Upper Duct
The upper duct has notches at the bottom of each side
flange that fit over locating screws protruding from the
side covers. Screws at the top of the duct, which are
concealed by the fan cover, secure the duct to stand-off
brackets.
To remove the upper duct, first remove the fan cover,
then (See Figure 6-18):
1. Extract duct mounting screws.
2. Pull top of duct forward, about 20-45 degrees from
vertical, then lift the duct up off of locator screws.

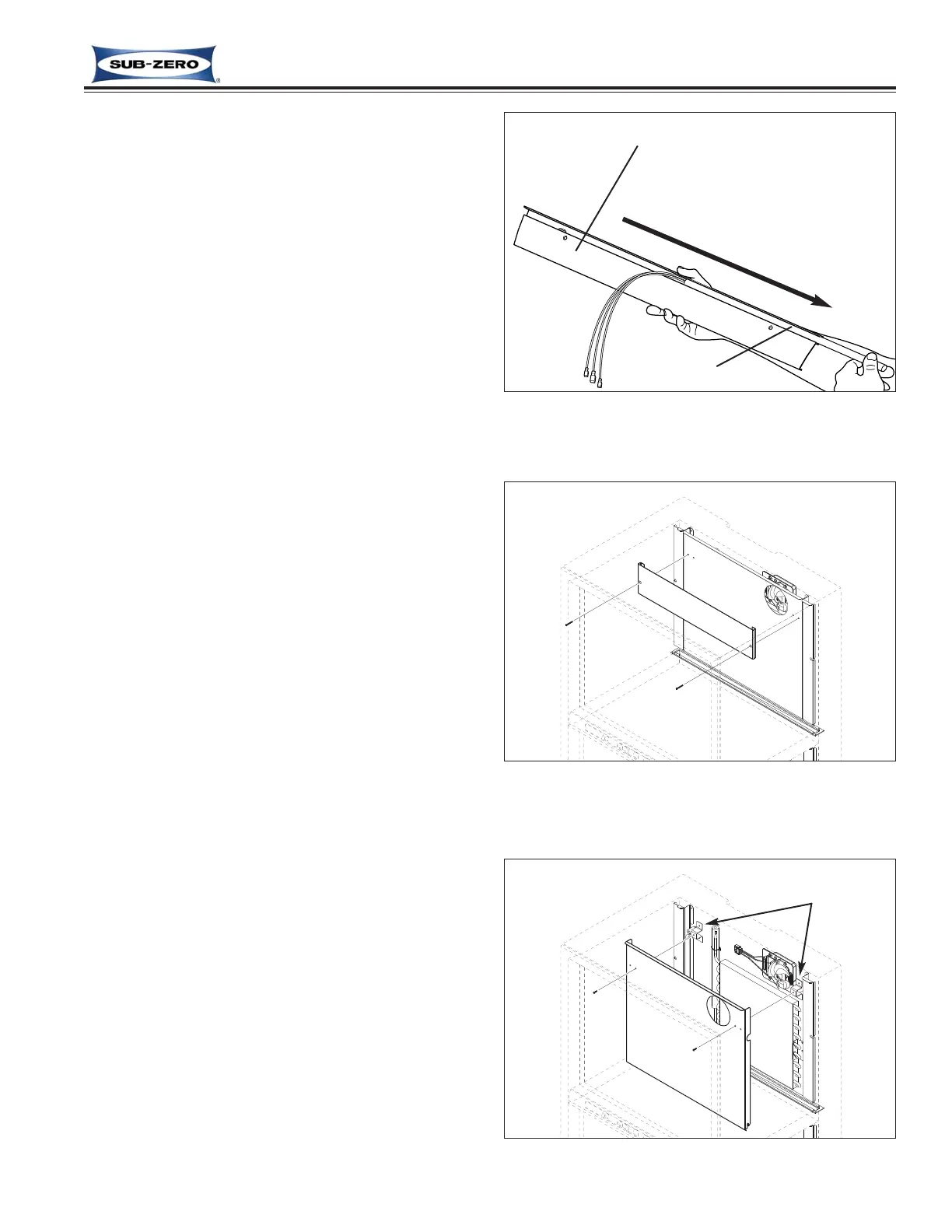

Figure 6-16. Upper Light Strip Removal
Slide light strip out end
of the channel.
Light Strip
Light Strip Housing
Figure 6-17. Upper Fan Cover Removal
Figure 6-18. Upper Duct Removal
Fan Cover
Upper
Duct
Stand-off
Brackets
To Next Page
