FILTERS AND MOISTURE SEPARATORS SECTION 4
44

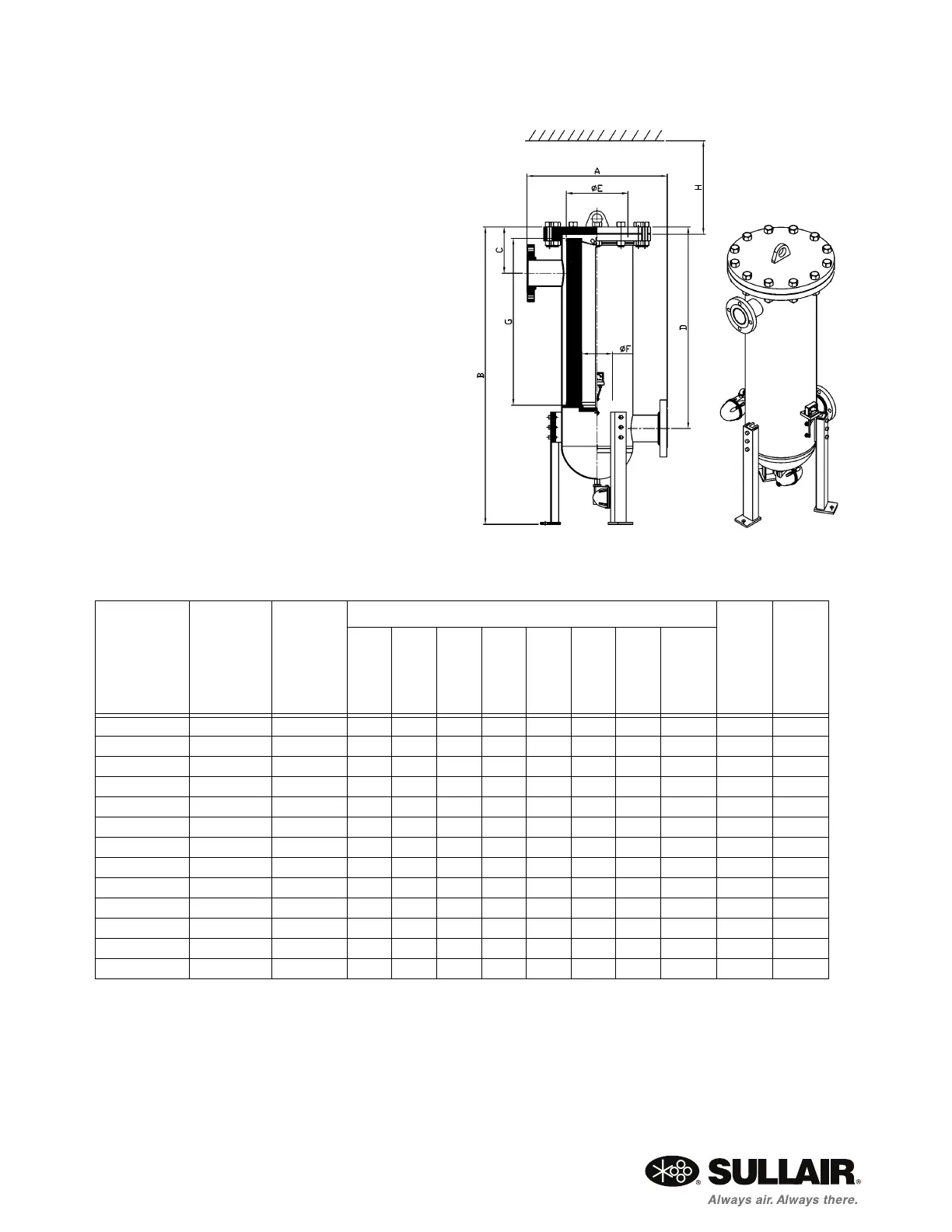

4.3 MIST ELIMINATORS
ELEMENTS
4.3.1 ELEMENTS:
• True Air / Oil Separator
• Long Service Life
• Ultra Low 0.5 ΔP Reduces Energy Costs
• Positive Gasket seals eliminate media
bypass
• Filter change out differential: 2.5 psid
PART NUMBER
MODEL
(FLOW)
INLET/
OUTLET
FLANGE
DIMENSION IN (in)
DRAIN
PORT
SIZE NPT/
BSPT
SEPARAT
OR QTY.
ABCDøEøFG
H
min
clearance
for
element
change
02250194-471 ELM-150 2” FLG 16 34 6 17 8 3 12 13 1/2” 1
02250194-472 ELM-300 2” FLG 16 38 6 21 8 3 16 17 1/2” 1
02250194-473 ELM-600 2” FLG 19 52 6 37 8 3 30 31 1/2” 1
02250194-474 ELM-800 3” FLG 19 56 7 43 8 3 36 37 1/2” 1
02250194-475 ELM-1200 3” FLG 23 52 7 38 10 3 30 31 1/2” 1
02250194-476 ELM-1600 3” FLG 23 58 8 41 10 3 36 37 1/2” 1
02250194-477 ELM-2100 4” FLG 25 55 9 38 14 4 30 31 1/2” 1
02250194-479 ELM-2750 4” FLG 25 61 9 44 14 4 36 37 1/2” 1
02250194-480 ELM-4200 6” FLG 27 56 9 38 16 6 30 31 1/2” 1
02250194-481 ELM-6000 6” FLG 27 66 10 49 16 6 40 41 1/2” 1
02250194-482 ELM-8000 8” FLG 30 67 10 49 18 8 40 41 1/2” 1
02250194-483 ELM-10000 10” FLG 34 70 12 50 20 12 40 41 1/2” 1
02250194-484 ELM-12000 12” FLG 34 90 12 71 20 12 60 61 1/2” 1
