Sullair SAR024 User Manual

2
Type Heatless
Model SAR
Operating flow range 14 cfm - 299 cfm ( 0.4m
3
/min - 8.47 m
3
/min )
Pressure Dewpoint:Nominal -40
o
C (-40
o
F)
Optional -70
o
C (-94
o
F)
Air quality : inc filtration (dirt. water. oil) ISO 8573.1 Class 1.2.1. Class 1.1.1 Optional
Maximum operating pressure SAR024 to SAR088 16 Bar(g) (232 psig)
SAR106 to SAR175 13 Bar(g) (188 psig)
Minimum operating pressure 4 Bar(g) (58 psig)
Maximum inlet temperature 50
o
C (122
o
F)
Minimum inlet temperature 5
o
C ( 41
o
F)
Regeneration Pressure Swing Adsorption (PSA)
Nominal pressure drop across desiccant bed 140 mBar (g) (2 psi g)
Standard electrical supply ( ± 10% ) 230 VAC . 1phase. 50/60 Hz
(Others on request) 110 VAC . 1phase. 50/60 Hz
Controls Electronic Control Timer
Noise level <75 dB (A)
Desiccant DRYFIL® ( Zeolite molecular sieve )
Material Column High tensile extruded aluminium.
Inlet/Outlet head Pressure die cast high tensile aluminium.
Finish Alocrom anti-corrosion protection and dry powder
epoxy painted.
Construction Column snow storm filled with desiccant material
and contained between the inlet and outlet head
using high tensile bolts.
IN
1
2
3
4
5
6
7
10
8
9
OUT

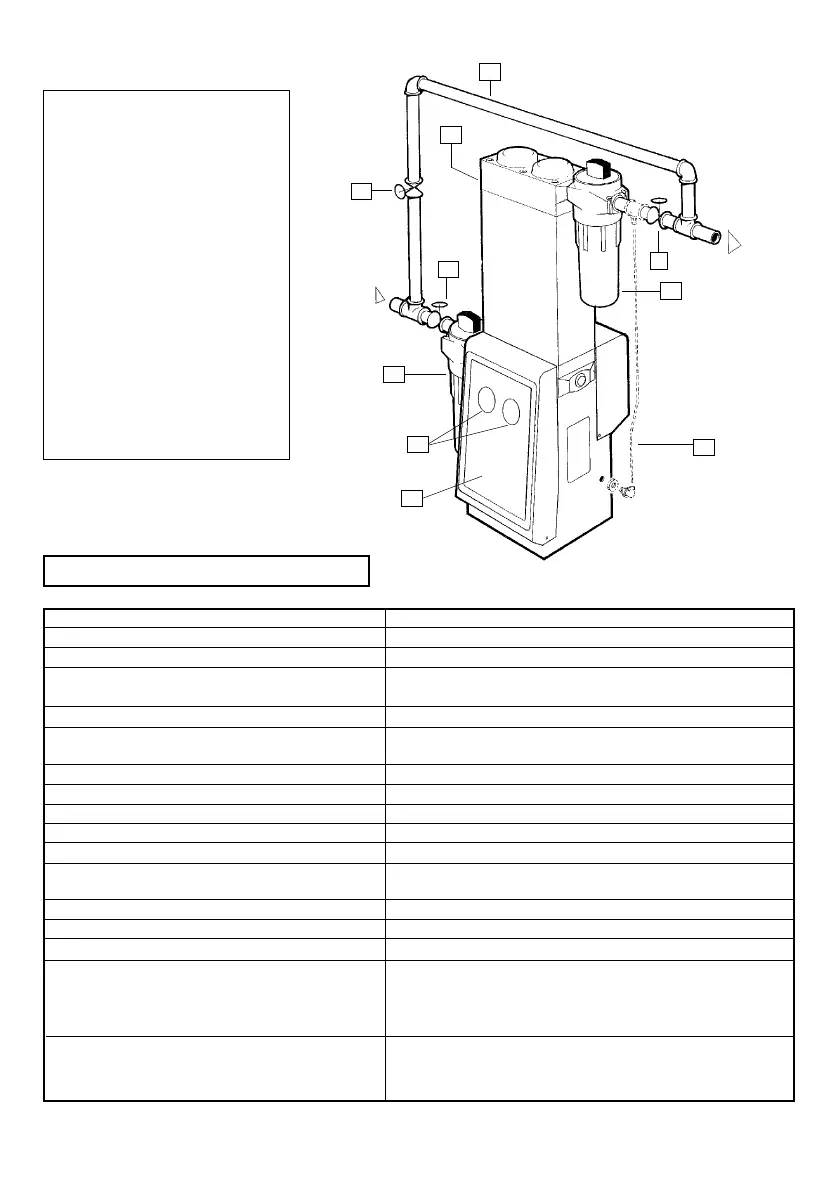

KEY
1 By-pass Valve
2 Inlet Valve
3 Inlet Filter
4 By-pass Line
5 Outlet Valve
6 Outlet Filter
7 Outlet Sight Glass
8 Pressure Gauges
9 Control Box
10 Feed Line
(Optional with
Dewpoint
Dependent
Switching)
2. TECHNICAL SPECIFICATION
Figure 1

Sullair SAR024 Specifications
