Sullair TS-20 Series User Manual

Section 7
ILLUSTRATIONS AND PARTS LIST
95

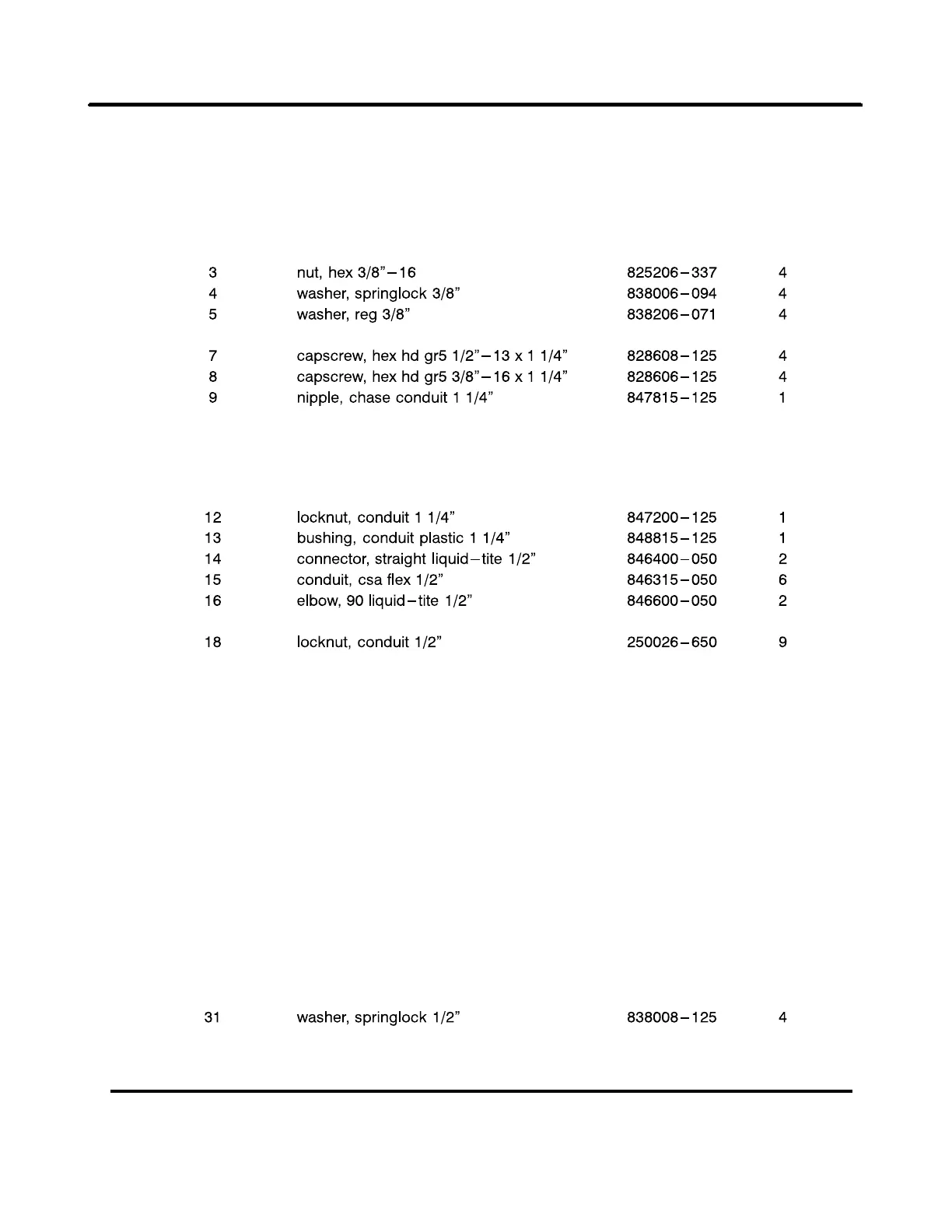

7.20 ELECTRIC CONTROL BOX --- ALL MODELS
key part
number description number quantity
1 wire, type g---gc 2/0 250014---311 5 ft.
2 grip, cord #1/0 250014---561 2
6 support, starter and cooler 250022---657 2
10 gasket, instrument panel 250019---557 1
11 starter, assembly size 4
(I)
1
S
starter, assembly size 5
(I)
1
S
starter, assembly size 5 5DP
S
(250 HP/187KW) 250030---563 1
17 fuse
(I)
1
19 transformer, control
(I)
1
20 fuse, KLDR 5
(I)
1
21 plate, ty---rap mounting 409796 3
22 wrap, tie plastic 84300---025 3
23 control, temperature 409270 2
24 terminal, block 250041---102 1
25 starter, size 0 (100 & 125HP/75 & 93KW)
(I)
1
S
starter, size 1 (150HP/125KW)
(I)
1
S
starter, (200HP/150KW)
(I)
1
26 holder, fuse 250019---773 1
27 fuse
(I)
3
28 starter, size 4 (100 & 125HP/75 & 93KW)
(I)
1
S
starter, size 5 (150HP/112KW)
(I)
1
S
coil, size 4 and 5 (120V)
(I)
1
S
coil, size 4 and 5 (240/480V)
(I)
1
29 bushing, conduit plastic 848815---200 1
30 locknut, conduit 847200--- 200 1
32 starter, (250HP/187KW) size 5DP 02250045---426 1
(I)
Thispartvarieswithcompressor.Consultfactorywithmachineserialnumber.
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
