Section 7
ILLUSTRATIONS AND PARTS LIST
101

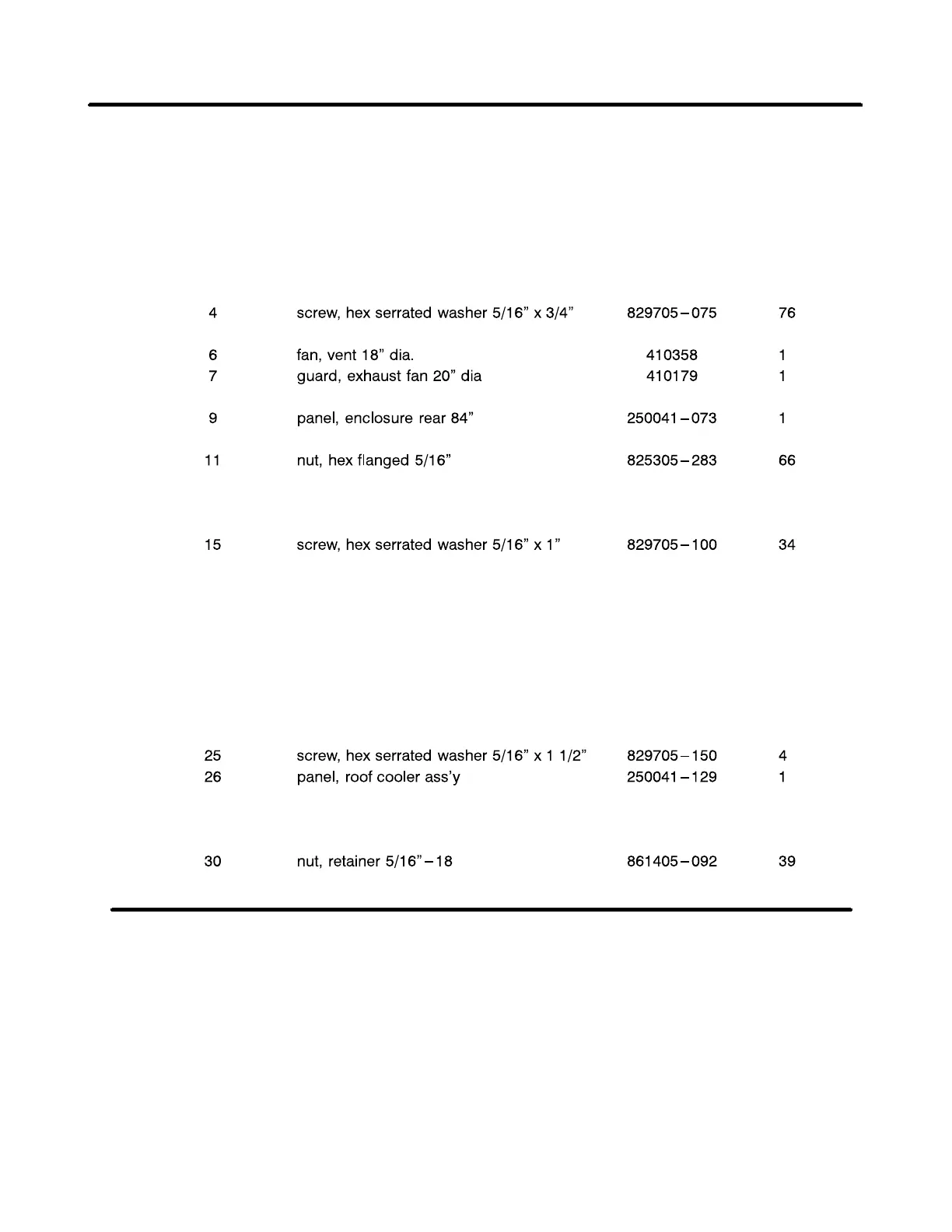

7.23 CANOPY--- ALL MODELS
key part
number description number quantity
1 guard, fan 241137 1
2 panel, roof 250022---724 1
3 panel, side 250024---012 1
5 clamp, wire 043194 16
8 panel, roof 250028---574 2
10 panel, corner RH 250042---880 2
12 panel, corner LH 250042---879 2
13 panel, enclosure front 250041---072 1
14 support 231516 1
16 channel, bottom 250028---543 2
17 panel, end 250041---074 2
18 panel, side access 017231 3
19 handle, retractable 405087 16
20 panel, end access 018922 4
21 channel, bottom 250022---772 2
22 channel, air/water connection 019603 2
23 grille 249651 2
24 motor, vent fan 1/4 HP 230/460 V 250000---031 1
27 angle, enclosure roof 250041---134 2
28 angle, formed enclosure 232876 2
29 panel, roof enclosure 250028---574 1
31 support, member 02250042---983 1
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
