Section 7
ILLUSTRATIONS AND PARTS LIST
105

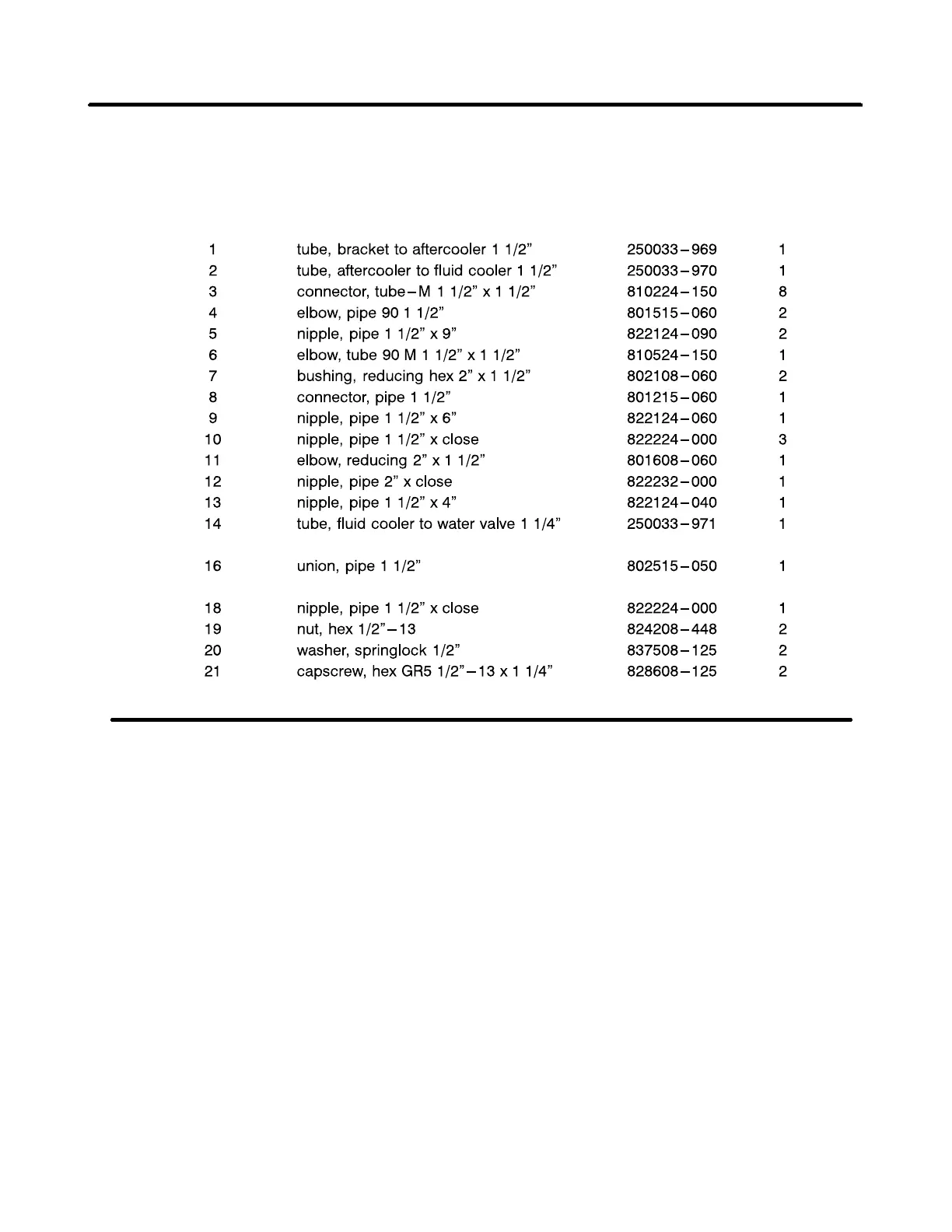

7.25 COOLER/AFTERCOOLER WATER PIPING --- 200HP/150KW
key part
number description number quantity
15 valve, water regulating 049474 1
17 elbow, pipe 801515---050 1
22 bracket, water connection 250027---022 1
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
