Section 7
ILLUSTRATIONS AND PARTS LIST
49

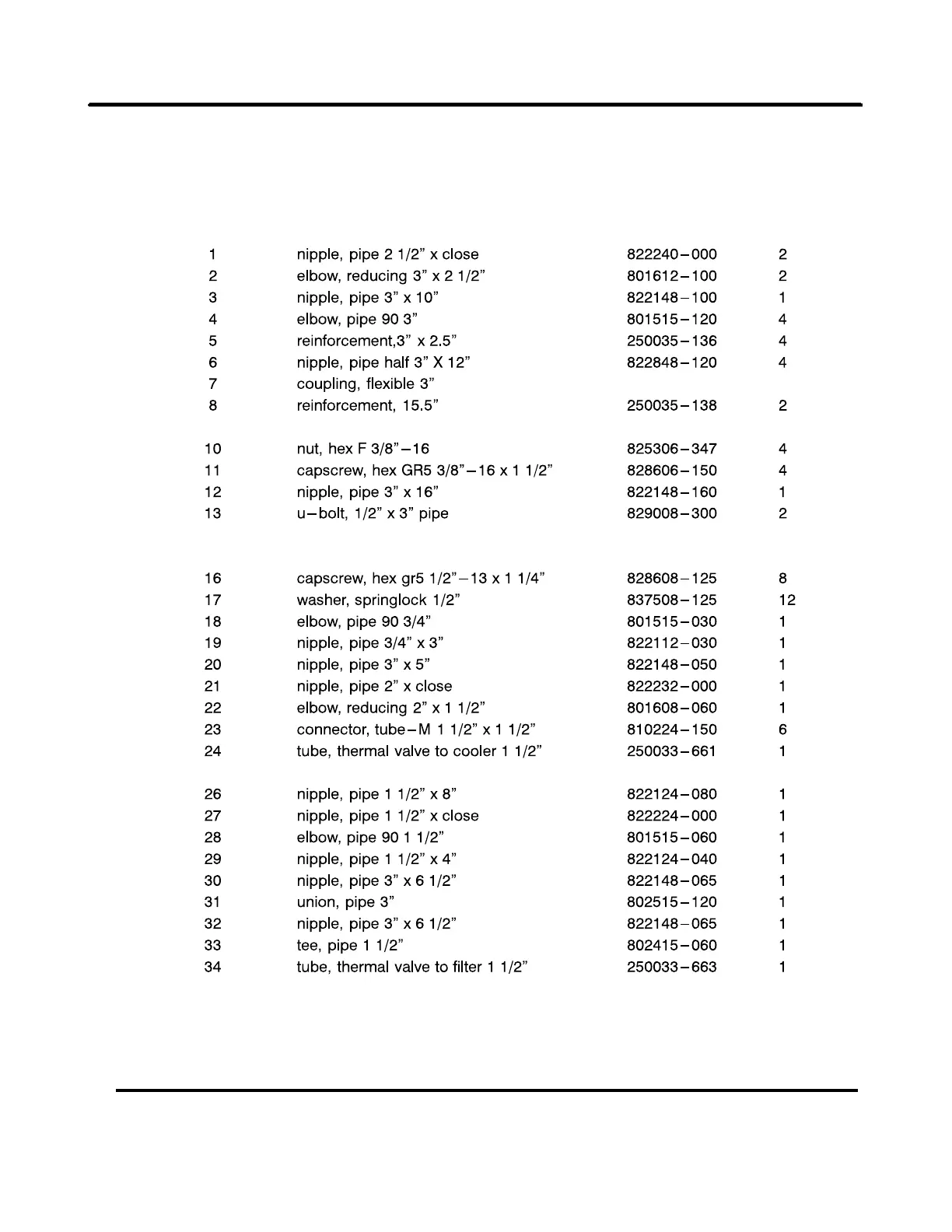

7.9 COMPRESSOR COOLING AND LUBRICATION SYSTEM --- 200HP/150KW (AIR---COOLED)
key part
number description number quantity
(I)
040327 2
9 cooler, fluid and after 250022---529 1
14 separator, moisture 250007---787 1
15 support, moisture separator 250023---077 2
25 thermal, valve
(II)
014512 1
(Continued on Page 51)
(I)
For maintenance on flexible coupling no. 040327, order replacement gasket no. 040523 (2 required).
(II)
For maintenance on thermal valve no. 014512, order repair kit no. 001168.
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
