Section 7
ILLUSTRATIONS AND PARTS LIST
57

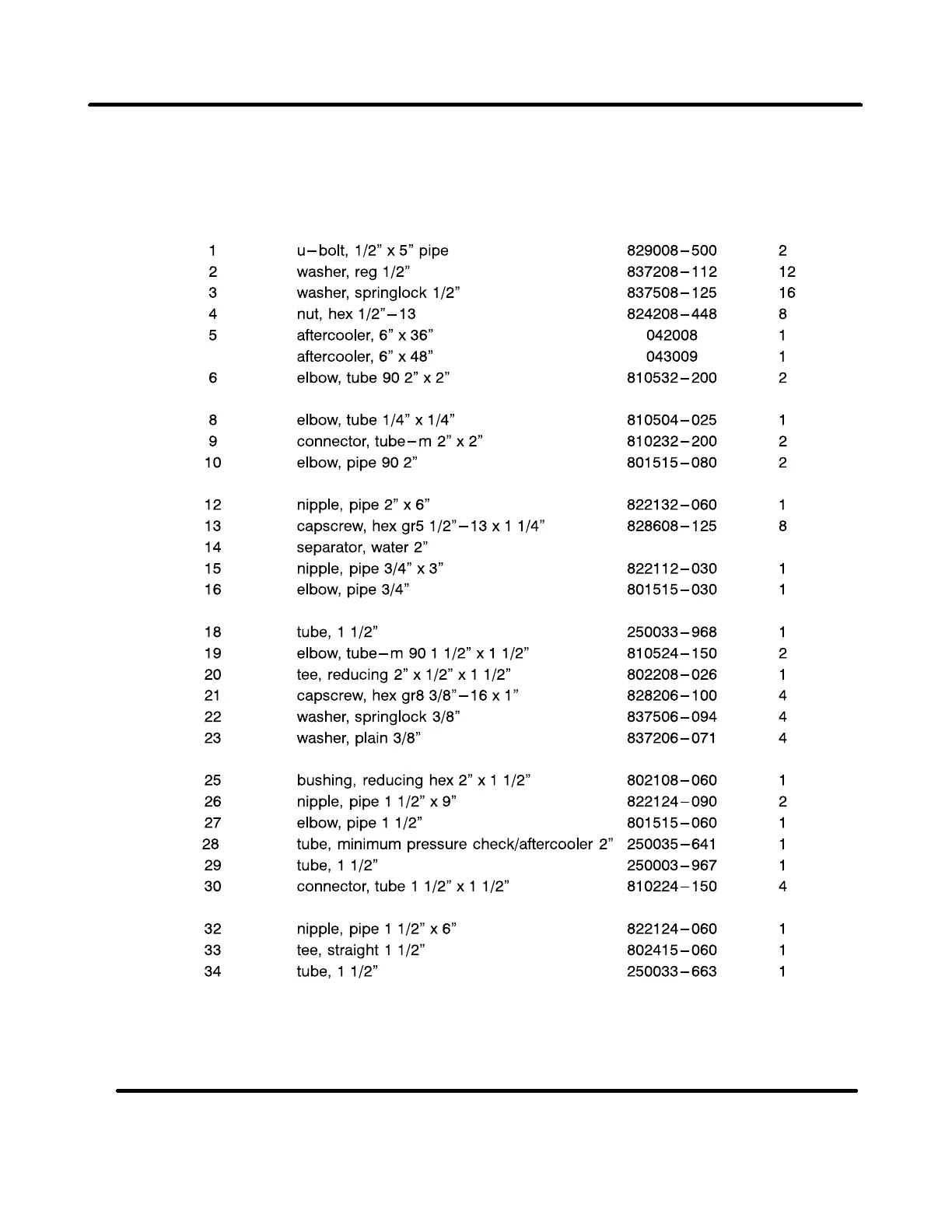

7.11 COMPRESSOR COOLING AND LUBRICATION SYSTEM --- 100HP/75KW (WATER---COOLED)
key part
number description number quantity
7 tube, aftercooler/separator 250035---642 1
11 clamp, exhaust 043203 2
(I)
410143 1
17 support, moisture separator 250023---077 2
24 cooler, fluid 040751 1
31 valve, thermal
(II)
014512 1
(Continued on Page 59)
(I)
For maintenance on water separator no. 410143, order repair kit no. 250033---038.
(II)
For maintenance on thermal valve no. 014512, order repair kit no. 001168.
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
