Section 7
ILLUSTRATIONS AND PARTS LIST
65

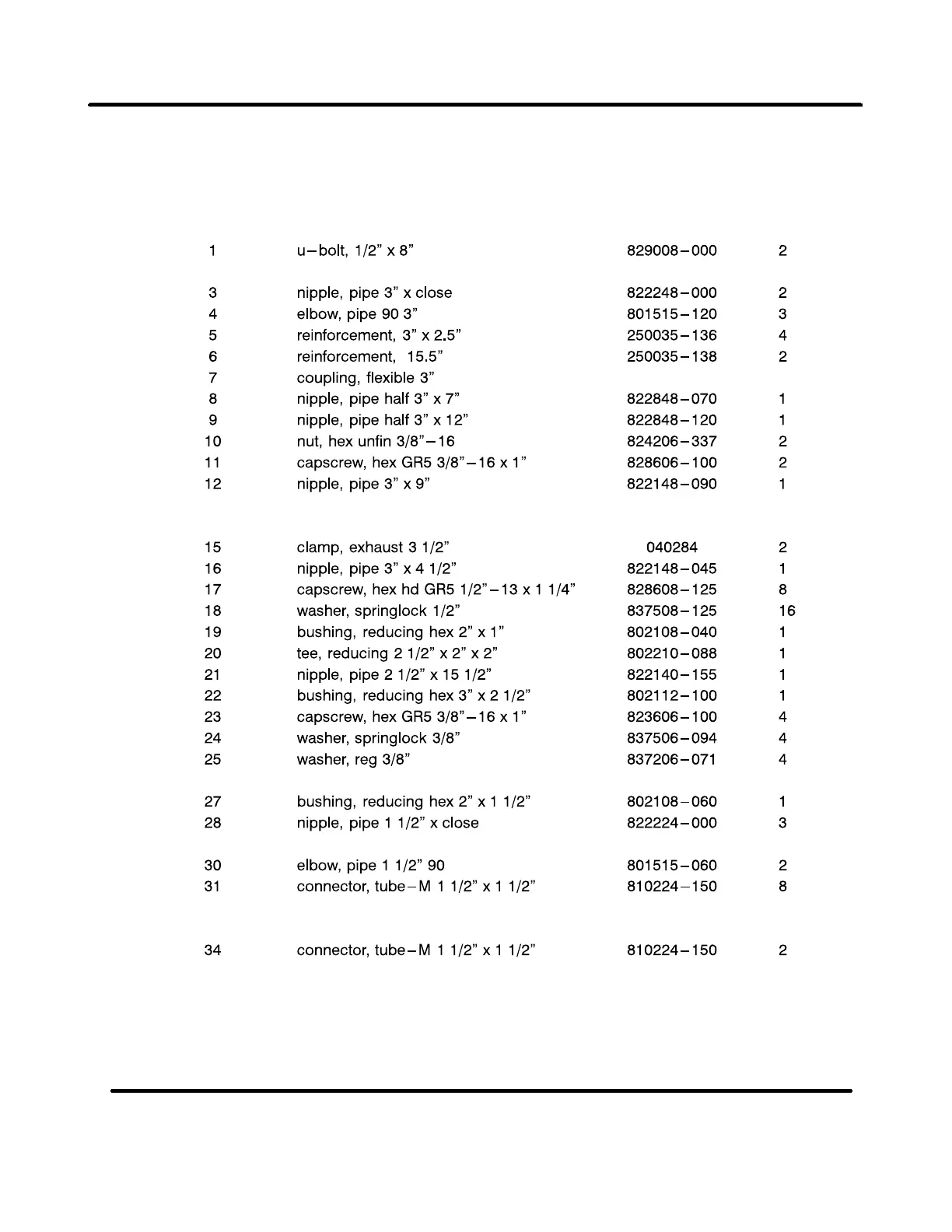

7.13 COMPRESSOR COOLING AND LUBRICATION SYSTEM---200HP/150K W (WATER---COOLED)
key part
number description number quantity
2 aftercooler 042541 1
(I)
040327 1
13 support, moisture separator 250023---077 2
14 separator, moisture 250007---787 1
26 exchanger, heat 043031 1
29 valve, thermal
(II)
014512 1
32 tube 250033---967 1
33 reducer, bell conector 801012---010 1
35 tube 250033---663 1
(Continued on Page 67)
(I)
For maintenance on flexible coupling no. 040327, order replacement gasket no. 040523 (2 required).
(II)
For maintenance on thermal valve no. 014512, order repair kit no. 001168.
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
