Section 7
ILLUSTRATIONS AND PARTS LIST
69

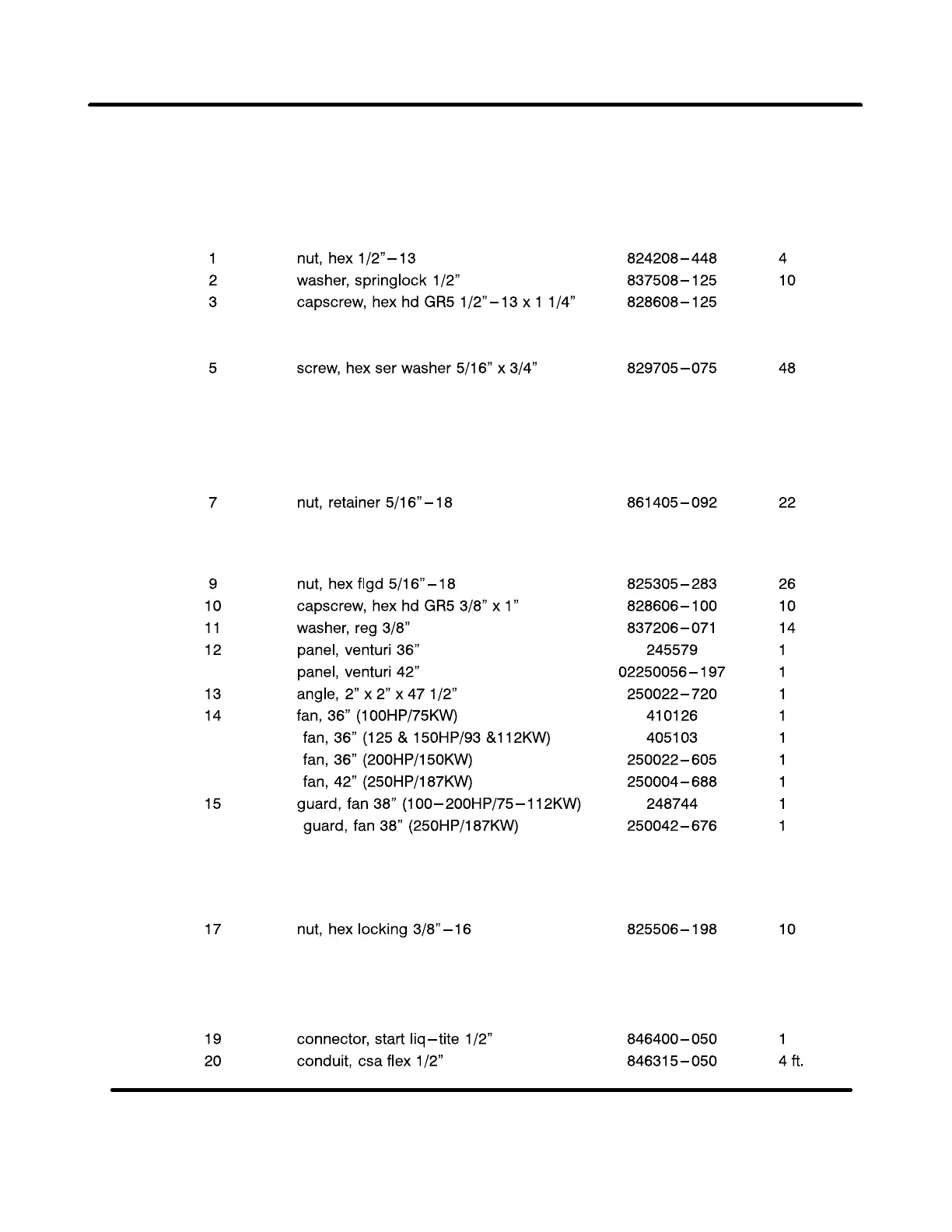

7.14 COOLER ASSEMBLY --- ALL MODELS
key part
number description number quantity
4 support, cooler (100---200HP/75---150KW) 250027---038 2
support, cooler (250HP/187KW) 02250056---273 2
6 cooler, combo fluid and aftercooler
(100HP/75KW) 250038---020 1
S
cooler, combo fluid and aftercooler
(125, 150 & 200/ 93,112 &150KW) 250022---529 1
S
cooler, combo fluid and aftercooler
(250HP/187KW) 02250053---217 1
8 adapter, venturi panel
(100---200HP/75---150KW) 250022---715 1
S
adapter, venturi panel (250HP/187KW) 02250056---198 1
S
S
S
S
16 support, fan motor
(100---150HP/75---112KW) 015641 1
S
support, fan motor (200HP/150KW) 250022---721 1
S
support, fan motor (250HP/187KW) 02250056---077 1
18 motor, 3HP (100HP/75KW) 050257 1
S
motor, 5HP (125 & 150HP/93&112KW) 050774 1
S
motor, 7.5HP (200HP/150KW) 050795 1
S
motor, 5HP (250HP/187KW) 02250055---586 1
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
