Section 7
ILLUSTRATIONS AND PARTS LIST
77

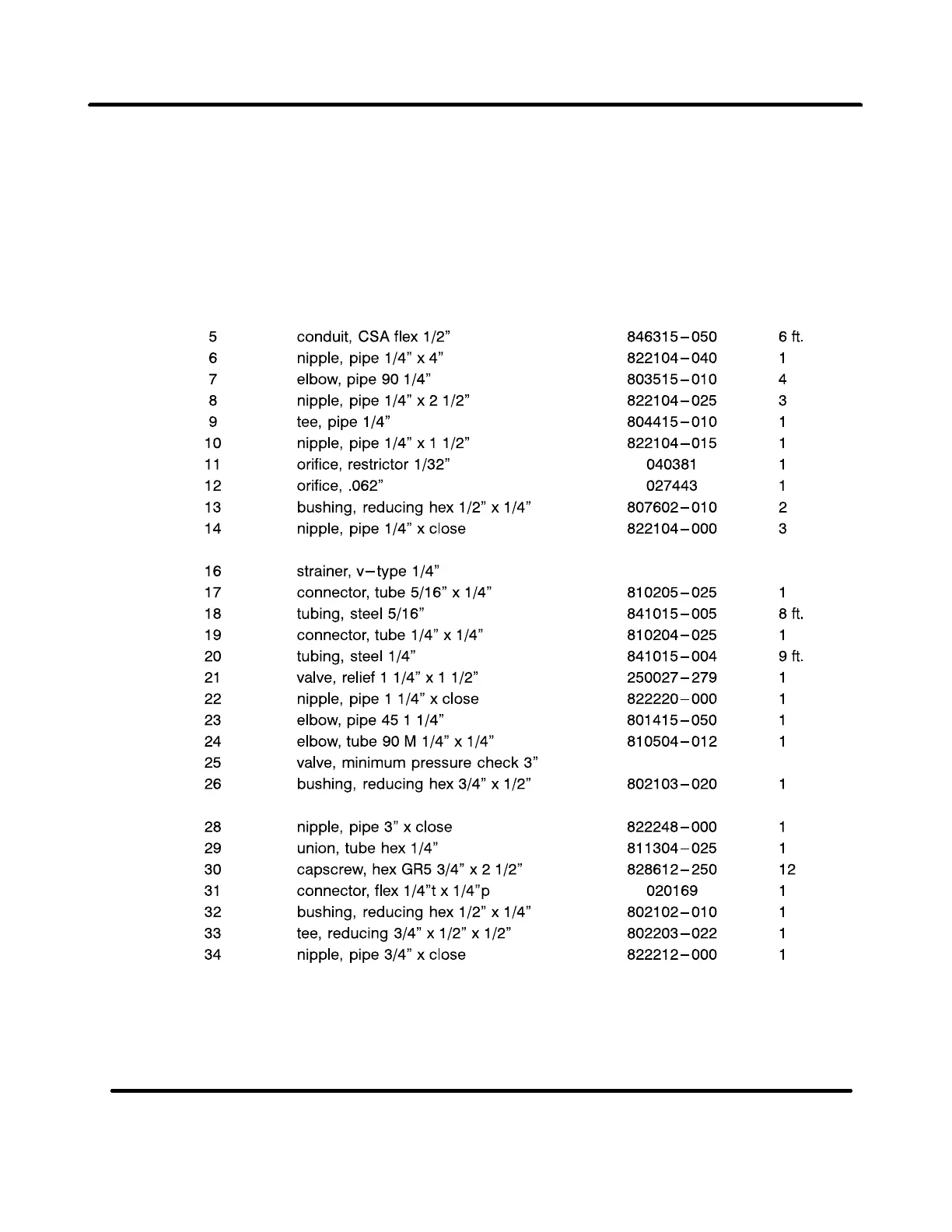

7.16 COMPRESSOR DISCHARGE SYSTEM --- 200HP/150KW
key part
number description number quantity
1 probe, thermistor 046867 3
2 locknut, conduit 847200---050 7
3 elbow, entrance 847715---050 1
4 connector, straight lq---tite 846400---050 2
15 glass, sight 046559 2
(I)
241771 2
(II)
250033---821 1
27 probe 046867 1
(Continued on Page 79)
(I)
For maintenance on v---type strainer no. 241771, order repair kit no. 241772.
(II)
For maintenance on minimum pressure/check valve no. 250033---821, order repair kit no.
250018---262.
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
