Section 7
ILLUSTRATIONS AND PARTS LIST
79

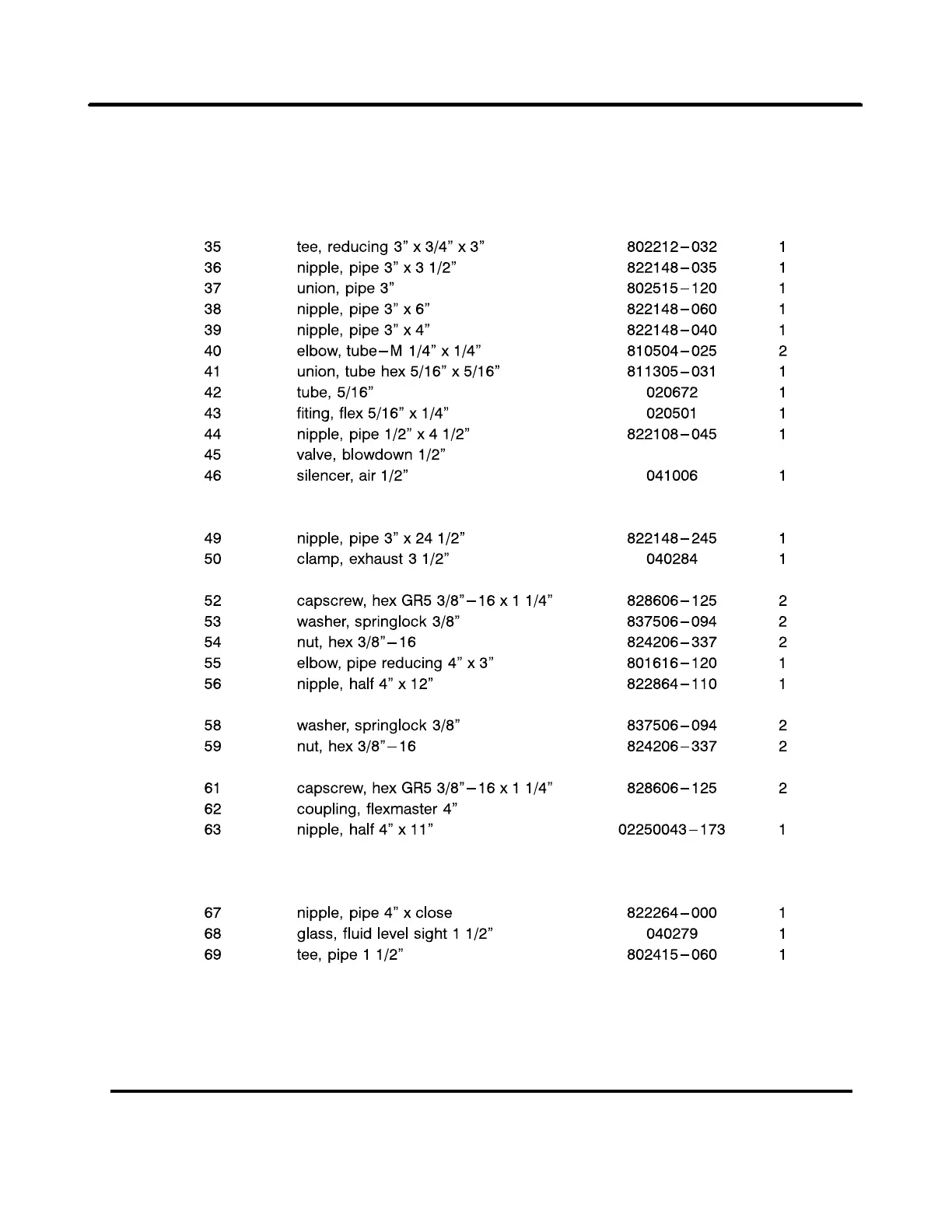

7.16 COMPRESSOR DISCHARGE SYSTEM --- 200HP/150KW (Continued)
key part
number description number quantity
(III)
250030---276 1
47 element, separator secondary 250034---133 1
48 valve, discharge
(IV)
018435---003 1
51 support, discharge pipe 250033---187 1
57 reinforcement 227152 2
60 reinfocement 227154 1
(V)
041085 1
64 probe 042582 1
65 probe, thermistor 046867 1
66 elbow, pipe 90 801515---160 1
(Continued on Page 81)
(III)
For maintenance on blowdown valve no. 250030---276, order repair kit no. 02250045---132.
(IV)
For maintenance on discharge check valve no. 018432---003, order repair kit no. 606206---001.
(V)
For maintenance on flexible coupling no. 041085, order replacement gadget no. 041353 (2 required).
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
