26
Note: shows number 0 or 5.

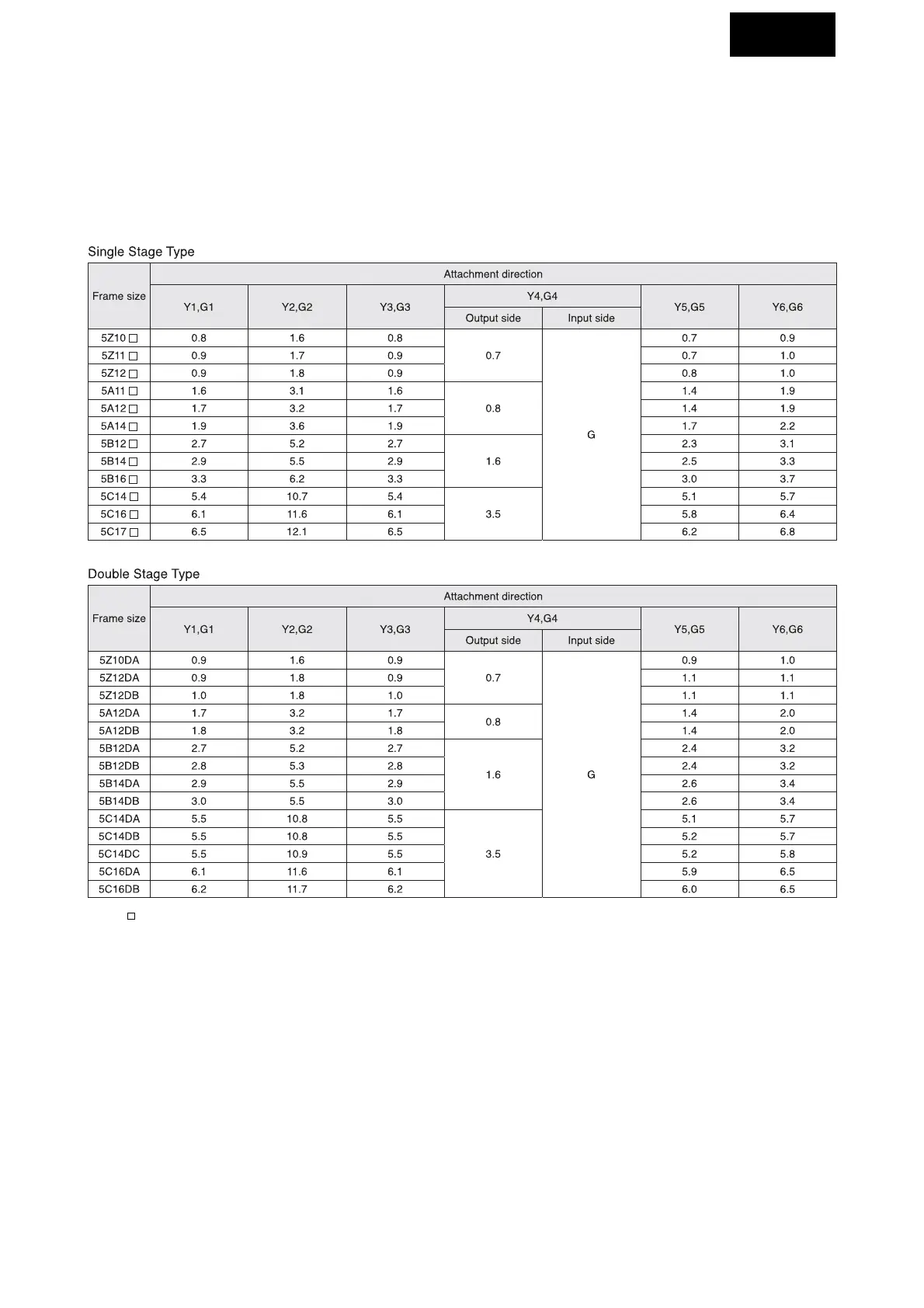

Table 13-a Approximate Amount of Oil Supply for Bevel BUDDYBOX (4 series) [L]
Single Stage Type
Output side: Bevel-gear, Input side: CYCLO DRIVE
G: Grease lubrication (Refer to table 20 on page 30 for amount of grease when refilling.)
COMMON
(3) Amount of Oil Supply
· Table 13 and 14 shows approximate amount of oil.
· Always check the level of oil surface through oil gauge for Bevel BUDDYBOX or overflow plug for helical BUDDYBOX.
To Next Page
