Sumitomo Bevel BUDDYBOX 4 Series User Manual

38
COMMON
No. Part name
1 Casing
2 Gear
3 Rectangular parallel key
4 Hollow shaft
5 Cover
6 Bush
7 Air vent
8 Pinion shaft
9 Pinion shaft A bearing
10 O-ring
11 Shim
12 Hexagon head bolt
13 Spring washer
14 Pinion shaft B bearing
15 Flanged casing
No. Part name
16
Hexagon socket head plug (brimmed)
17 Hexagon socket head bolt
18 Spring washer
19 End plate
20 Collar
21
Hexagon socket head plug (brimmed)
22 Oil seal
23 Hexagon head bolt
24 O-ring
25 Shim
26 Nilosring
27 Output shaft bearing
No. Part name
51 Pin carrier pin
52 Ring gear housing
53 Ring gear pin
54 Spacer ring
55 Eccentrinc bearing
56 Pin carrier roller
57 Cycloid disc
58 Spacer
59 External retaining ring
60 Pin carrier
61 External retaining ring
62 High speed shaft A bearing
63 External retaining ring
64 High speed shaft B bearing
65 Oil seal
No. Part name
66 High speed shaft
67 Collar
68 Spacer
69 Spacer
Table 24 Main parts of Bevel Buddybox gears

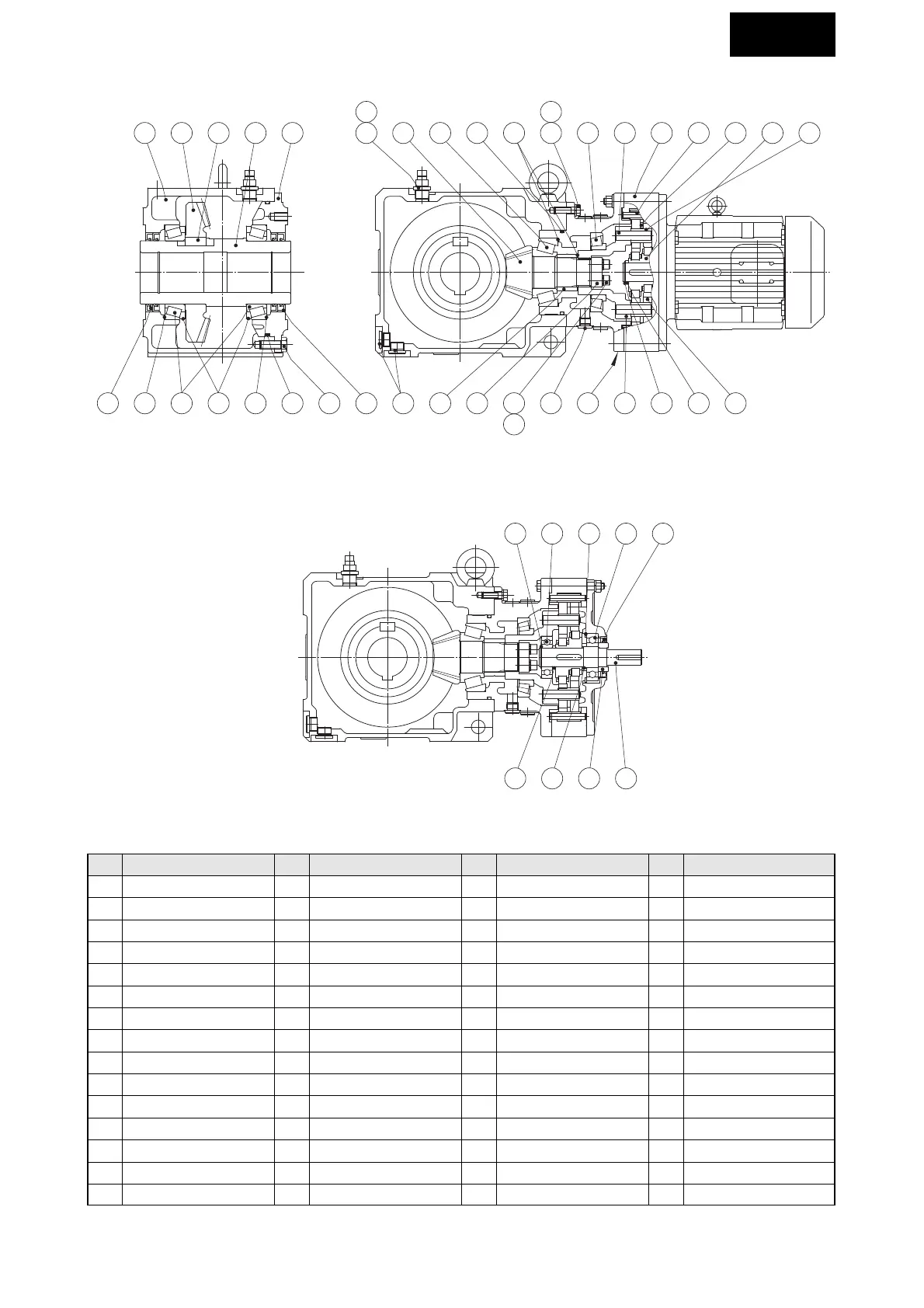

Fig. 30 LHYM3-4C145 (4 series)
Fig. 31 LHY-4C145 (4 series)
1 2 3 4 5 6 8 9 10 11
13
14 51 52 53
7
54 55
21 20 19 17 16 15 60 59 58 5725 27 26 25 24 23 22
18
12 56
22
61 62 63 64 65
69 68 67 66
