Sumitomo Bevel BUDDYBOX 4 Series User Manual

37
COMMON
1
3
2
4
5
6
8
9
10
11
51
52
53
54
55
56
7
57
58
59
12
14
15
16
17
181920
2122232418
13

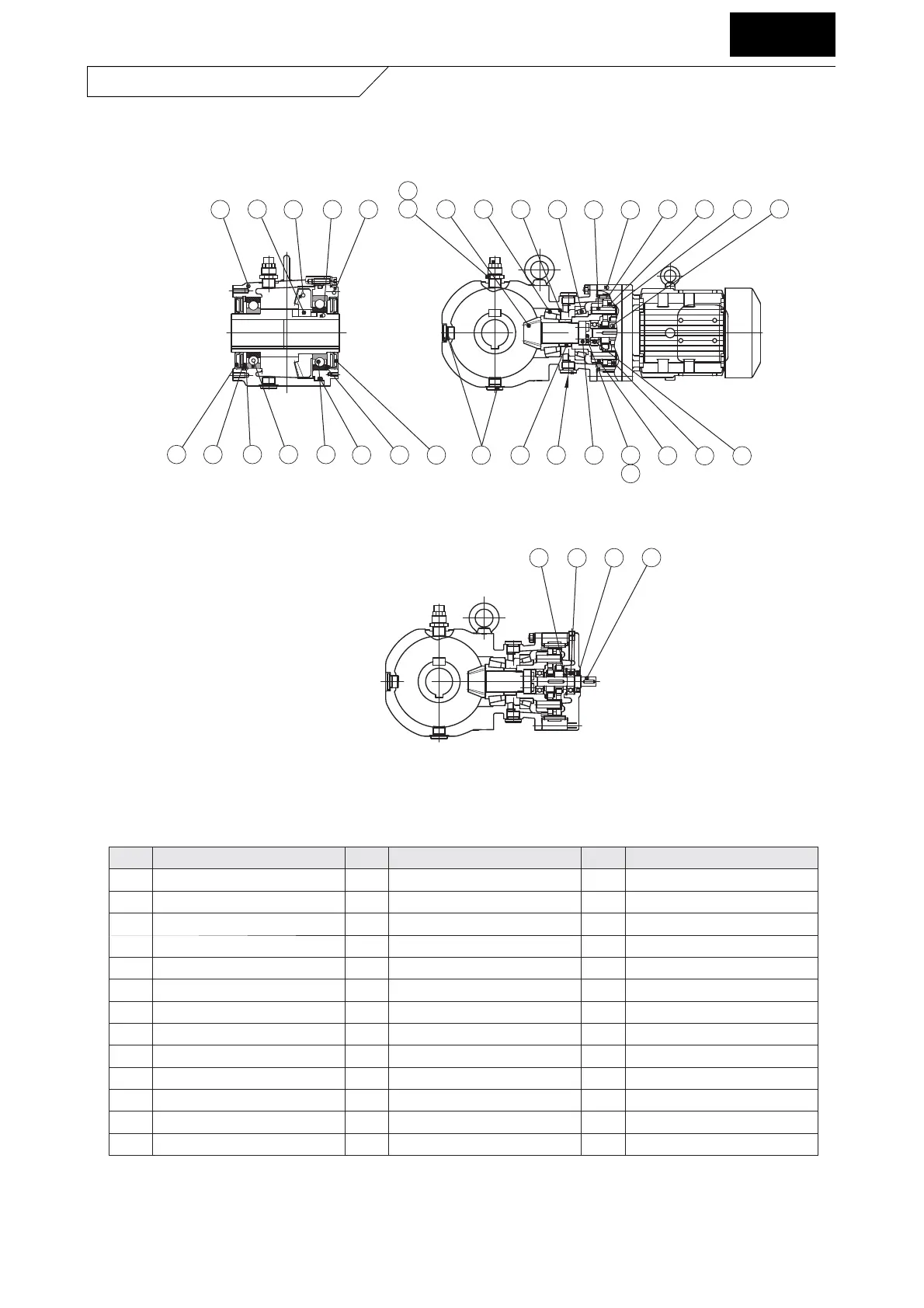

Fig.28 LHYM1-5Z115-Y1 (5 Series)
60
61
62
63
Fig.29 LHY-5Z115-Y1 (5 Series)
Table24 Main parts of Bevel Buddybox gears (5 Series)
No. Part name No. Part name No. Part name
1 Casing 14 End plate 51 Pin carrier pin
2 Gear 15 Hexagon socket head bolt 52 Ring gear housing
3 Rectangular parallel key 16 Collar 53 Ring gear pin
4 Hollow shaft 17 Hexagon socket head bolt 54 Spacer ring
5 Cover 18 Oil seal 55 Pin carrier roller
6 Bush 19 Shim 56 Eccentric bearing
7 Air vent 20 O-ring 57 Cycloid disc
8 Pinion shaft 21 Output shaft A bearing 58 Pin carrier
9 Pinion shaft A bearing 22 Output shaft B bearing 59 Input shaft A bearing
10 Shim 23 Shim 60 Spacer
11 Pinion shaft B bearing 24 retaining ring 61 Input shaft B bearing
12 Hexagon head bolt 62 Oil seal
13 Spring washer 63 Input shaft
Parts No.21,22 : Output shaft bearing A,B of size Z are boll bearings, and them of other size are roller bearings.
10. Construction Drawing
10-1) Construction Drawing of Gear part
