Sumitomo Bevel BUDDYBOX 4 Series User Manual

40
COMMON
No. Part name
1 Casing
2 Bush
3 Air vent
4 Cover
5 Gear
6 Hexagon head bolt
7 Spring washer
8 External retaining ring
9 Internal retaining ring
10 Output shaft bearing
11 Oil seal
12 Spacer
13 External retaining ring
No. Part name
14 Hexagon socket head plug
15 Pinion shaft B bearing
16 Pinion shaft spacer
17 Oil seal
18 Hexagon socket head plug
19 Seal cap
20 Pinion shaft
21 External retaining ring
22 Pinion shaft A bearing
23 Internal retaining ring
24 Hollow shaft
25 Rectangular parallel key
No. Part name
51 Pin carrier pin
52 Ring gear housing
53 Ring gear pin
54 Spacer ring
55 Eccentric bearing
56 Pin carrier roller
57 Cycloid disc
58 Spacer
59 External retaining ring
60 Pin carrier
61 External retaining ring
62 High speed shaft A bearing
63 Internal retaining ring
No. Part name
64 High speed shaft B bearing
65 Oil seal
66 High speed shaft
67 Collar
68 Spacer
69 Spacer

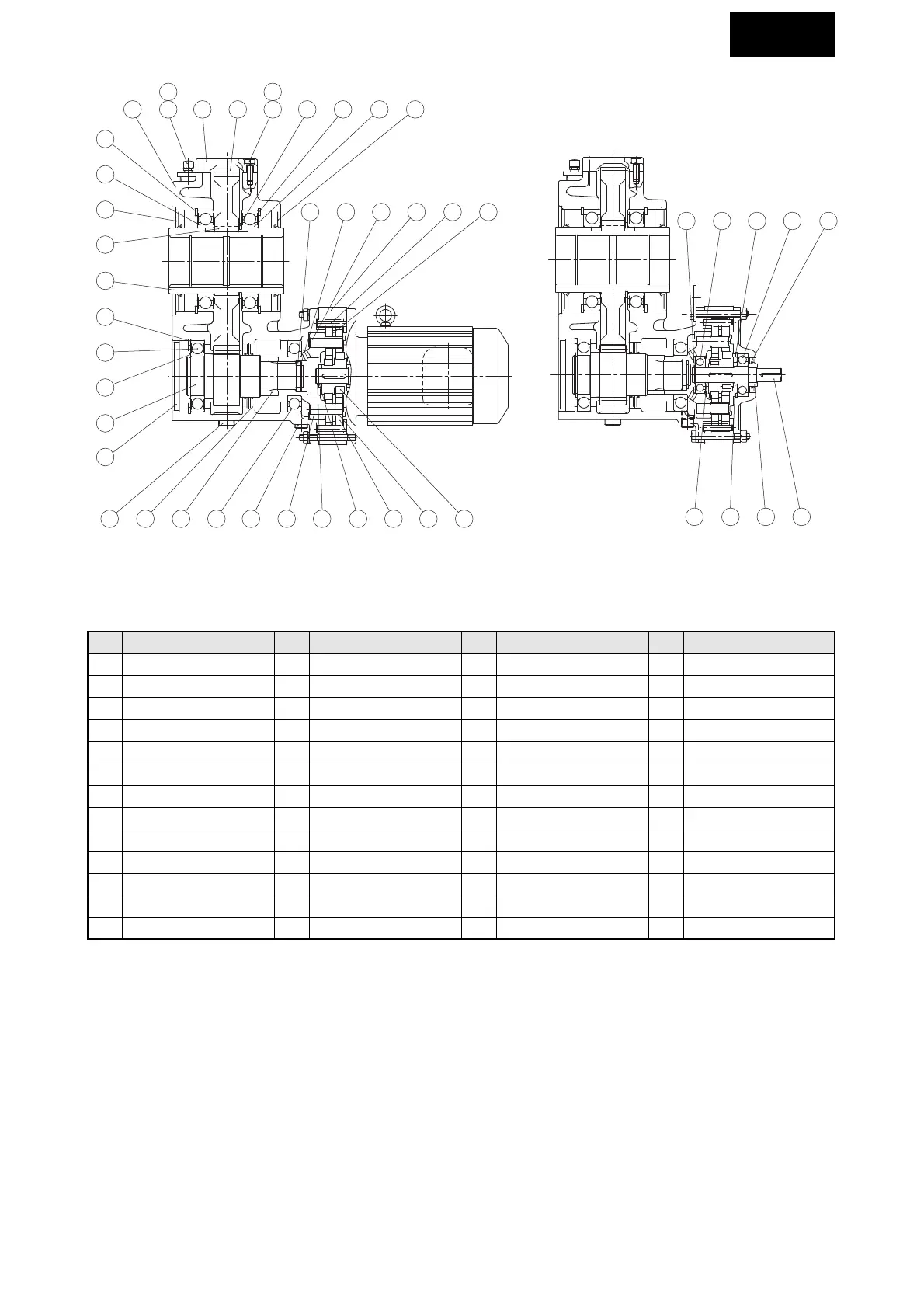

Table 26 Main parts of Helical Buddybox gears
Fig. 34 EHYM3-C6145 Fig. 35 EHY-C6145
60
52
53
54
555657
58
59
51
1
2
4
5
689
10 11
37
9
10
11
12 13
1415
16
1718
19
20
21
22
23
24
25
6667
65646362
61
6869
