Sumitomo F-20L - PARTS; Ordering Information and Tool Kits

Parts
51
Ordering
The nameplate fastened to the front panel of the compressor housing identifies the compressor
as follows:
Model Number
Part Number
Serial Number
Date of Manufacture
Furnish this complete information when ordering parts. Also, order parts by part number and
name. Refer to the next section for Parts Identification and Numbers.
Installation Tool Kit
The following installation tool kit is used for installing or servicing the F-20L compressor and is
available as an accessory from SCAI Installation tool kit P/N 267990A consists of:
Item
Quantity
Part Name
Part Number
1
1 Wrench installation kit for ½” gas lines 255438A
2
2 Charge and vent tool kit 267190A
3
2 Water adapter fitting ½” FNPT to ½” ID
Hose
269725B
Adapter Fittings
The following adapter fittings, required for servicing the F-20L Compressor, are available as
accessories from SCAI.
Item
Quantity
Description
Part Number
Figure
1
2 Adapter fitting, 8Fwith valve 255919B2 21
(1)
Denotes size 8, female, Aeroquip coupling.
(2)
Denotes size 8, male, Aeroquip coupling.

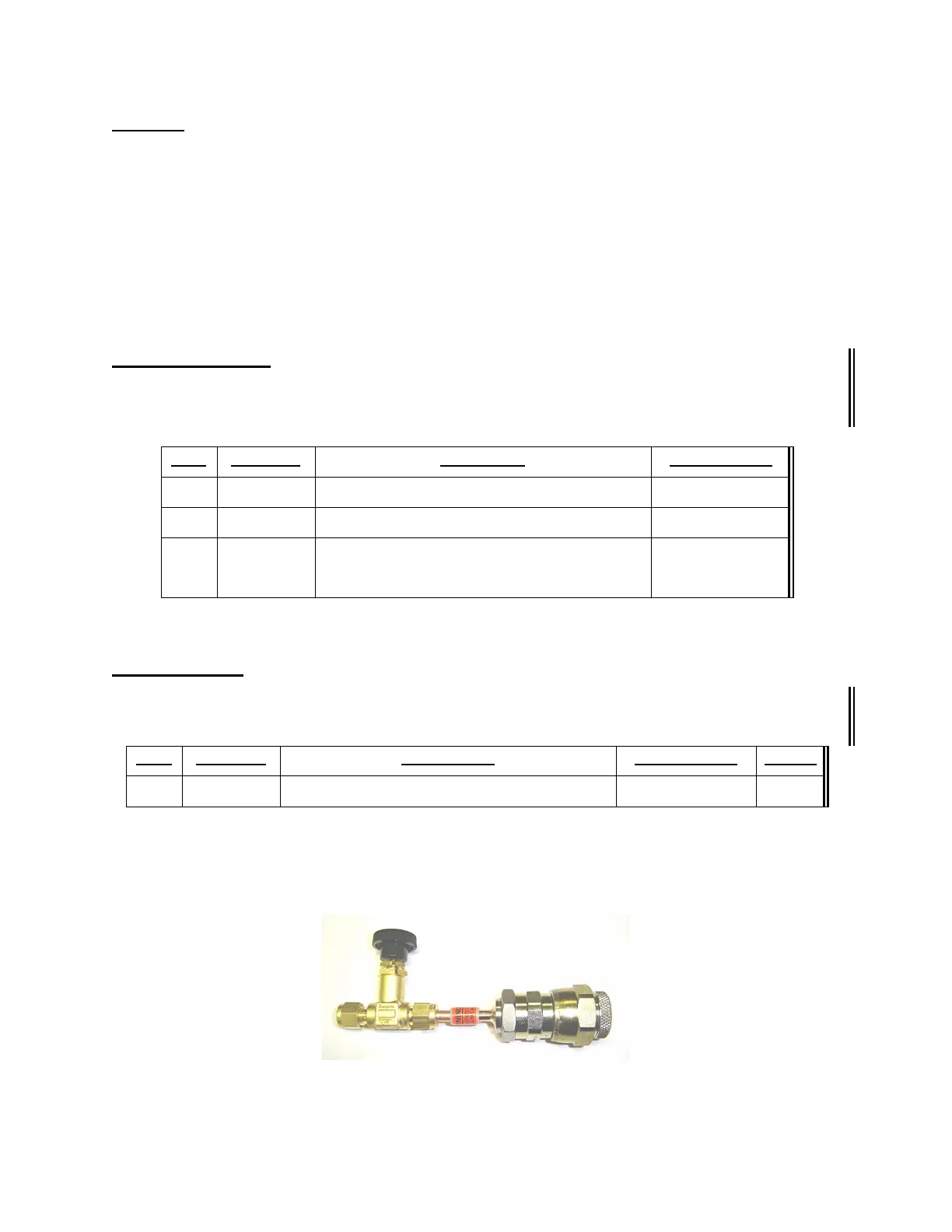

Figure 21 Adapter Fitting, 8F with Valve
