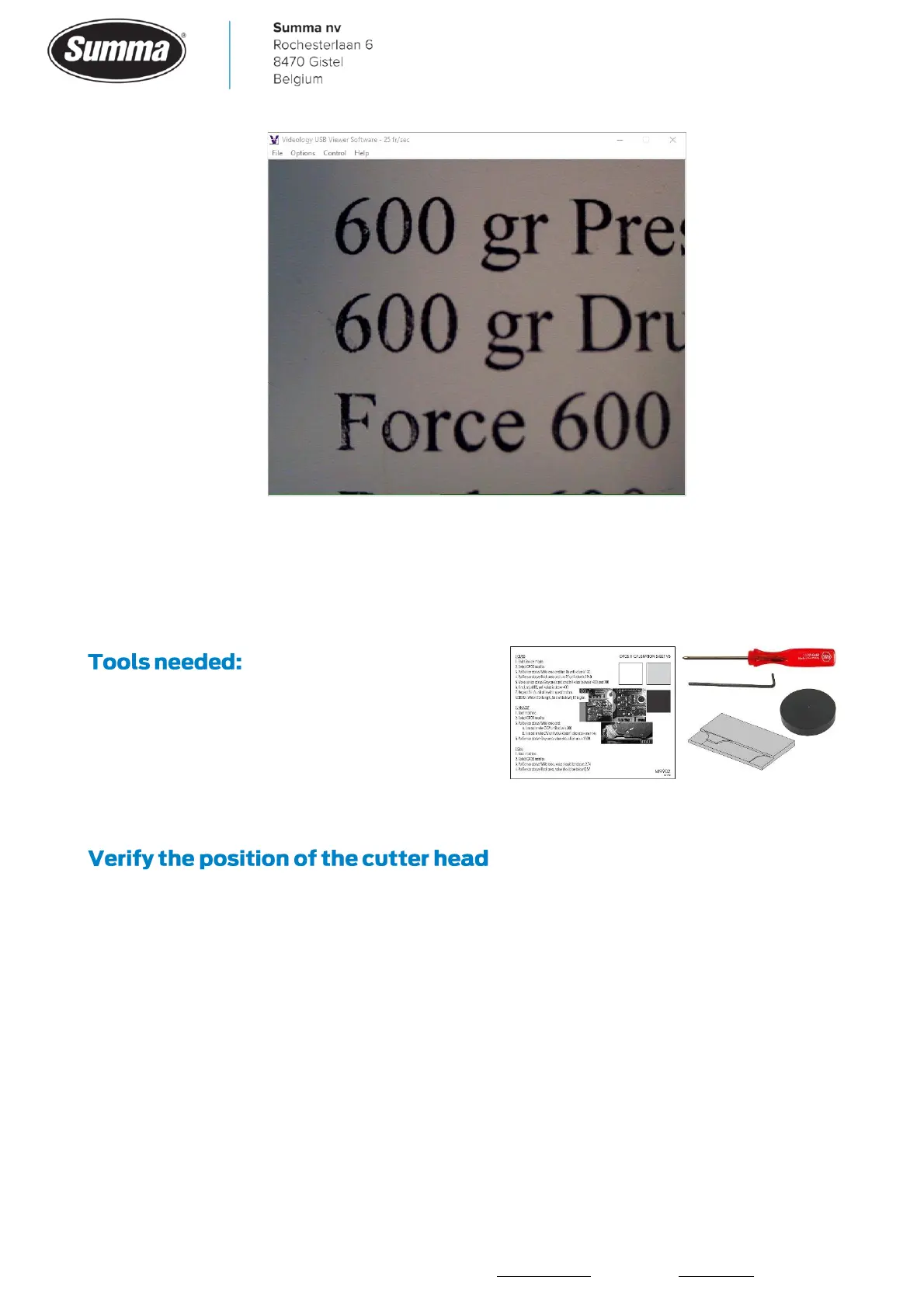

Check camera focus
This procedure describes how to adjust the focus of the camera used for detecting the
position of the OPOS registration markers.
• Screwdriver PHD #0
• Hex Wrench #0.9mm
• Height Adjustment Tool
The above tools are included in the kit KIT-3037, Kit Calibration Jigs.
The distance between the nose piece and the cutting strip should be approximately 2.7 mm
(see picture below). It is advised to use the “Height Adjustment Tool” to verify the height. If
this distance is not correct, it needs to be adjusted before continuing the calibration
procedure. The head should be installed perpendicular. See the tangential head
replacement instructions for more details.
