Sumo DTS Series - Page 34

34

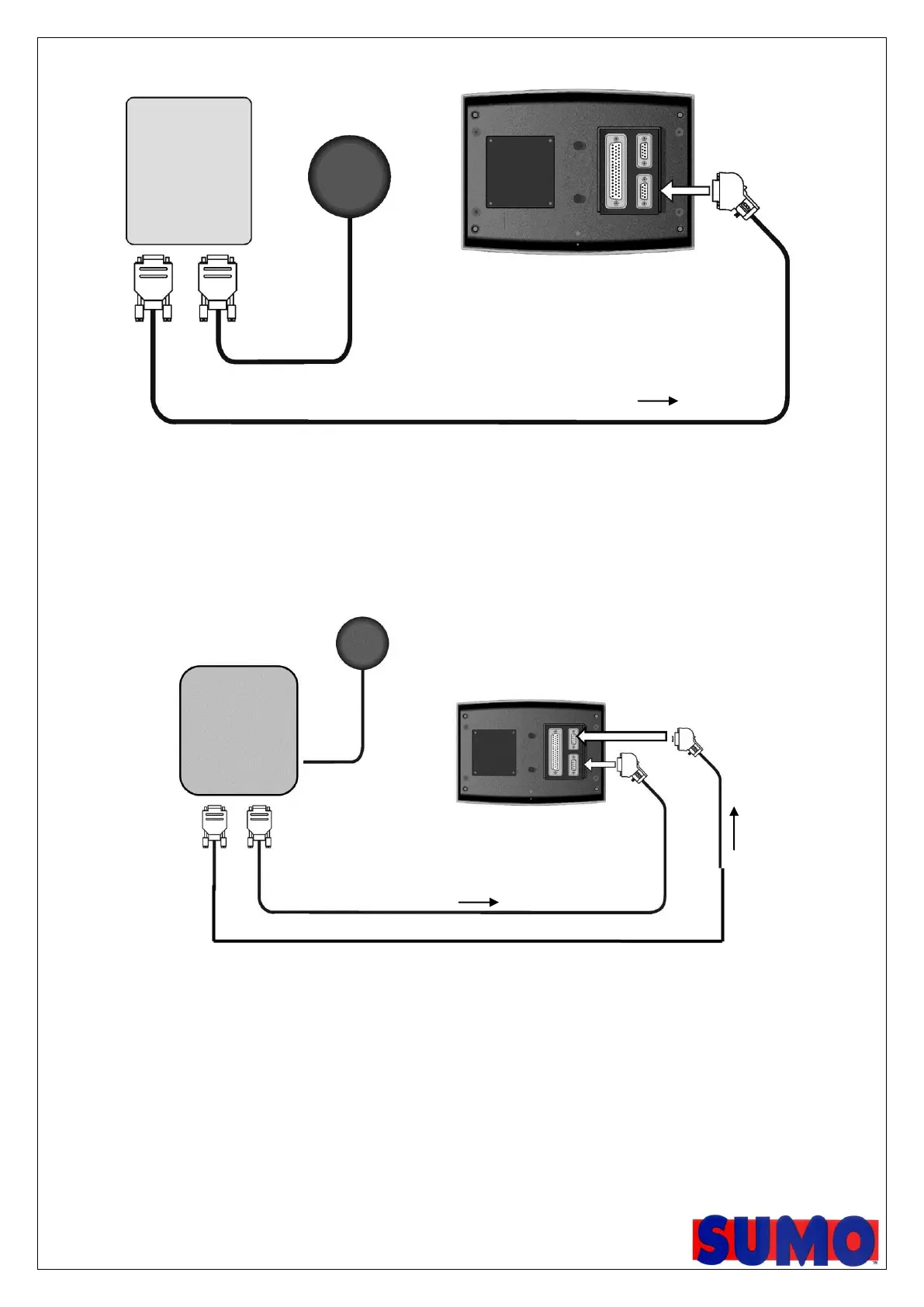

Figure 3: Typical Setup- Psi receiving rate instructions E.G Soyl Opti, John Deere Greenstar
Figure 4: Typical Setup- Psi receiving rate and GPS instructions via separate cables E.G Trimble
GPS Receiver
Rate instruction
Bottom
Port
Third-party
Controller
NOTE: Power Supply as normal via Pro-Series 50-way 'D'
connector
ERIS Custom Interface
Cable
Third-party
Controller
GPS Receiver
Rate instruction
Bottom
Port
Top
Port
GPS
Data
