Sumo DTS Series - Press Wheels

56

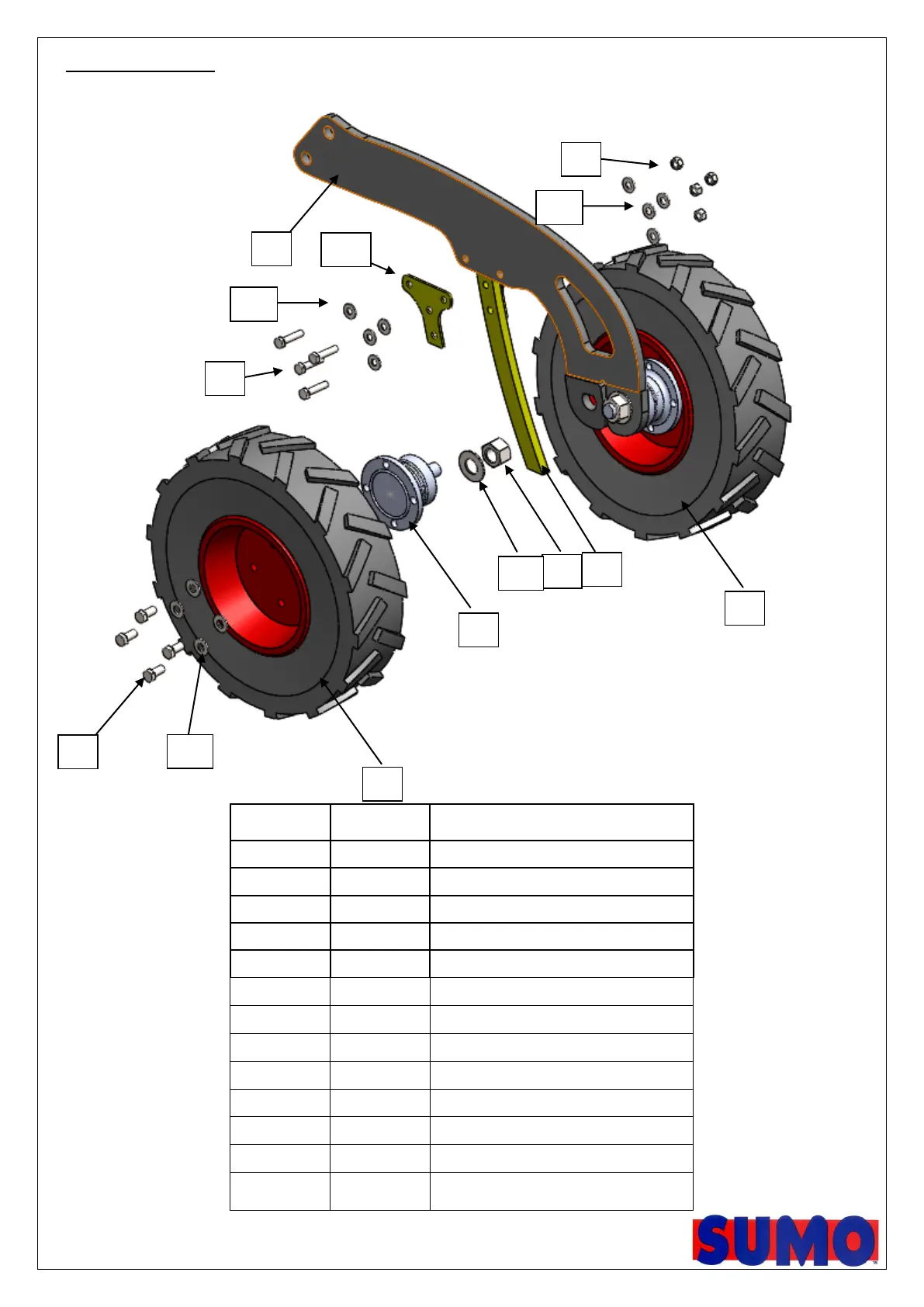

7.8 Press wheels
Item
Part No.
Description
1
SWB452L
4.00x8 wheel (tyre left hand)
2
SWB452R
4.00x8 wheel (tyre right hand)
3
SWB399
Bearing hub
4
SWM22004
M22 x 1.5 nylock nut
5
SWM1220fine
M12x1.25 x 20 bolt
6
SW1230
Middle wheel deflector
7
SW1310
DTS press wheel arm
8
SWM10040
M10 x 40 bolt
9
SWM10004
M10 Nylock nut
10
SWM10001
M10 flat washer
11
SWM12001
M12 flat washer
12
SWM22001
M22 flat washer
13
SW1402
middle press wheel deflector
mounting plate
